VECTRIX VX-2 SERVICE MANUAL
Regen Throttle Sensor Replacement
S-XC-S00079
Removal Procedure
1. Remove the upper handlebar cover. Refer to Front Console Cover Replacement B-2.
2. Remove the right handlebar end cap and hand grip. Refer to Handlebar End Cap and Hand
Grip Replacement.
3. Remove the kill switch cover screws.

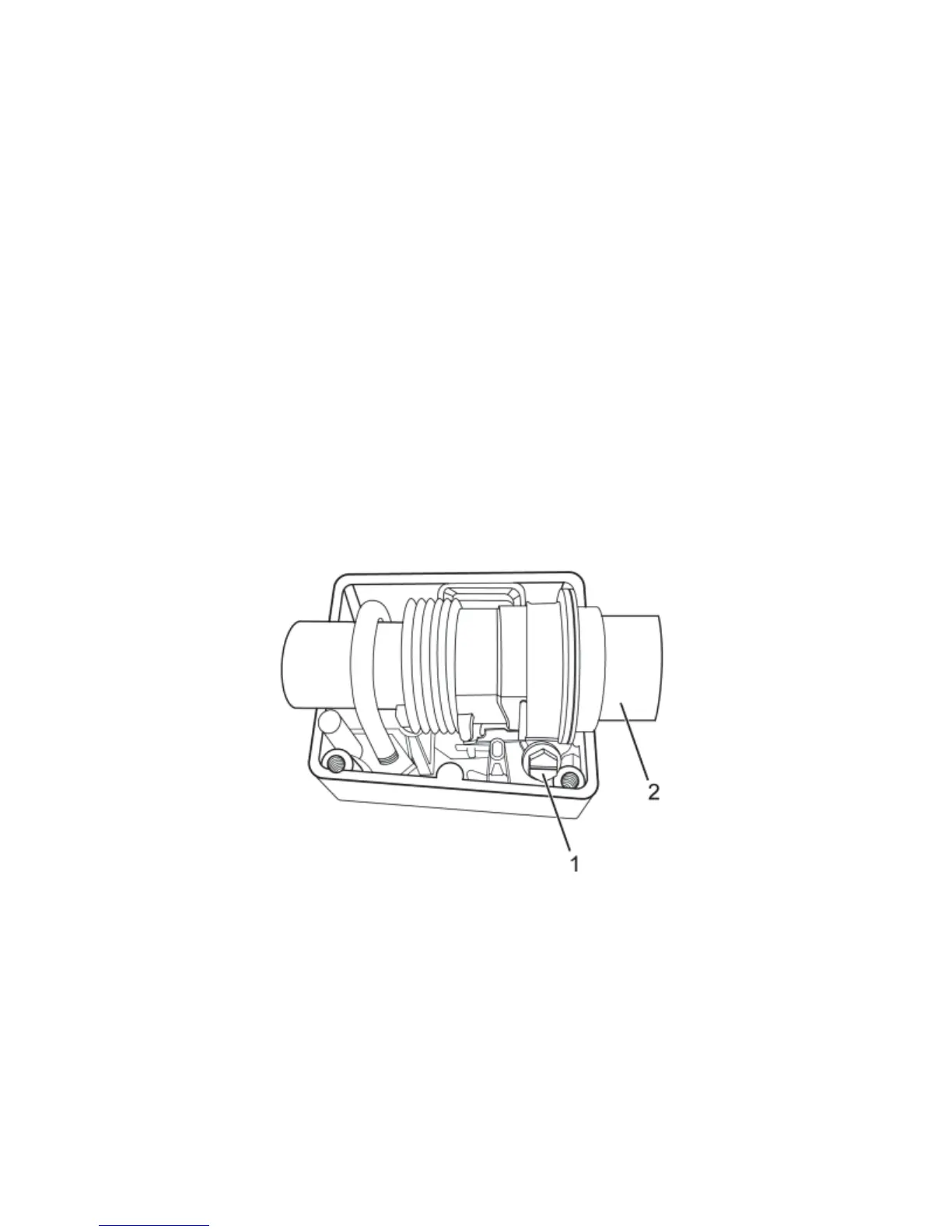

4. Twist the throttle to gain access to the throttle clamp screw (1) and loosen.
5. Remove the throttle sleeve (2) from the handlebar.
6. Loosen the Throttle set screw (1) and remove the sensor magnet (2).
Version 1.0/May 2011
VECTRIX, LLC
