VECTRIX VX-2 SERVICE MANUAL

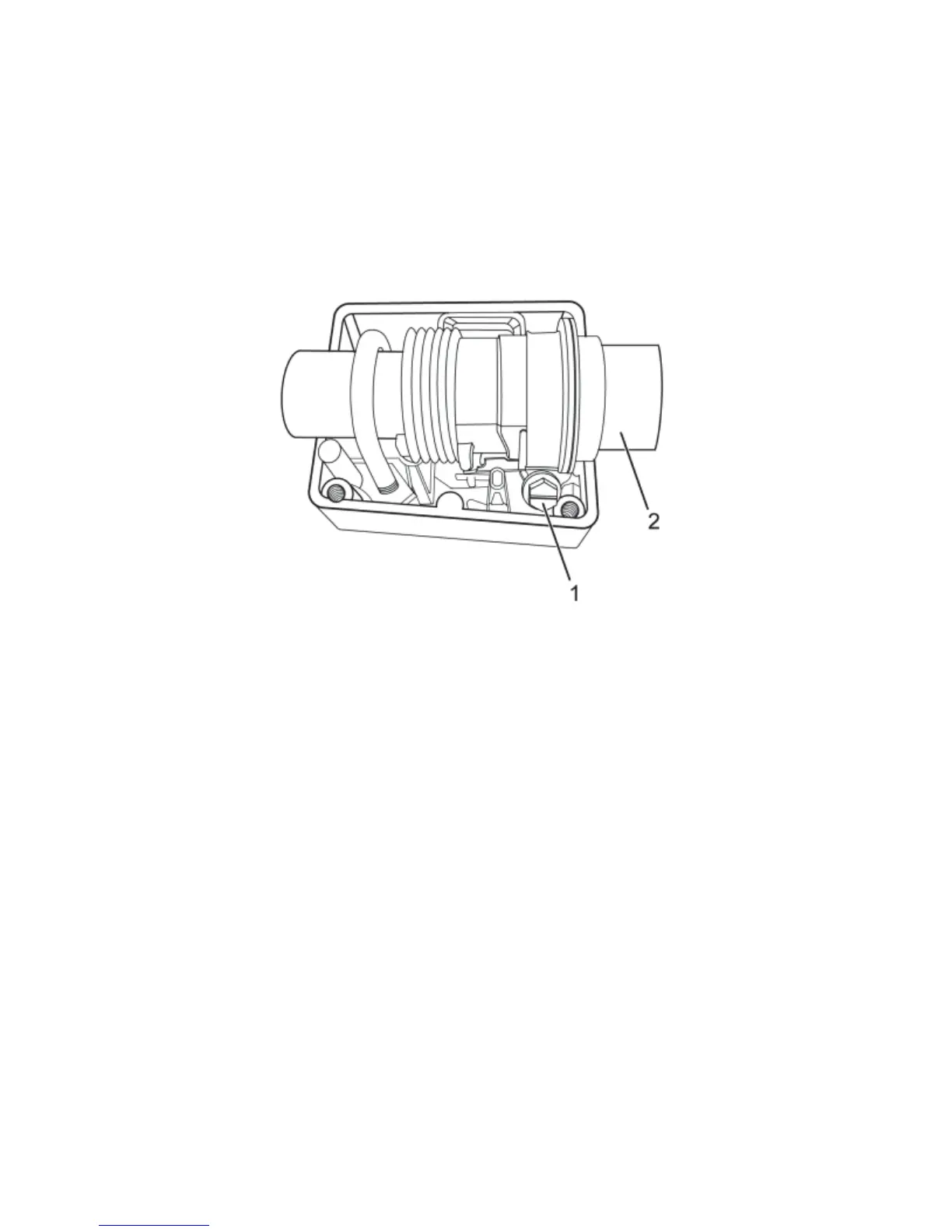

6. Twist the throttle sleeve into the full Regen position and tighten the throttle clamp screw (1).
Tighten
Throttle clamp screw 2.5 Nm (22 lb in)
7. Install the kill switch cover, and screws and tighten.
8. Verify smoother operation of the throttle.
9. Install the upper handlebar cover. Refer to Front Console Cover Replacement.
10. Install the sensor magnet and screw in until lightly seated then back out 1 full turn.
11. Check the adjustment of the Regen Throttle. Refer to Throttle Position Checking Procedure.
12. Install the right handlebar end cap and hand grip. Refer to Handlebar End Cap and Hand
Grip Replacement.
Version 1.0/May 2011
VECTRIX, LLC
