VECTRIX VX-2 SERVICE MANUAL
SECTION C-13:
REAR TURN INDICATOR LIGHT ASSEMBLY

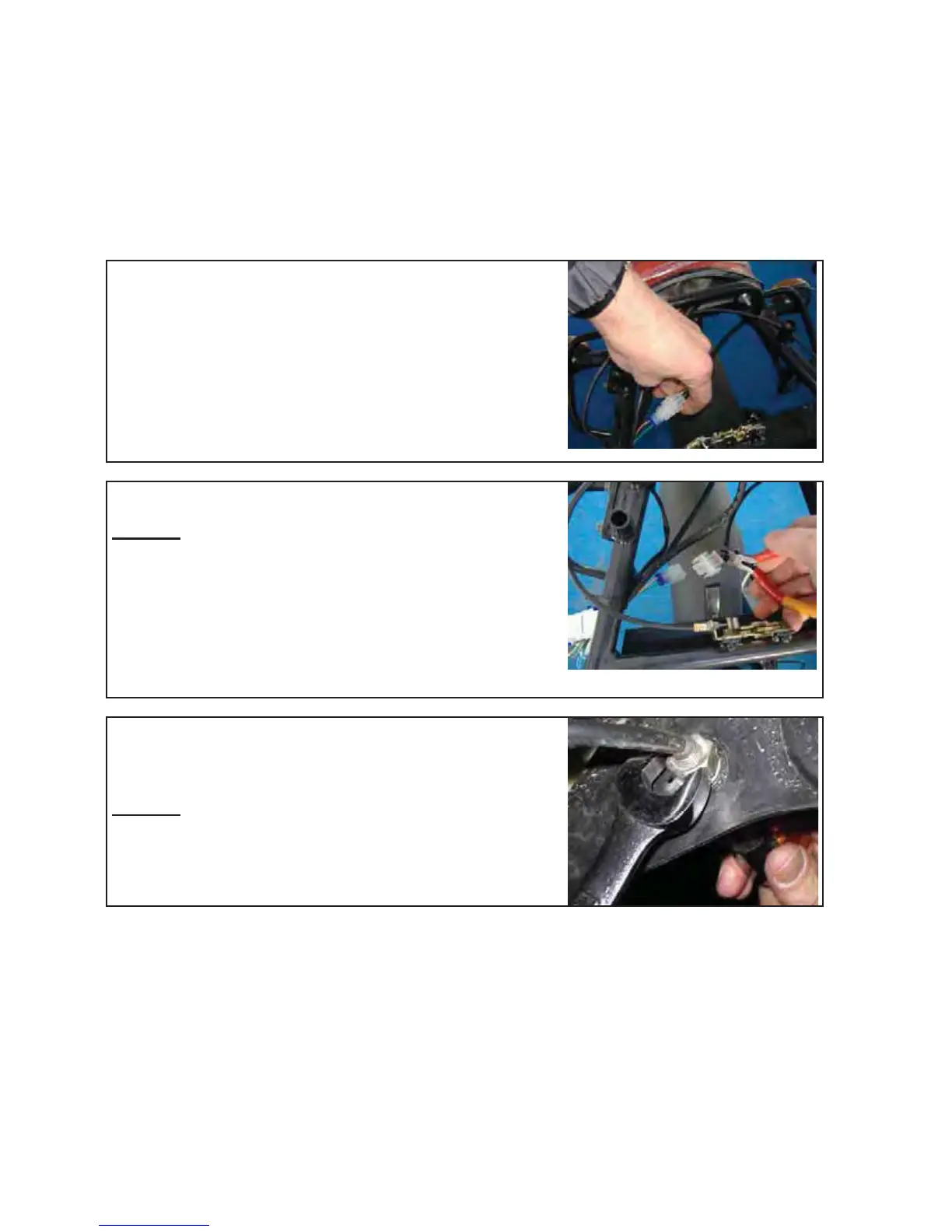

Preparations:
Disassemble Rear Fender see Section B-11
Remove all cable strips
Open 2-pin connector
Cut the cable of the Rear Indicator Light assembly
Remark:
Connector has to be cut because the
connector doesn’t fit through the hole of
the plastic
Remove the nut with an open wrench 14mm
Pull out the Rear Turn Indicator assembly
Remark:
Slightly push in the pins into the new
connector. Be sure of the right position.
Refer to the old connector
Assemble all parts in the other direction
Test functions of Rear Light Assembly
