VECTRIX VX-2 SERVICE MANUAL

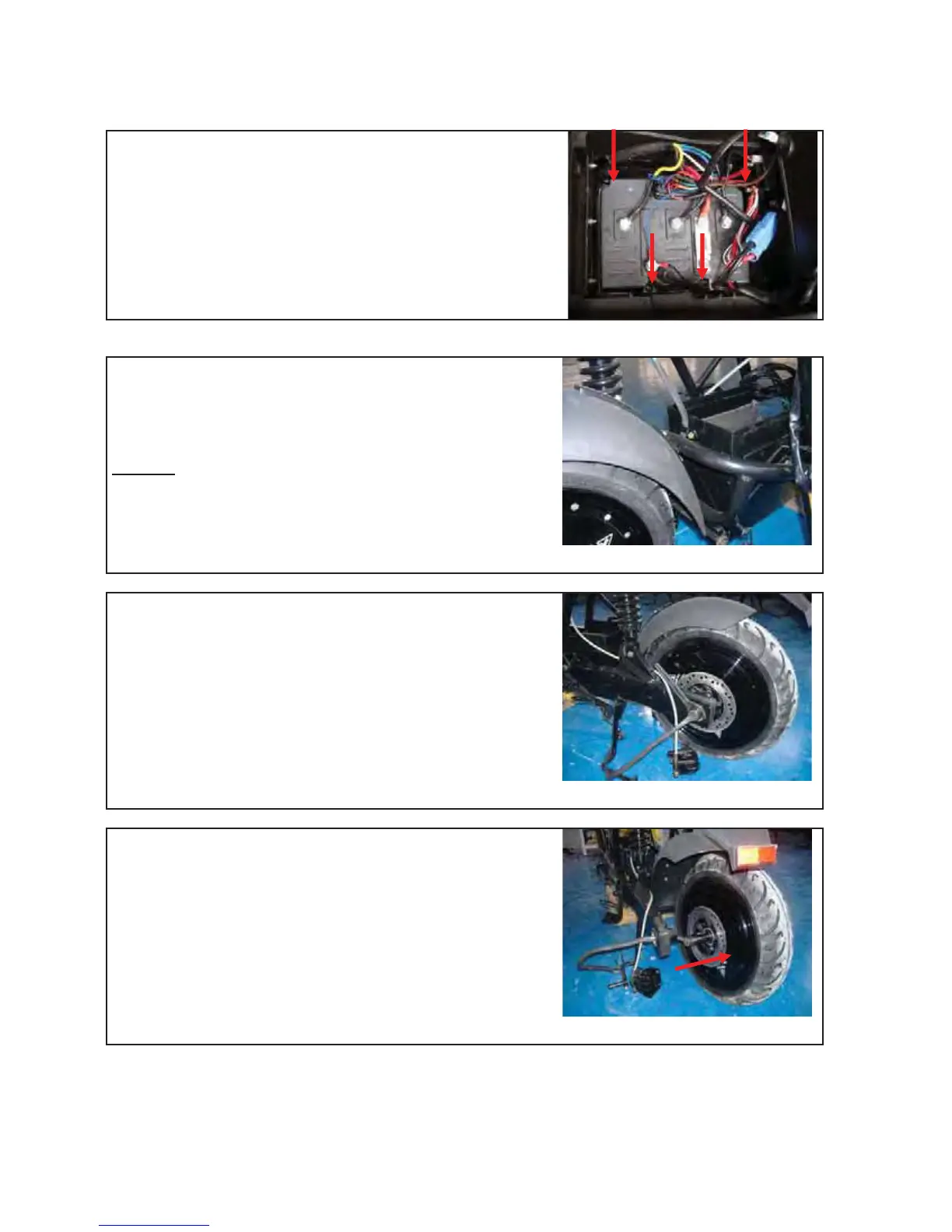

Unscrew the four Phillips bolts at the base of the Motor
Controller to remove the Motor Controller
Unscrew the hexagonal nut by using a 8mm open wrench
nd remove the cable clamp
Pull out the motor cable slightly of the electronic box
Remark
a
:
It is not necessary to remove the parts as it can be seen
on the picture
Unscrew the motor nut with a special open wrench tool or
e Vectrix EM-90400 Speciath
l spanner socket
Take out the motor in the direction of the arrow on the
icture. p
Versio
VECTRIX, LLC
n 1.0/May 2011
