Signal Timing Plans We value your opinion
Ver-Mac 2018 V-Touch TLD User's Manual – V3.2 17
o Tap Up/Down to set the distance and speed values, then Apply the
suggested time to the red clearance interval. You can also tap the number
to display a numeric keypad.
4. Set the yellow time interval.
5. Set the advance warning time interval (optional beacons).
6. Apply your timing values. You are returned to the Edit Signal Plan screen.
7. Tap the plus (+) sign to add a phase in Edit Signal Plan.
5.3.3 Step 3: Build the Sequence (Cycle) of Traffic Phases

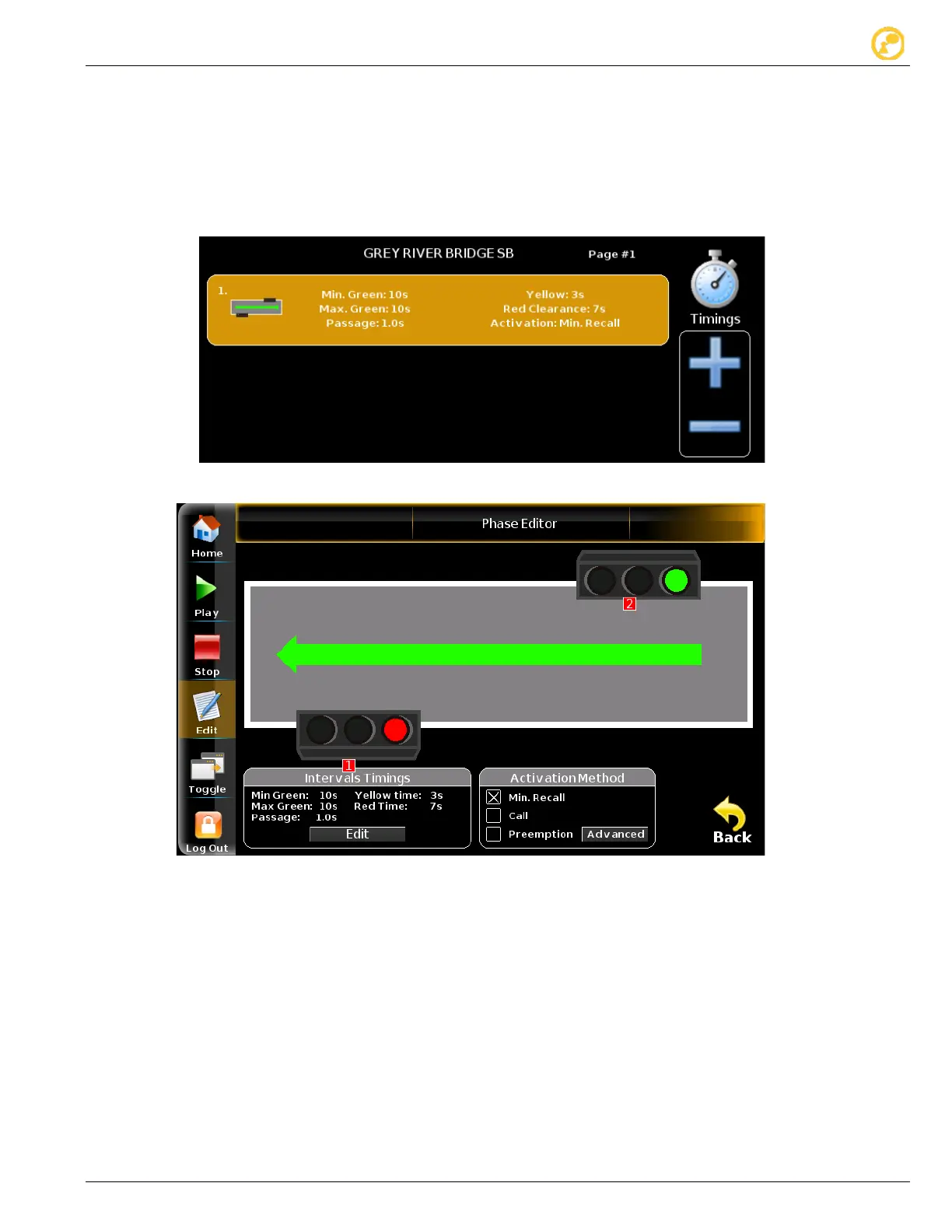

Figure 12: Phase Editor screen with timing and signalization defaults
The Traffic Phases screen opens showing the intersection layout with interactive
images of the TLDs in their positions shown in the preview area. The lower part of the
screen contains the default interval timing (red) in the Interval Timings window along
with the default phase diagram (all red) in the sequence(cycle) section and the
Activation Method section defined in another section.
1. Tap the green lamp(s) of the TLD unit(s) which are to start the sequence (cycle)
that controls the intersection.
The phase diagram at the bottom or middle of the screen changes to show the
traffic movement(s) launched by this green light/signal.
2. Tap Back in the lower right corner to go back to Edit Signal Plan.
