VERITAS NetBackup 5230 Hardware Installation Guide

Connecting 2U12 shelves to one existing 3U16 shelf
To connect an existing 3U16 storage shelf to a new 2U12 storage shelf
1

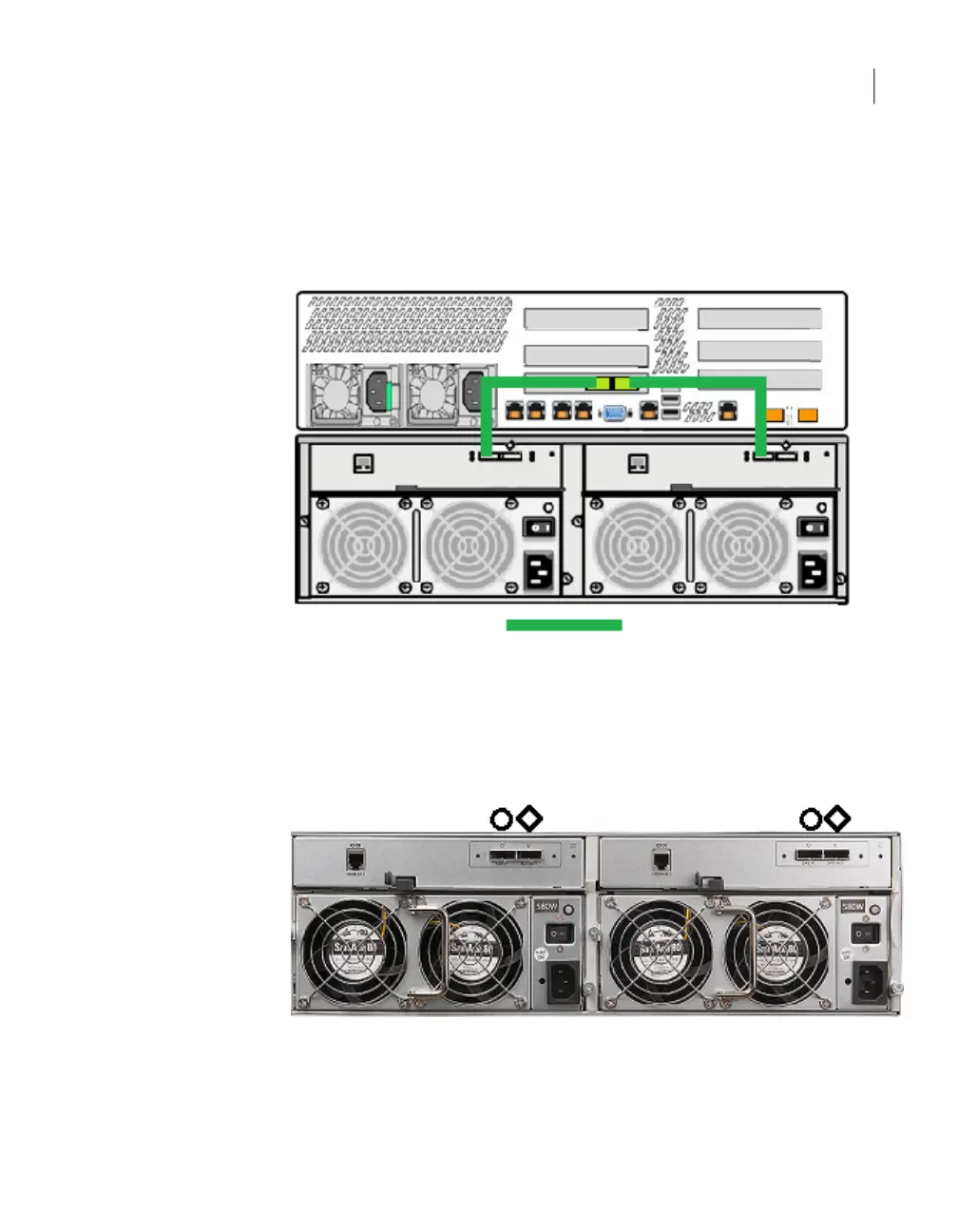

Verify that you have a NetBackup 5230 appliance and a 3U16 storage shelf
with the correct cabling as shown.
SAS2 cable
SAS2 connectors attach the appliance to the 3U16 storage shelf.
2
Obtain two SAS2-SAS3 cables.
3
Identify the SAS_OUT ports on each I/O module in the 3U16 storage shelf. A
diamond shape identifies the SAS_OUT ports.
108Adding 2U12 storage shelves to an operational NetBackup 5230 Appliance
Connecting the 2U12 shelves to an appliance or other storage shelves
