5
Align the screw holes in the rail with the snap-in cage nut that you installed in
the rack.
6
Insert M5 screws and tighten. Screws are shipped with the unit.
7
Repeat Steps 1 through 6 for the right mounting rail. Be sure that rails are
installed at the same height.
Installing the 3U16 Storage Shelf into a rack
Caution: Due to the weight of the units, Veritas recommends that storage shelves
be installed at or near the bottom of the rack.
Warning: A Storage Shelf weighs about 71.7 lbs (32.5 kg). Use appropriate
practices, techniques, and tools when handling these components.
To install the Storage Shelf into a rack
1
Verify that the guide rails are properly installed and securely fastened in the
rack.
2

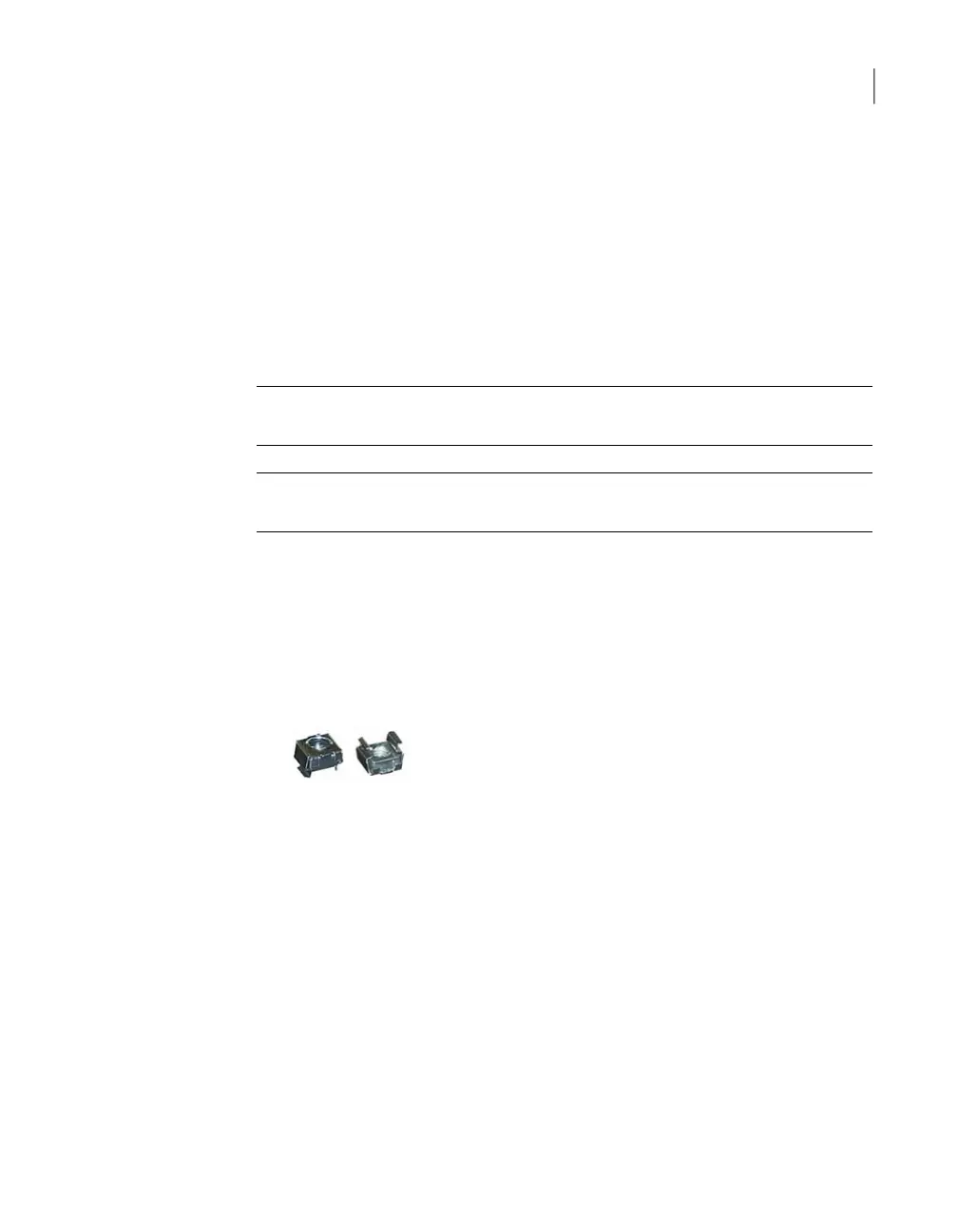

Insert snap-in cage nuts in cutouts on both sides of the front of the rack to
secure the storage shelf. The snap-in cage nuts must align with through-holes
in top third of each storage shelf when the storage shelf is installed.
3
Slide the storage shelf along the mounting rails into the rack cabinet.
4
Insert M5 screws in the through-holes in the ears of the front panel and tighten.
The through-holes must align with the snap-in cage nuts installed earlier.
See “Installing the appliance guide rails” on page 23.
Installing the appliance guide rails
Before you install the devices in a rack:
■ Determine the installation positions of the guide rails in the rack.
23Installing hardware into racks
Installing the 3U16 Storage Shelf into a rack
