Any combination of these shelves can be used, however they must be connected
in a specific order. A total of four storage shelves is supported for each NetBackup
5230 Appliance.
Refer to the Veritas NetBackup 5230 Appliance Product Description for information
about:
■ Storage capacities
■ Disk drive functions
■ I/O configurations
Appliance front panel

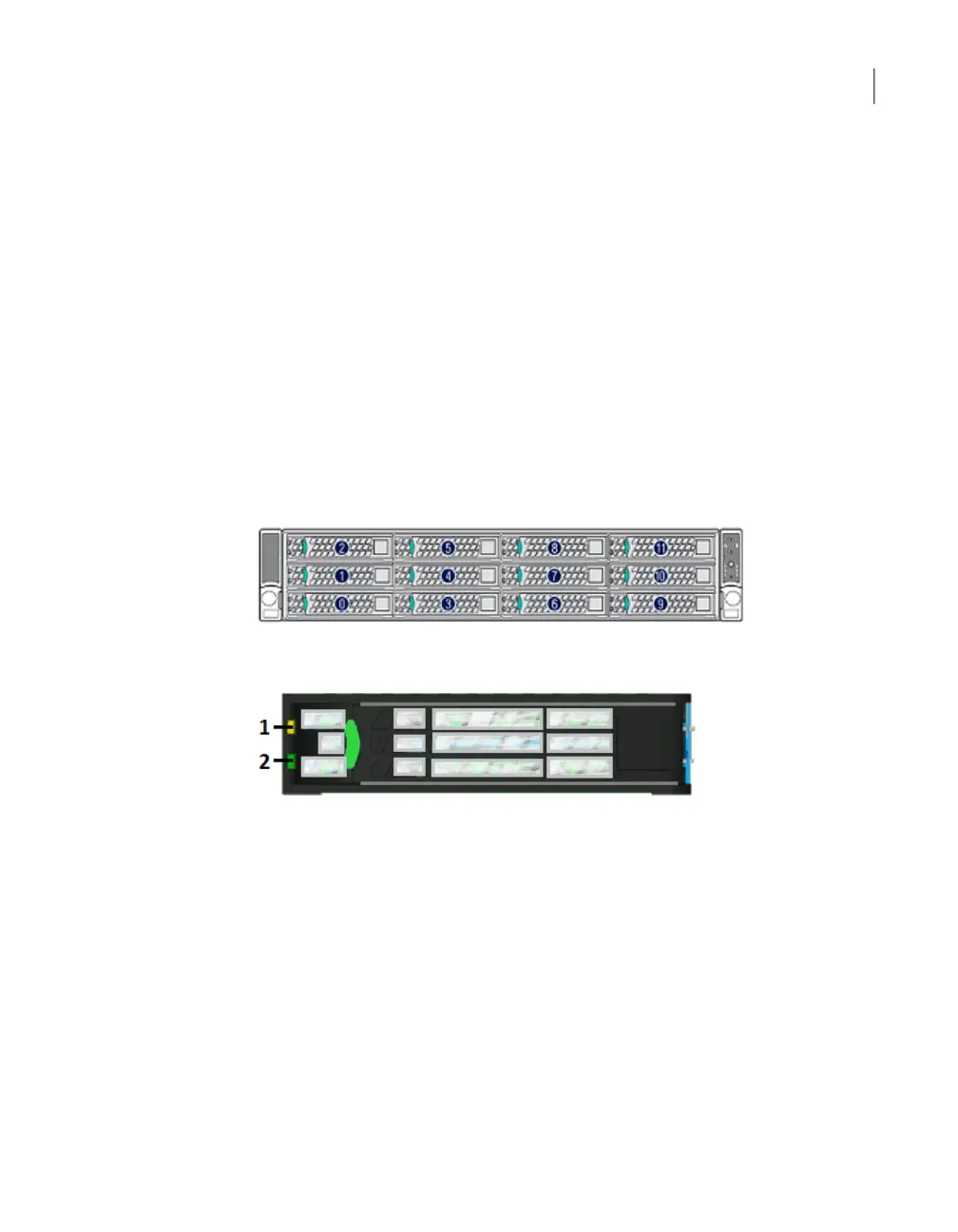

NetBackup 5230 appliances contain 12 disk slots. They are numbered from 0 to
11, starting at the lower left-hand corner.
Each hard disk drive has two LEDs which give the drive status (1) and activity (2).
A small panel is attached to the right side of the appliance. The panel contains
system function LEDs and operations buttons.
8Overview
Appliance front panel
