Refer to the following section for details about the disk LEDs and the control panel.
See “Turning on the appliance ” on page 40.

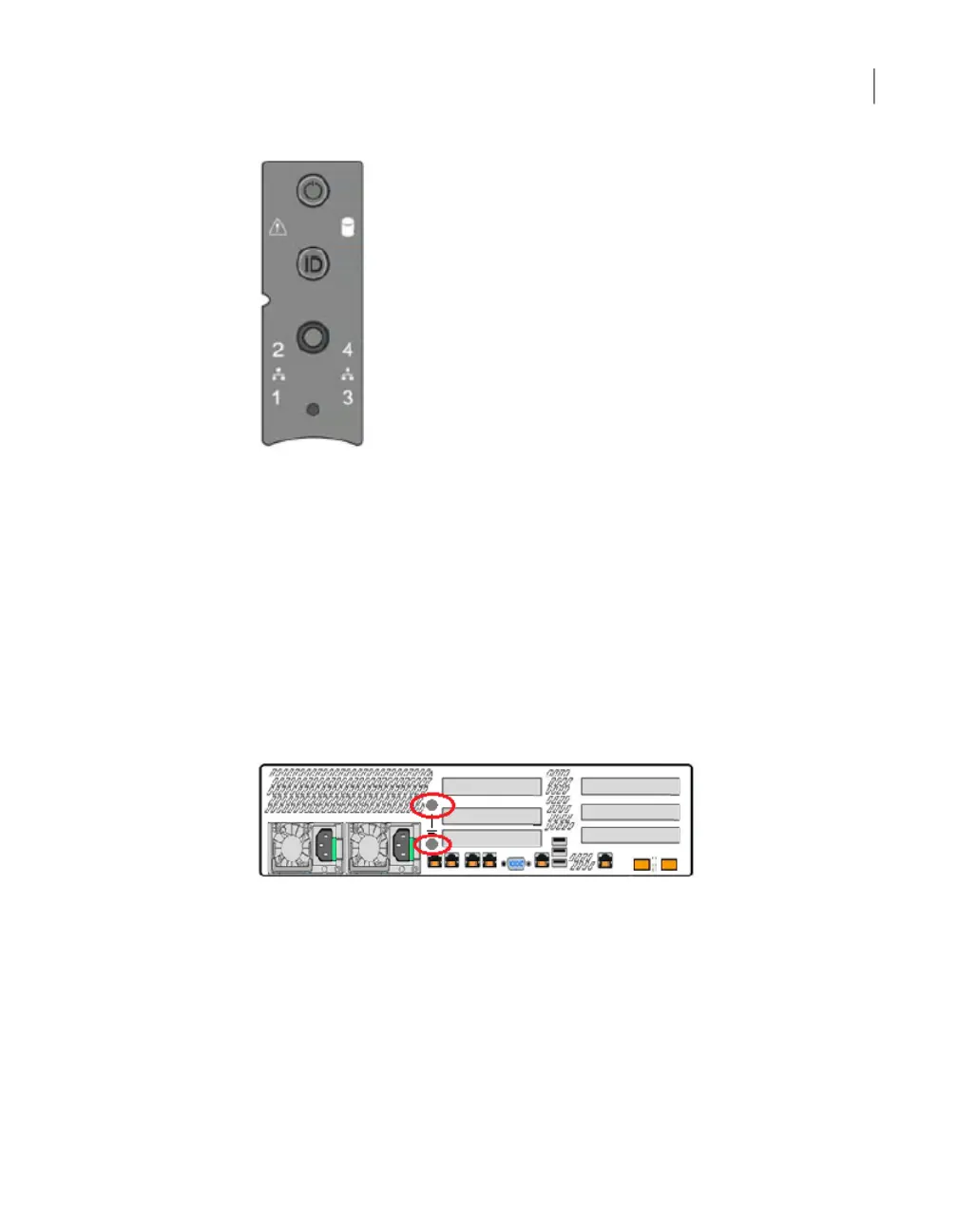

Appliance rear panel
The appliance rear panel provides access to the communication ports, PCIe add-in
cards, and the hot-swappable power supplies.
NetBackup 5230 appliances ship with grounding studs that are located on the rear
panel of the appliance. You can use standard grounding practices to connect
grounding wires to the studs.
PCIe riser assemblies and slots
Each appliance contains two PCIe riser assemblies with three slots. The risers R1
and R2 and slot numbers determine which slot a card can occupy.
9Overview
Appliance rear panel
