To install the 3U16 storage shelf guide rails
1

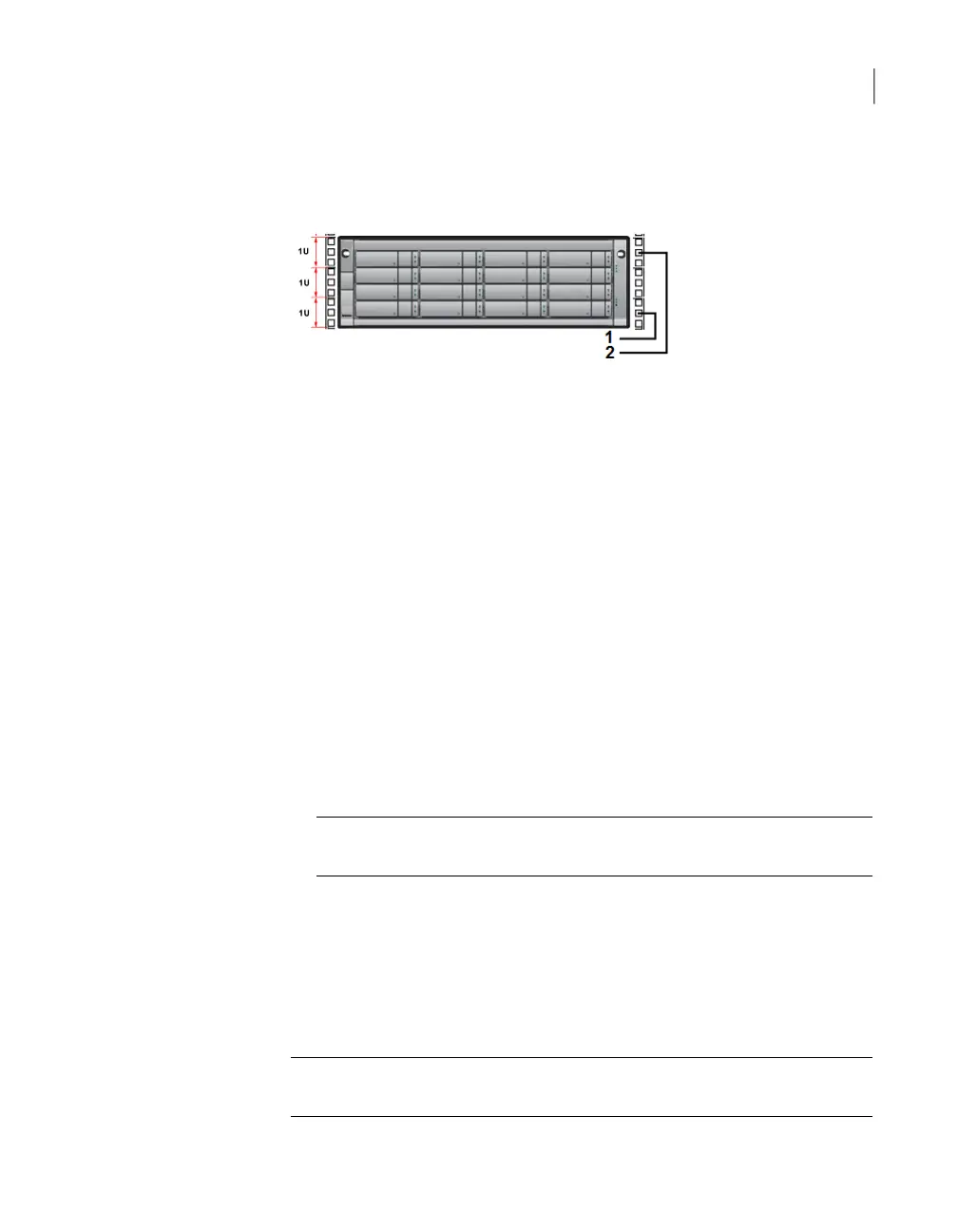

Determine the installation positions of the guide rails in the rack.
This list describes the components in the diagram.
DescriptionNumber
Location of a screw on the rear of the storage shelf handle. Insert
the screw here to connect the bottom of the rail to the rack. The
shelf sits on the ledge of the rail.
1
Location of a second screw to hold the storage shelf to the rack.2
2
Locate the left mounting rail in the box in which the 3U16 storage shelf is
shipped. The mounting plate at the front end of the rail is marked Front Left.
3
Install snap-in cage nuts in the rack as follows:
■ Locate the M5 snap-in cage nuts in the package in which the storage shelf
was sent.
■ Identify the bottom third of the 3U section in the front and back of the rack
where you want to install the storage shelf.
Note: The mounting rails are 1U high. The holes that are used to secure
the rail in the rack are in the middle of that height.
■ From the inside of the rack, insert snap-in cage nuts in cutouts in the front
and back where you want to install the mounting rail. Make sure that the
nuts are installed at the same level.
4
Orient the left mounting rail so that the lip is at the bottom and on the inside of
the rack. You can adjust the length of the rail to fit the depth of the rack.
Note: The lip on the rail that supports the 3U16 storage shelf must be on the
inside of the rack and at the bottom of the rail.
22Installing hardware into racks
Installing the 3U16 storage shelf guide rails
