VERITAS NetBackup 5230 Hardware Installation Guide

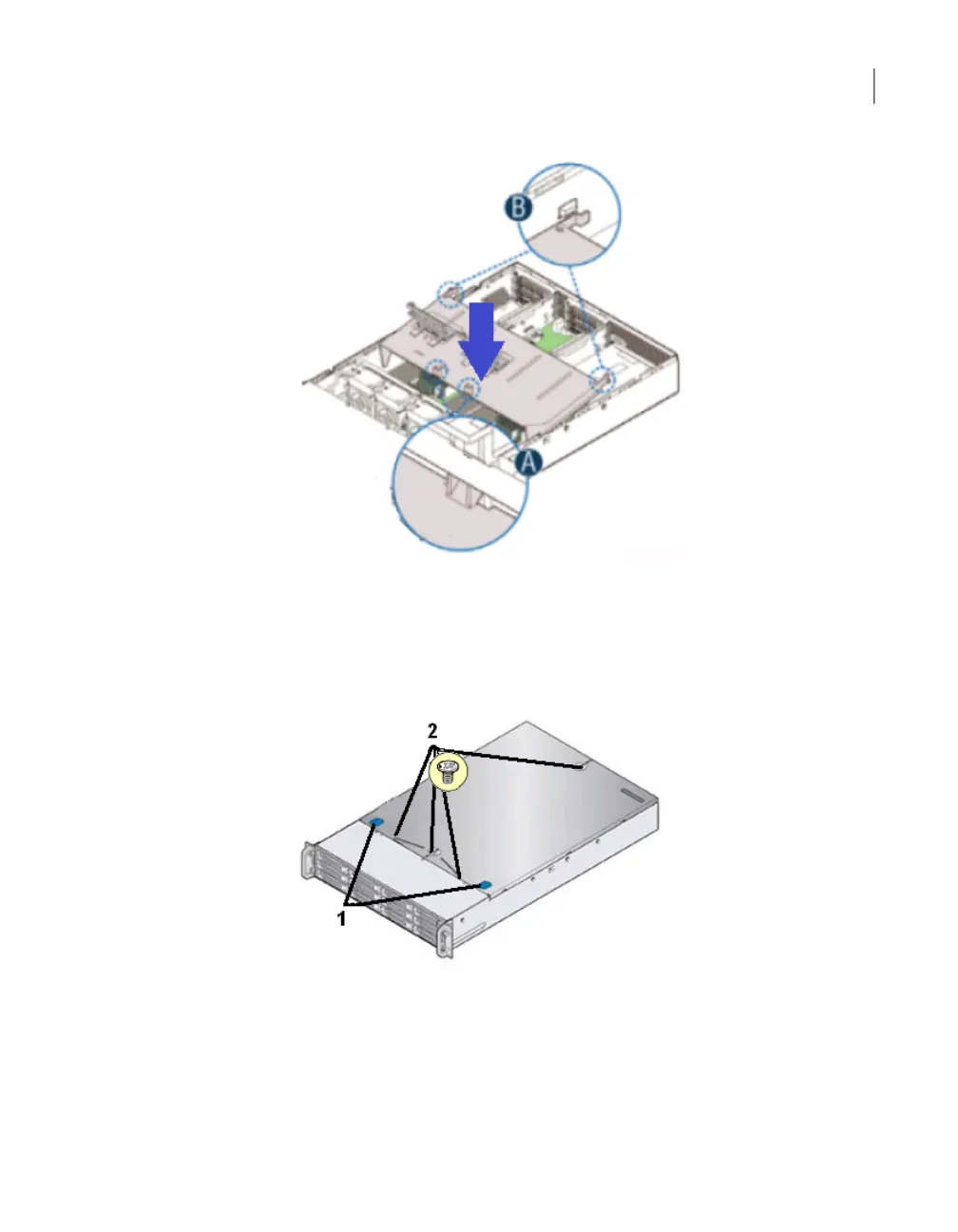

■ Align the two latches at the back of the air duct (A) behind the fans. Press
the latches in to secure them in the tabs.
■ Lower the front edge of the air duct to engage the two side tabs (B).
12
Replace the chassis cover as follows.
■ Align the cover with the edge along the top of the chassis.
■ Place the cover on the chassis so that there is about 1.5 inches of overhang.
■ Use the blue tabs (1) to slide the cover forward until the cover slides into
place.
62Adding 3U16 storage shelves to an operational NetBackup 5230 Appliance
Installing the external RAID controller card
