VERITAS NetBackup 5230 Hardware Installation Guide

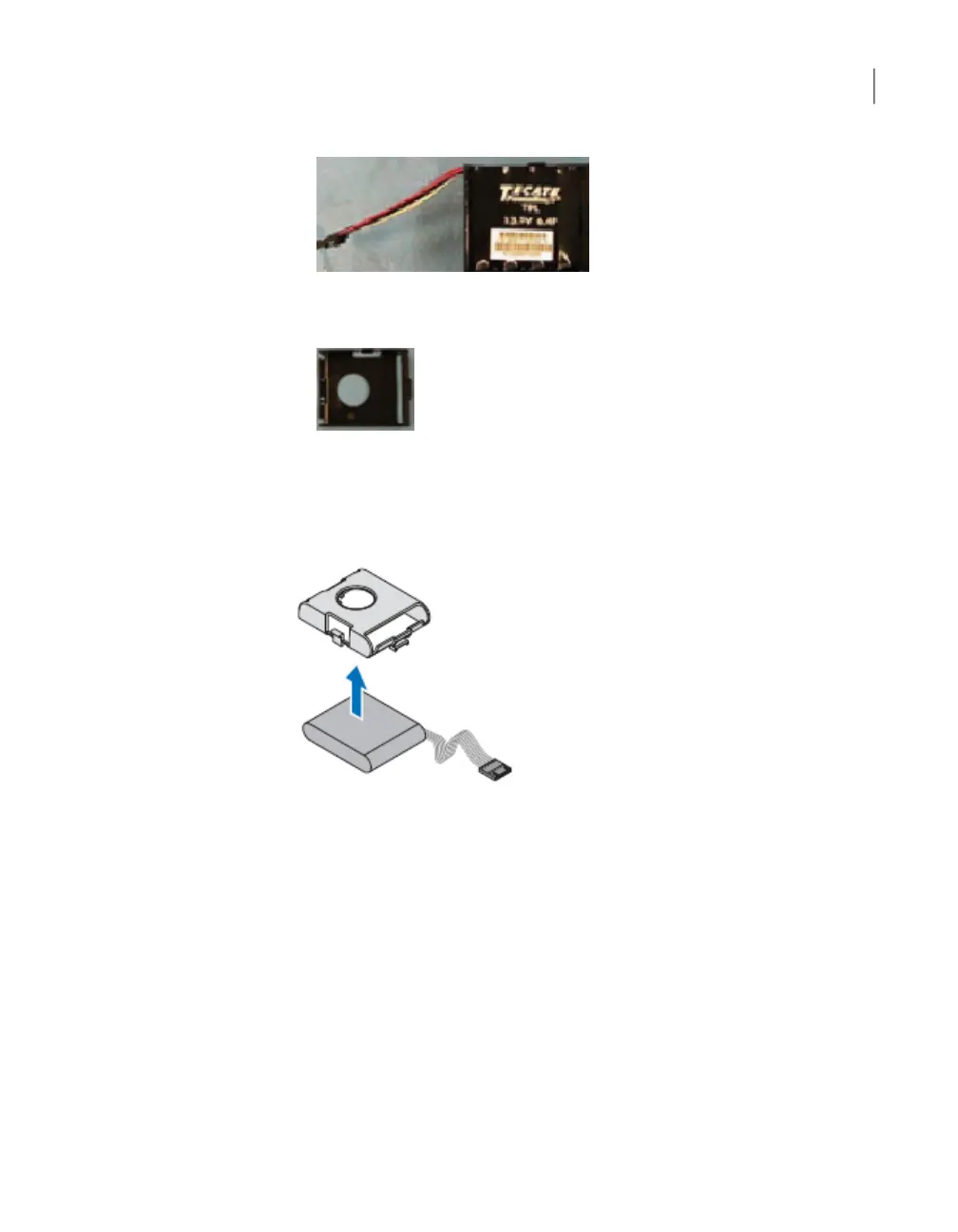

■ MFBU case
■ MFBU cable
3
Insert the MFBU into the case. Do not damage or twist the wires that are
attached to the MFBU.
4
View the appliance from the front left side.
5
Locate the fan on the left side of the chassis.
6
Remove the air baffle that is located near the fans as needed.
7
Remove the fan on the far left.
8
Attach the MFBU cable to the MFBU. The other end of the cable attaches to
the external RAID card when it is installed.
91Adding 2U12 storage shelves to an operational NetBackup 5230 Appliance
Installing the additional Maintenance Free Backup Unit (MFBU)
