Vertiv LIEBERT GXT5 Series Installer And User Guide

Figure 3.7 below, shows an example of the 10 kVA model connected as a 2 + 1 parallel system connected in a ring
configuration.
NOTE: 8 kVA models do not support paralleling at this time.
NOTE: You must use Vertiv parallel cables for the connection.
NOTE: If a fault occurs during parallel system operation, shut-off the system and make sure the cables are connected
correctly, see Figure 3.7 below.
CAUTION: Risk of improper disconnection. Can cause equipment damage. Do not disconnect parallel system
cables while the system is operating.

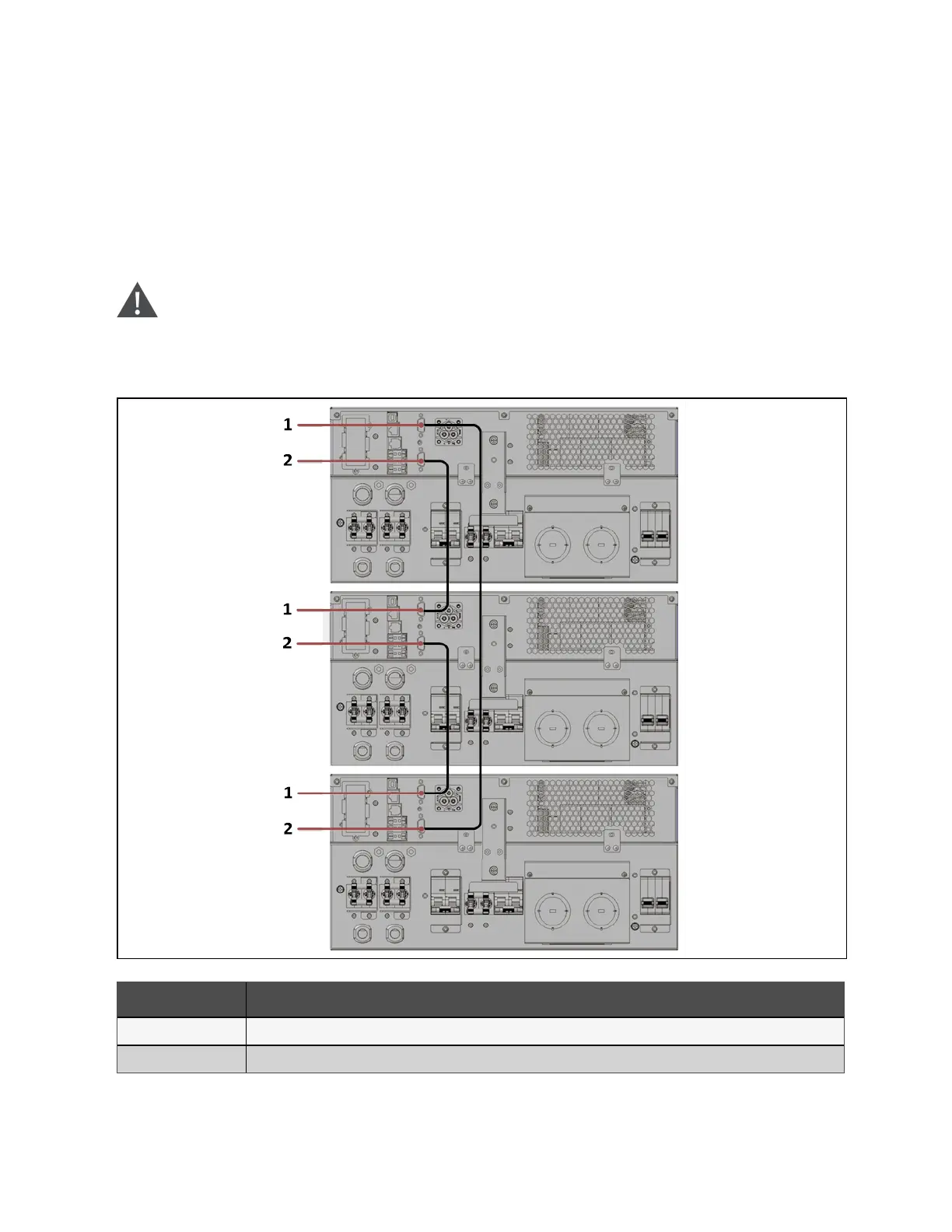

Figure 3.7 Connection of 2 + 1 Parallel System
Item Description
1 Upper connector
2 Lower connector
30 Proprietary and Confidential ©2024 Vertiv Group Corp. 3 Installation
Vertiv™ Liebert® GXT5 UPS Installer/User Guide

Vertiv LIEBERT GXT5 Series Specifications

General

Model	LIEBERT GXT5 Series
Product Type	UPS
Topology	Double Conversion Online
Display	LCD
Form Factor	Tower, Rackmount
Output Voltage	200/208/220/230/240 VAC
Output Frequency	50/60Hz ±0.1Hz (battery mode)
Typical Backup Time	Varies by model and load
Communication Ports	USB, RS-232
Operating Temperature	0°C to 40°C (32°F to 104°F)
Relative Humidity	0% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Certifications	UL, cUL, CE, RoHS
Battery Type	Valve Regulated Lead Acid (VRLA)
