39
Vertiv I Liebert LPC I User Manual

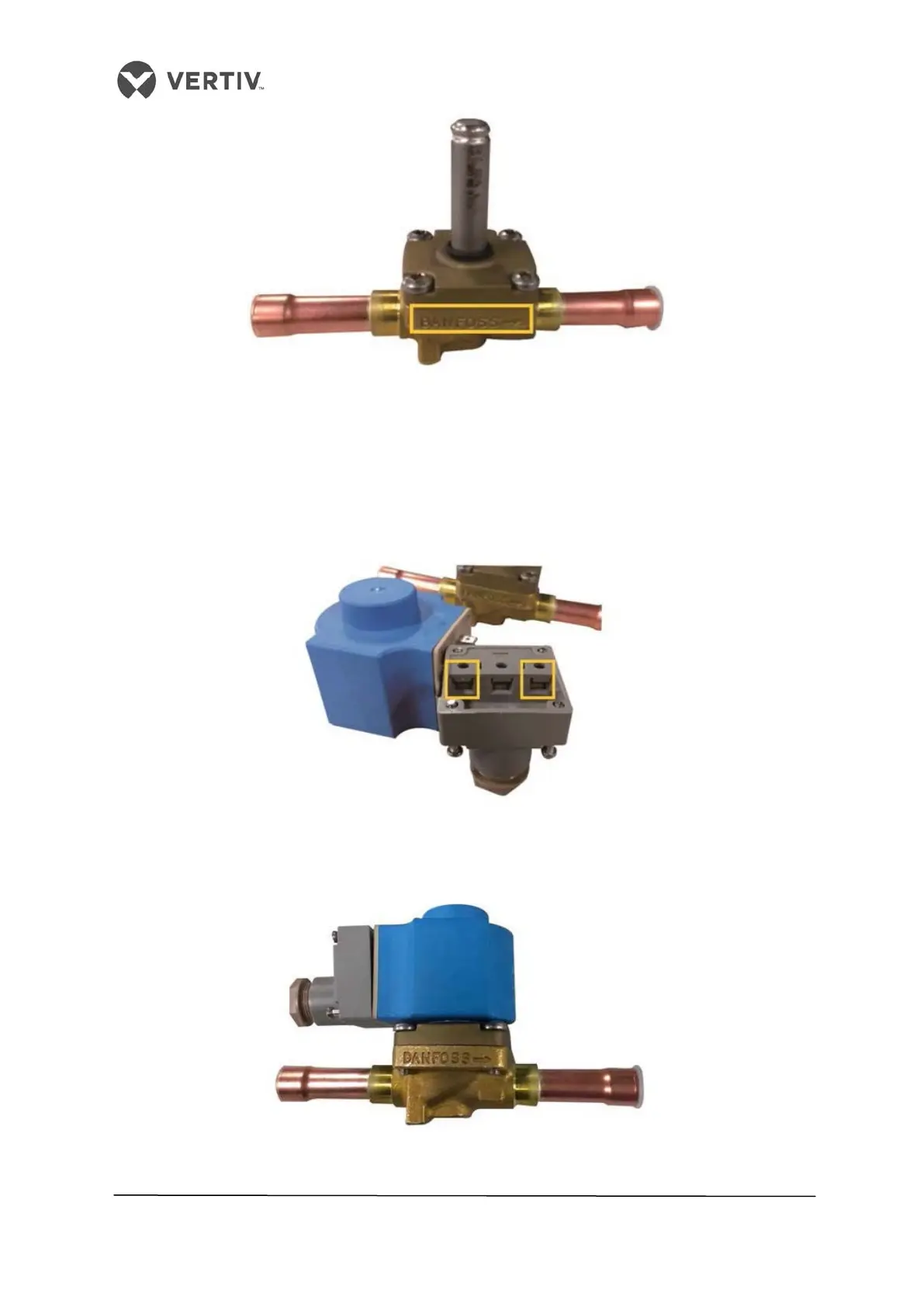

Figure 2-22 Installing the Solenoid valve horizontally
3. After welding, install the coil and remove the cover of the wiring terminals. Direct the
cable through the cable hole on the cover and plug the two terminals and reinstall the
cover.
Figure 2-23 shows the process of connecting the cables of the solenoid valve in a liquid pipe:
Figure 2-23 Connecting the cables of the Solenoid valve
4. Finally, clip the coil of the valve body, press the coil tightly to ensure complete
contact between the coil and valve body as displayed in Figure 2-24.
Figure 2-24 Fixing the coil
