Electrical INSTALLATION Liebert Trinergy™ Cube
Installation Manual - 10H52243IM60 - rev. 7 - 06/2020 Page 107
4.10. Connections between battery compartments and UPS
The cables for connecting the UPS to the battery cabinets are not supplied. They can be provided by the
manufacturer upon special request.
A battery area temperature interface (RBI) is supplied as standard equipment and includes a connecting
RJ cable with a length of 30 meters.
The RBI has to be connected to CIB XP2 in the connectivity panel (see Fig. 109 on page 107 for reference
only).
The system has only one RBI and its cable as standard. For the installation and use of any additional RBI
required depending on the configuration of the batteries, refer to Fig. 6.5 on page 124.

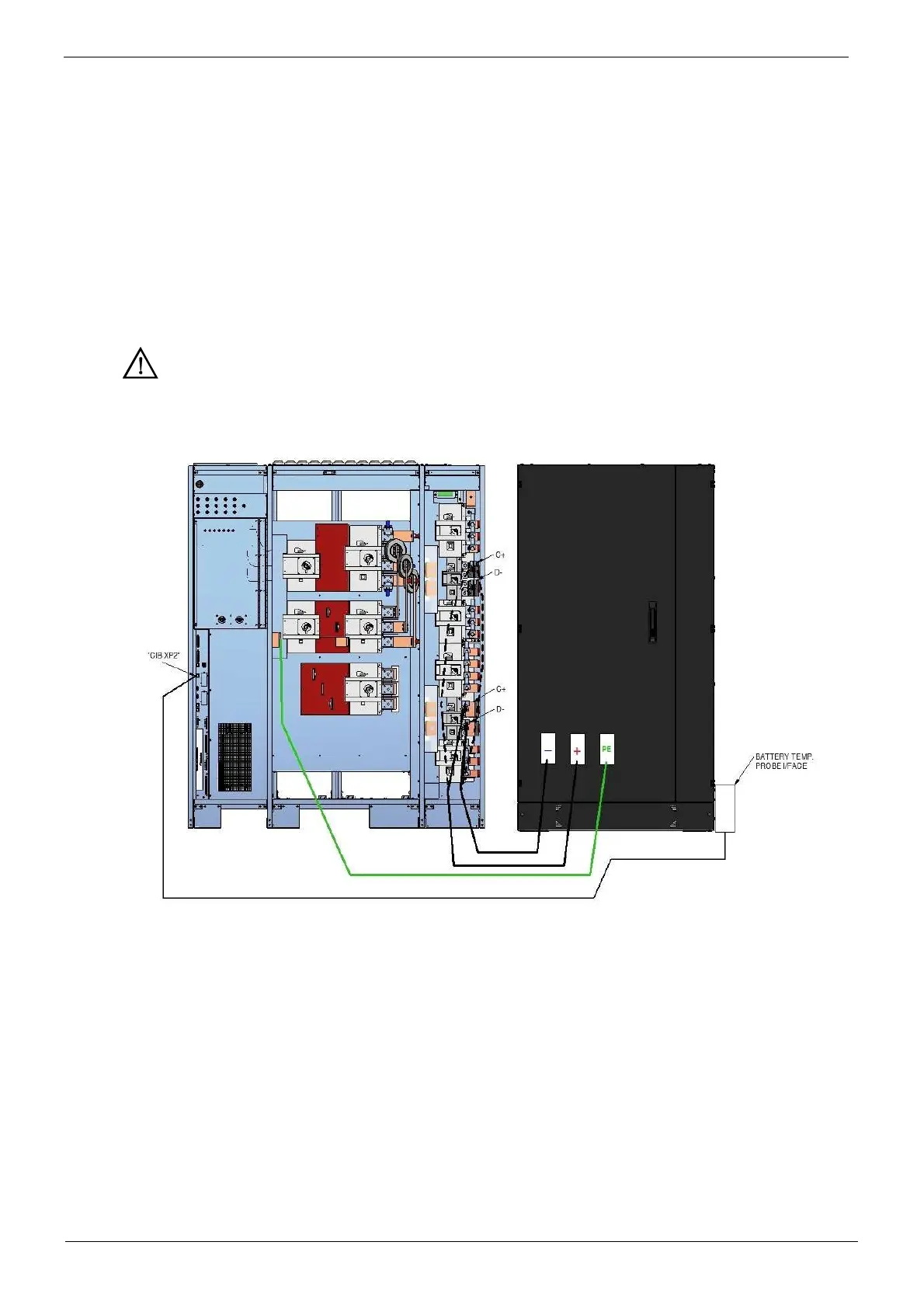

Figure 109 - EXTERNAL BATTERY CONNECTIONS
Warning
Before the system starts, make sure that UPS battery connection polarity is correct.
Wrong connections can damage the system and endanger operator safety.
