4.7.1. Power connections (CORE and I/O BOX)
In the case of connection of two CORES, the installer must wire the first and the second subsequently.
The power connections (see Fig. 90 on page 86 and Fig. 91 on page 87) on the front of the CORE
disconnector are :
• U, V, W - LINE POWER INPUT
• N - NEUTRAL BAR (CONNECTION POINT FOR PRIMARY LINE POWER, BYPASS LINE POWER
AND OUTPUT LOAD NEUTRALS)
• U2, V2, W2 - UPS OUTPUT TO LOAD
• D-, C+ - BATTERY TERMINALS

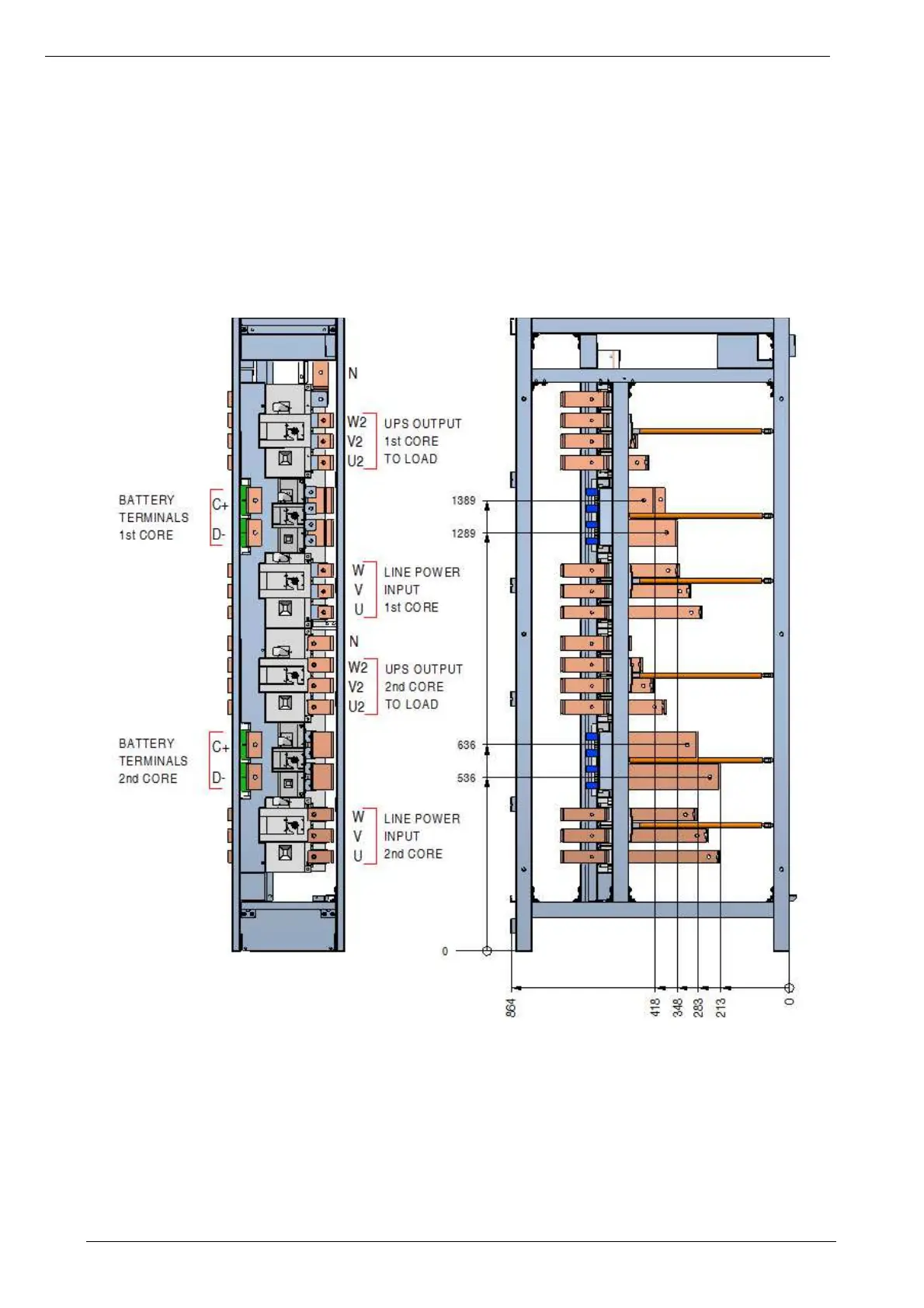

Figure 90 - POWER CONNECTIONS - RIGHT HAND CORE DISCONNECTOR
