MECHANICAL INSTALLATION Liebert Trinergy™ Cube
Installation Manual - 10H52243IM60 - rev. 7 - 06/2020 Page 51
2.11.2. I/O BOX 2400A with the CORES assembly procedure (RIGHT/LEFT SIDE CORE)
1) Remove the CORE from the pallet by removing the special mounting screws (see Fig. 44 - on page
48).
2) Remove the right panel in the I/O BOX.

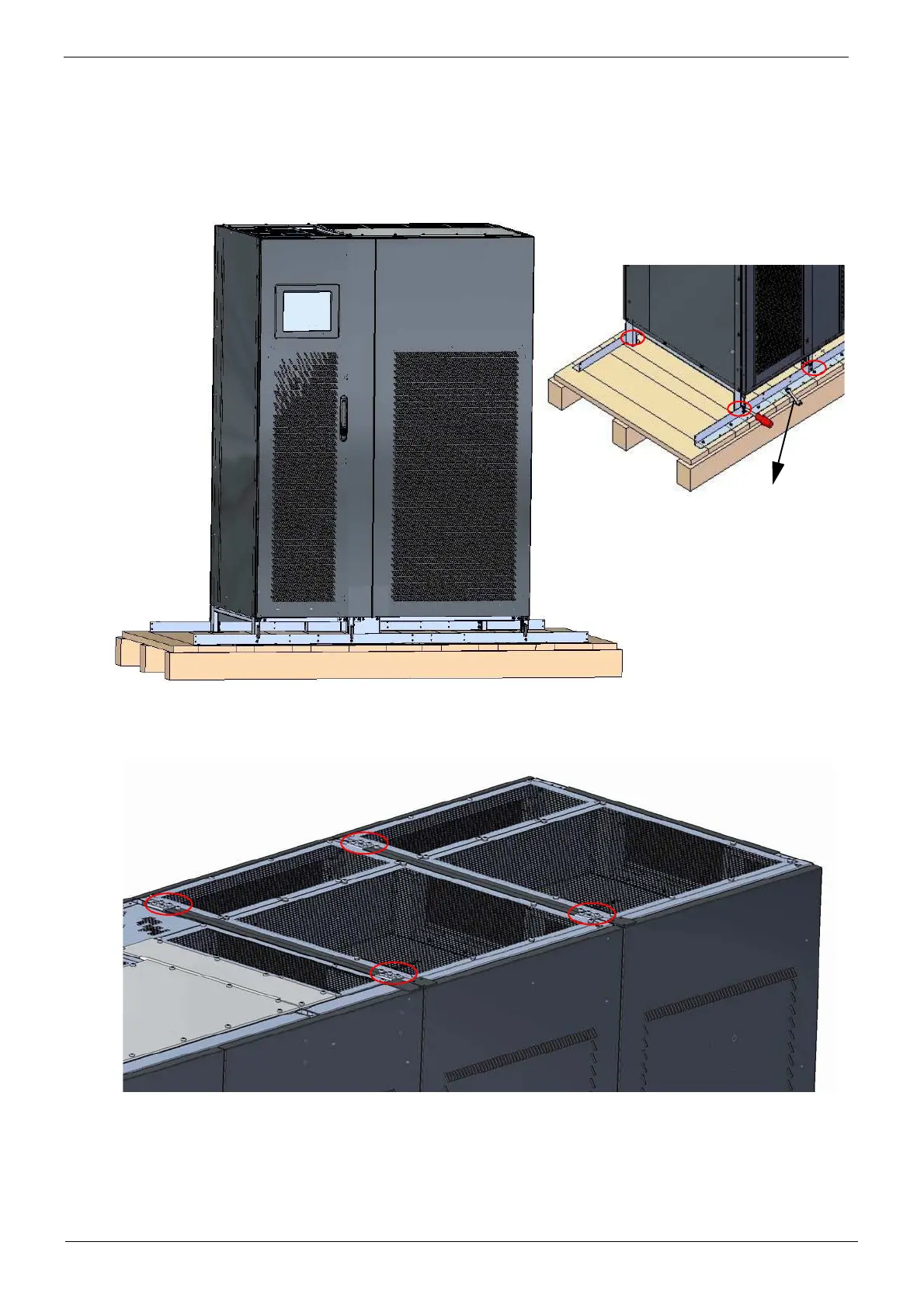

Figure 50 - UNPACKING - I/O BOX 2400A
3) Connection of the RIGHT CORES to I/O BOX
Figure 51 - Connections I/O BOX 2400A and CORES
(RIGHT SIDE - FRONT VIEW TOP)
wrench 10mm
