Liebert Trinergy™ Cube MECHANICAL INSTALLATION
Page 42 Installation Manual - 10H52243IM60 - rev. 7 - 06/2020
2.10. Physical appearance
Legend:
• QS1 = PRIMARY MAINS INPUT SWITCH
• QS2 = BYPASS RESERVE INPUT SWITCH
• QS3 = MAINTENANCE BYPASS SWITCH
• QS4 = OUTPUT SWITCH
• QS44 = STATIC OUTPUT BYPASS SWITCH
• QS1_X = PRIMARY MAINS INPUT SWITCH (CORE DISCONNECTOR)
• QS4_X = OUTPUT SWITCH (CORE DISCONNECTOR)
• QS9_X = BATTERY SWITCH (CORE DISCONNECTOR)

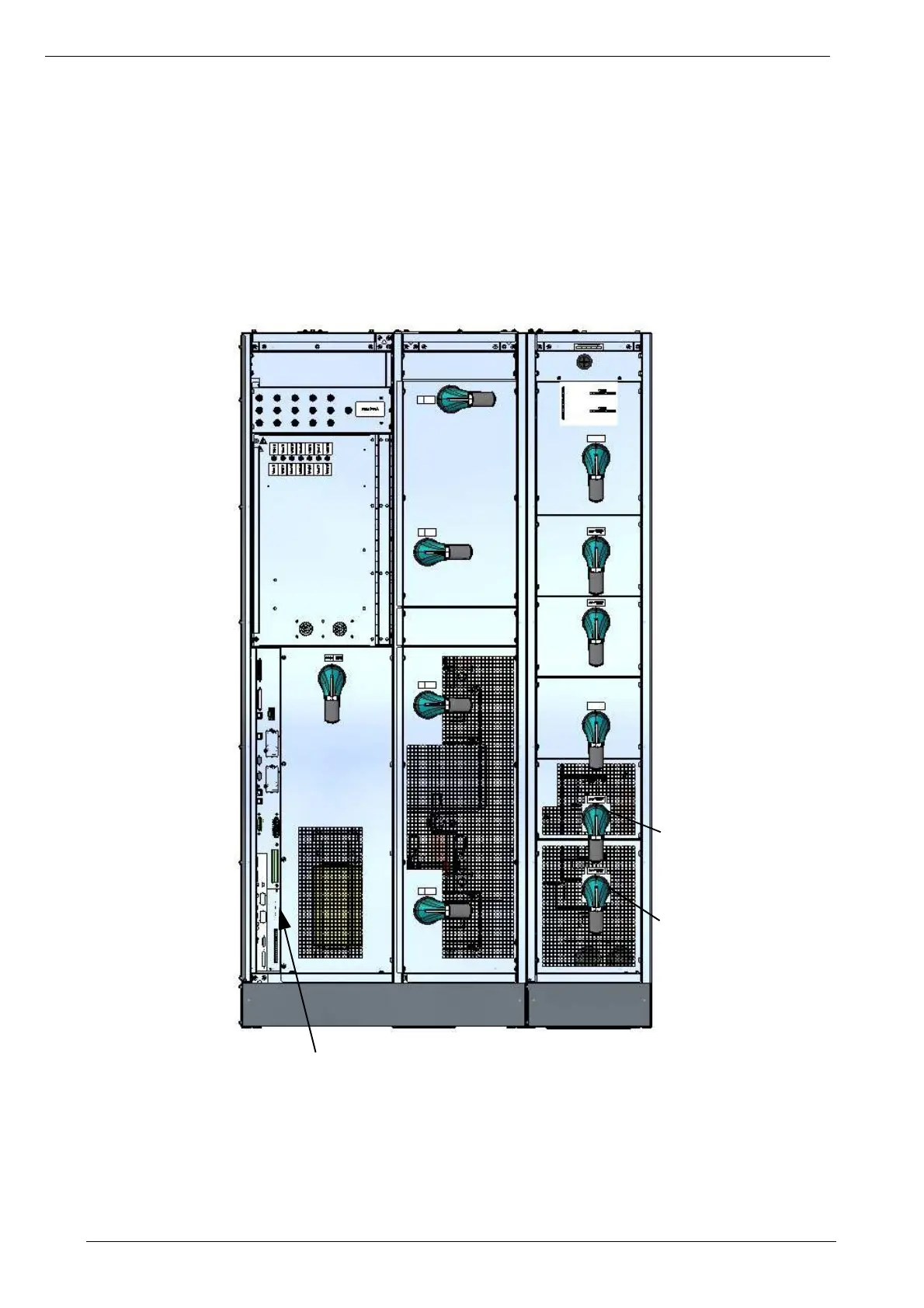

Figure 39 - Liebert Trinergy
TM
Cube 600A - FRONT VIEW WITH CORE DISCONNECTOR RIGHT
Connectivity panel
QS4
QS3
QS1
QS44
QS2
QS9_1
QS9_2
QS4_1
QS1_1
QS4_2
QS1_2
