Liebert Trinergy™ Cube connectivity
Page 116 Installation Manual - 10H52243IM60 - rev. 7 - 06/2020
5.2. Customer signal wiring
Liebert Trinergy
TM
Cube is equipped with the following interfaces:
• XP19A/B - 25-pole connectors for parallel connections (B2B board);
• XP3 - RJ-45 interface for synchronization with external MBSM or Syncrolite;
• XP29 - 3-pole screw connector for backfeed output contact;
• XP60 - Slot for LIFE
TM
modem;
• XP61 - Slot for connectivity products (used for future applications);
• XP2 - RJ-45 connection with battery interface board (CIB board);
• XP3A - Serial interface for service (CIB board);
• XP6 - Serial interface for external LIFE
TM
(CIB board);
• XP10A - RJ45 connected to MUN Ethernet 1 (CIB board). Initially not enabled.
Once security protection is activated, will be used for LIFE
TM
over IP connection;
• XP14 - RJ-45 Ethernet interface for service and commissioning only (CIB board);
• XP10 - EPO connector;
• XP11 - Input connector (I/O board);
• XP12 - Output connector (I/O board);
• VL1-VL2 - LEDs for XP10 - EPO;
• VL3-VL10 - LEDs for XP11 - I/O board.

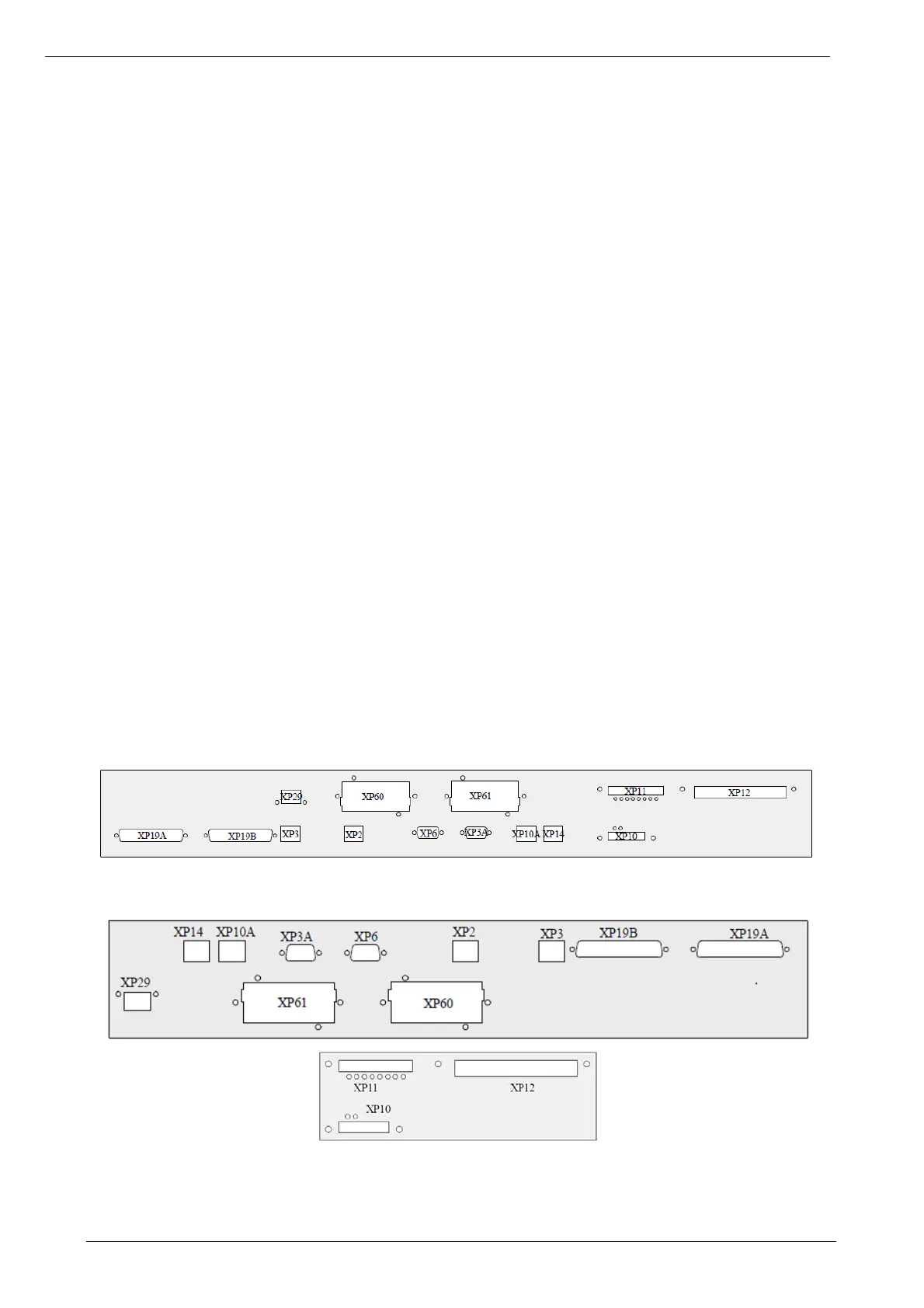

Figure 118 - I/O BOX 600-1200-2400A - Label connectivity panel
Figure 119 - I/O BOX 3000A - Label connectivity panel
