connectivity Liebert Trinergy™ Cube
Installation Manual - 10H52243IM60 - rev. 7 - 06/2020 Page 115
For reference purposes, two different systems are shown in this manual. For all other possible
configurations, please contact the technical support.

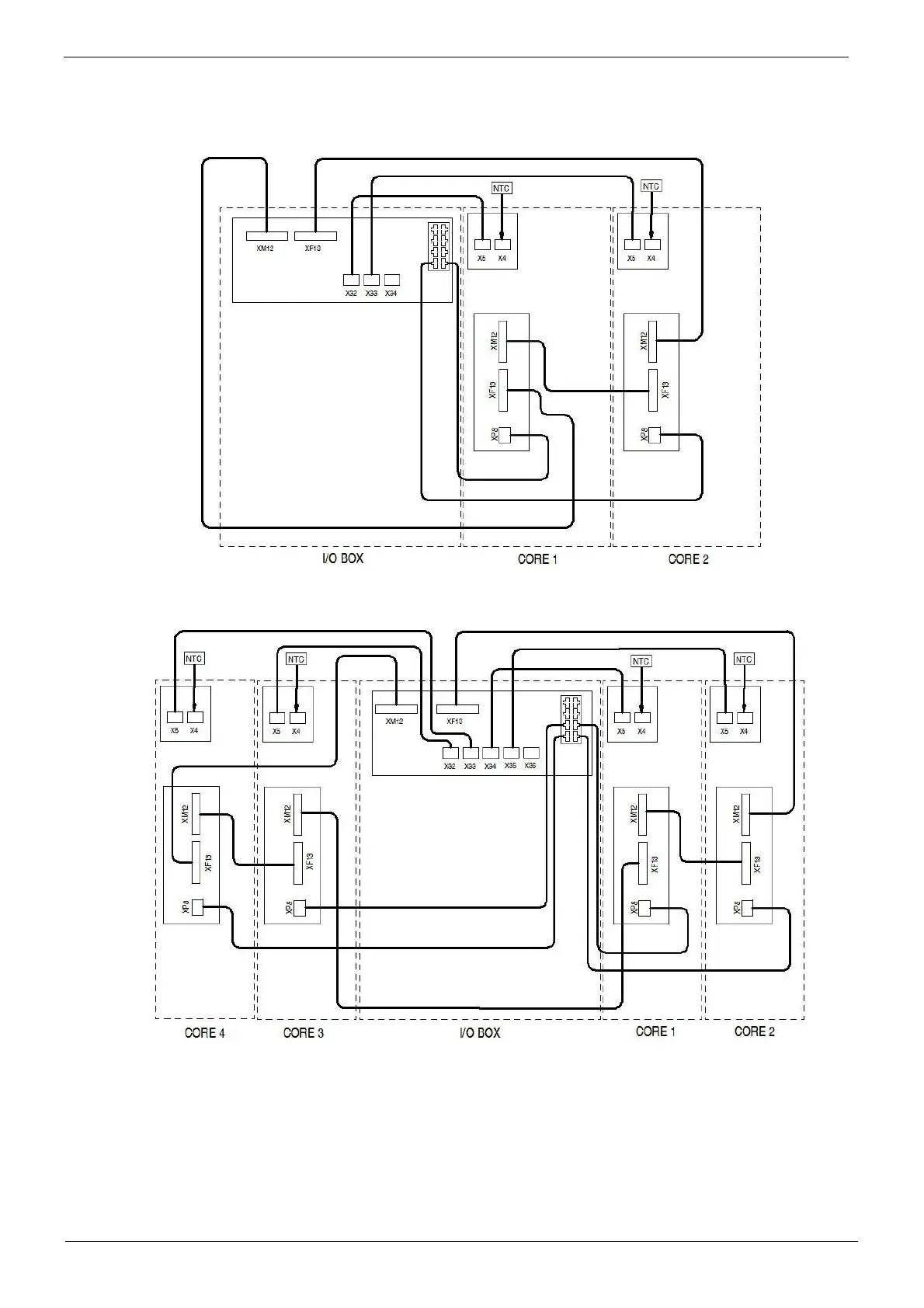

Figure 116 - INTERCONNECTING THE PARALLEL and RJ45 CABLES - I/O BOX 1200A
and 2 x CORES on the RIGHT
Figure 117 - INTERCONNECTING THE PARALLEL and RJ45 CABLES - I/O BOX 2400A and 2 x CORES
on the RIGHT, 2 x CORES on the LEFT
