Liebert Trinergy™ Cube connectivity
Page 122 Installation Manual - 10H52243IM60 - rev. 7 - 06/2020
5.2.11. Input connector - XP11
Connection with customer plant:
12-wire connector used for dry contacts, only safe operating voltage will be connected here.
The current level for all inputs is less than 5mA at 12 or 24V.
Connection should be as follows:

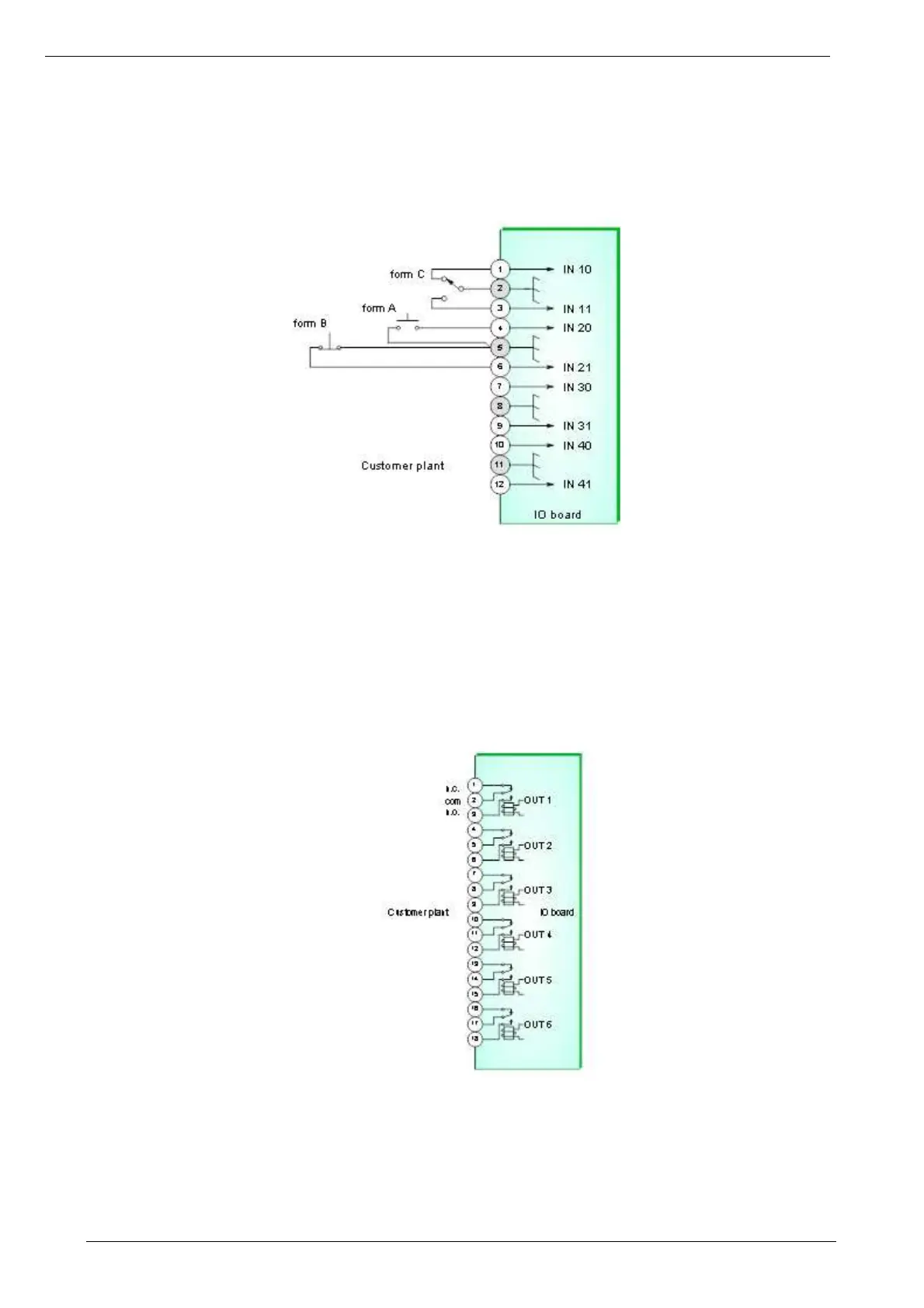

Figure 124 - Connection of the connector XP11
5.2.12. Output connector - XP12
This connector will be connected to the customer plant.
18-wire connector suitable for 250V signals. Functional insulation between pins and reinforced insulation
between XP10 and XP11 is required.
The current range of the contacts is 1A at 250Vac or 1A at 24Vdc.
This can be considered as an example for general alarm, general warning or circuit breaker closed.
Connection should be as follows:
Figure 125 - Connection of the connector XP12
