MECHANICAL INSTALLATION Liebert Trinergy™ Cube
Installation Manual - 10H52243IM60 - rev. 7 - 06/2020 Page 11
2.6. Unpacking and unloading the cabinets from the pallet
The utmost care must be taken when removing the packaging to prevent damage to the equipment.
Check all packaging materials to ensure that no important items are discarded. To remove the cabinets
from the pallet and place them in the definitive installation position, it is necessary to remove the L profile
that fixes them to the pallet (Fig. 2).

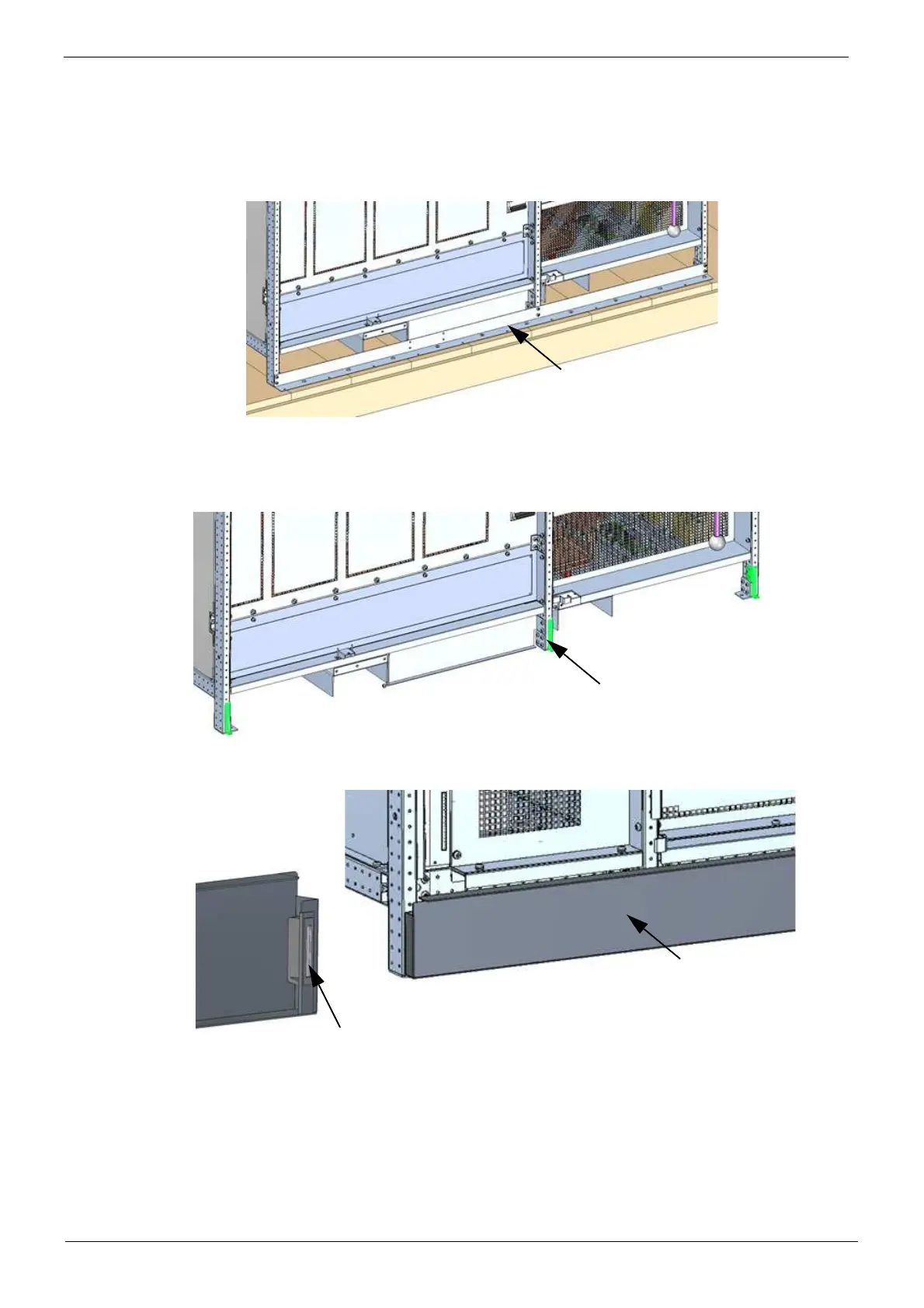

Figure 2 - Removing the L-profile
Only for 4000/5000A, after removing the L profile, screw the supplied support brackets to the
mountings (Fig. 3) and mate the kick plates to the support brackets to fix them together using the
magnets present inside the kick plates (Fig. 4).
Figure 3 - Screwing the supplied support brackets to the mountings
Figure 4 - Fixing the kick plates and the support brackets together using the magnets
