Electrical CONNECTIONS I/O BOX TO CORES Liebert Trinergy™ Cube
Installation Manual - 10H52243IM60 - rev. 7 - 06/2020 Page 69
3. ELECTRICAL CONNECTIONS I/O BOX TO CORES
The connections must be performed by qualified personnel.
Placement of the modules inside the unit is shown below.

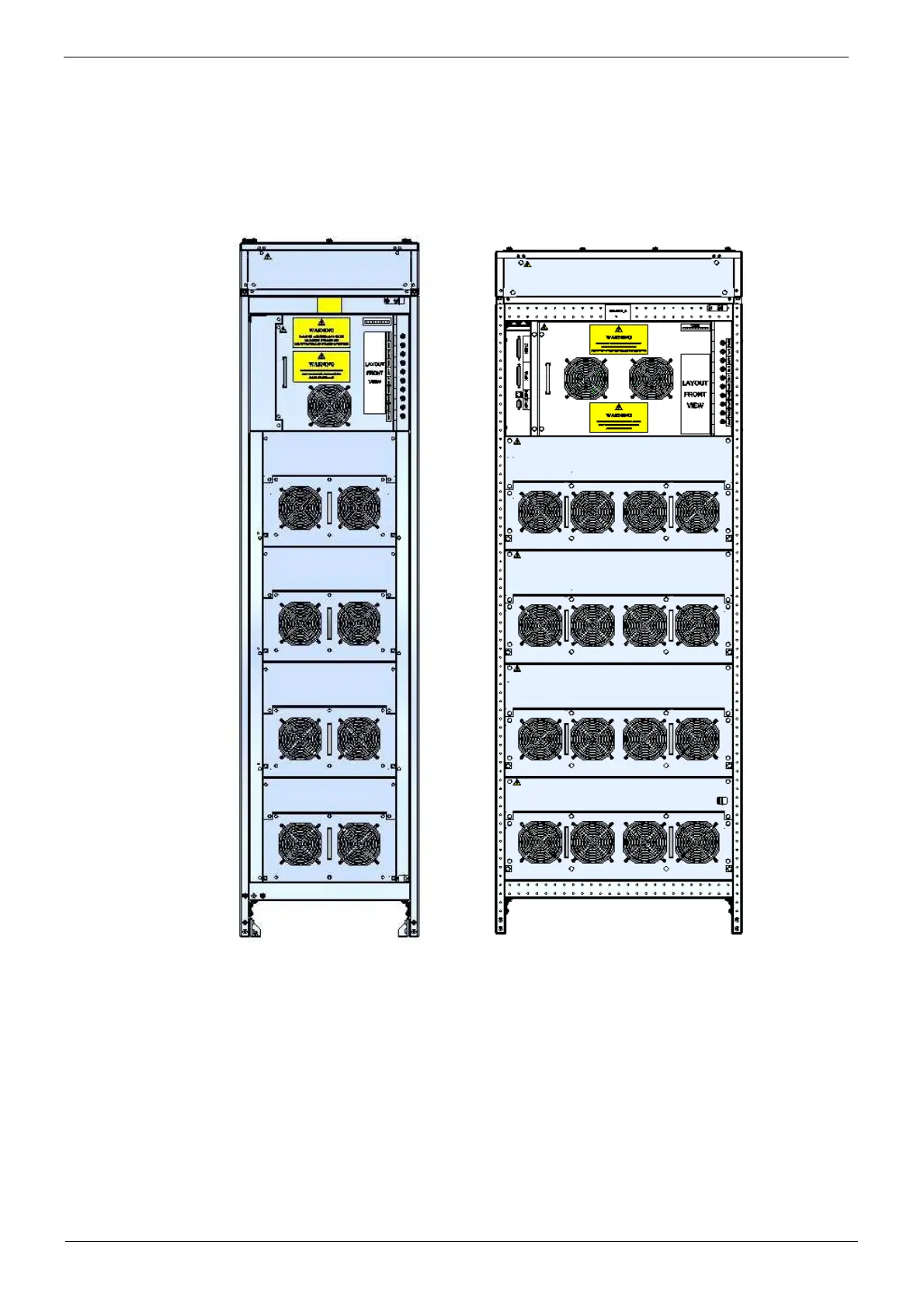

Figure 73 - CORE FRONT VIEW WITH IDENTIFICATION MODULES
RECT./INV.
BOOST MODULE
MODULE - PH. U
RECT./INV.
MODULE - PH. V
RECT./INV.
MODULE - PH. W
RECT./INV. MODULE - PH. U
RECT./INV. MODULE - PH. V
BOOST MODULE
RECT./INV. MODULE - PH. W
CORE 200kVA
CORE 400kVA
