Vertiv Liebert Trinergy Cube Installation Manual

Liebert Trinergy™ Cube Electrical CONNECTIONS I/O BOX TO CORES
Page 70 Installation Manual - 10H52243IM60 - rev. 7 - 06/2020
1) Parts to remove on the roof of the CORE to perform power electrical connections.

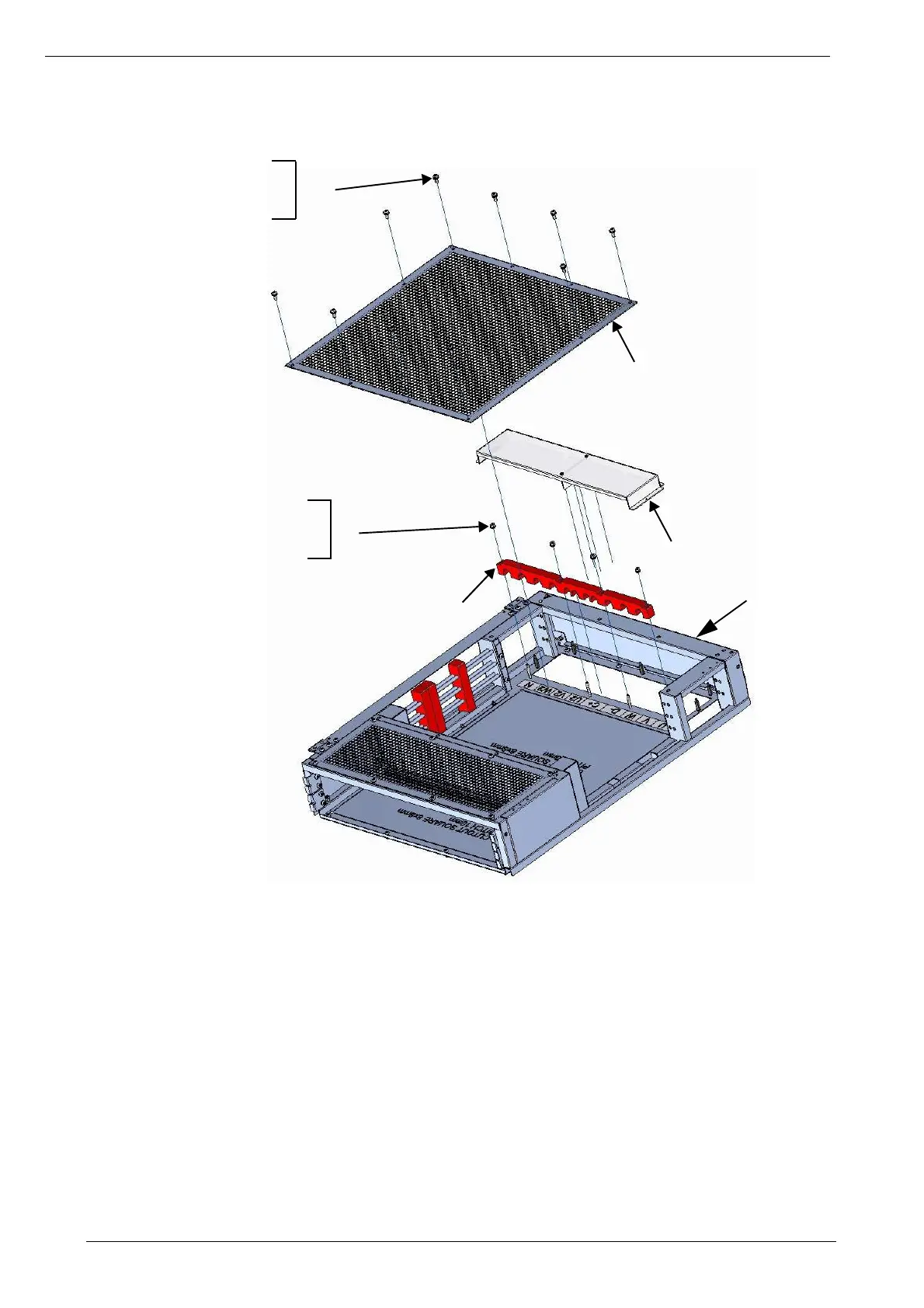

Figure 74 - TOP OF THE CORE - AREA FOR POWER CABLES
2) Connections between I/O BOX and CORES - RIGHT SIDE
CABLE CLAMP
LEXAN TERMINAL COVER
ROOF GRILLE
NUT M6
WASHER D6 GROWER
WASHER D6 FLAT
x 4
SCREW M6 H16
WASHER D6 GROWER
WASHER D6 FLAT
x 10
FRONT
