MECHANICAL INSTALLATION Liebert Trinergy™ Cube
Installation Manual - 10H52243IM60 - rev. 7 - 06/2020 Page 31

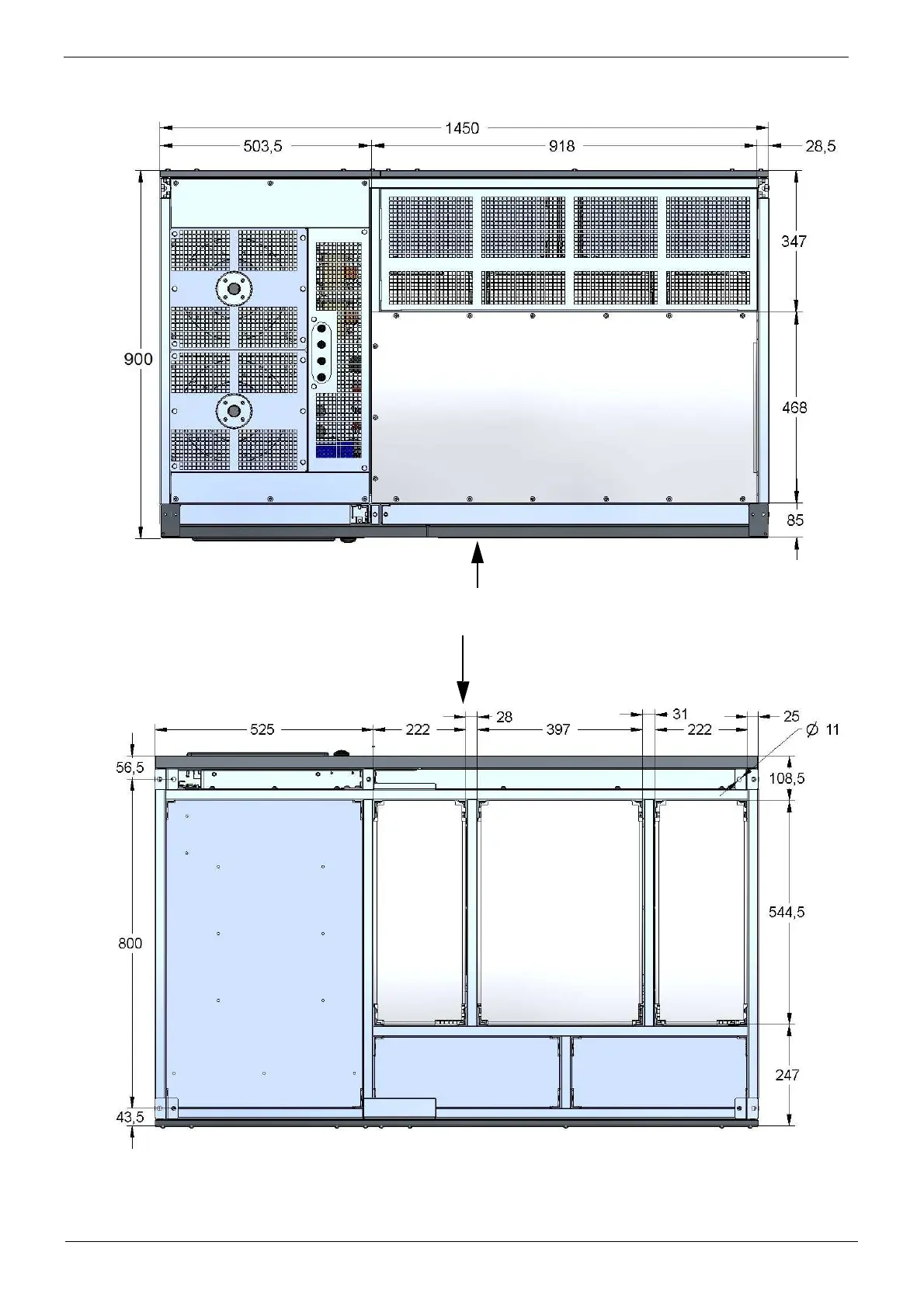

Figure 22 - 2400A I/O BOX DIMENSIONS (TOP VIEW WITH TOP CABLE GLAND PLATE)
Figure 23 - 2400A I/O BOX DIMENSIONS
(BOTTOM VIEW WITH POSITION OF THE FEET AND THE CABLE GLAND PLATES)
FRONT
GLAND PLATE
FRONT
GLAND PLATE
GLAND PLATE
GLAND PLATE
