MECHANICAL INSTALLATION Liebert Trinergy™ Cube
Installation Manual - 10H52243IM60 - rev. 7 - 06/2020 Page 35

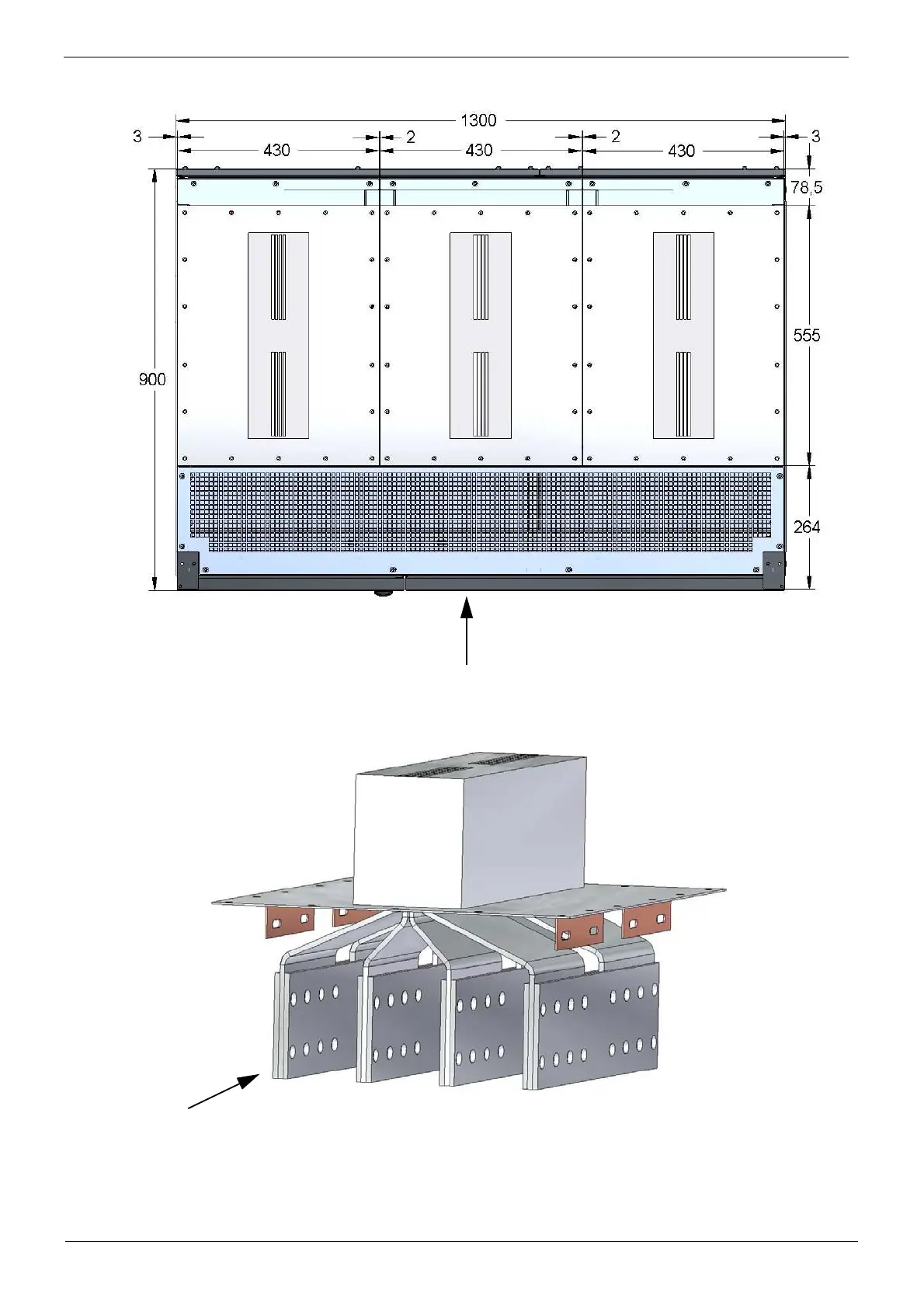

Figure 28 - 3000A I/O BOX DIMENSIONS (TOP VIEW WITH FLANGES) - see “NOTE” on page 133
Figure 29 - FLANGES of the 3000A I/O BOX (FRONT VIEW - see “NOTE” on page 133)
FRONT
OUTPUT
BY-PASS INPUT
MAINS INPUT
N... L3
N... L3N... L3
FRONT
L1
L2
L3
N
PE
OUTPUT - BY-PASS INPUT - MAINS INPUT
(PHASE SEQUENCE FOR EACH FLANGE)
PE
PE
PE
