Liebert Trinergy™ Cube Electrical CONNECTIONS I/O BOX TO CORES
Page 72 Installation Manual - 10H52243IM60 - rev. 7 - 06/2020

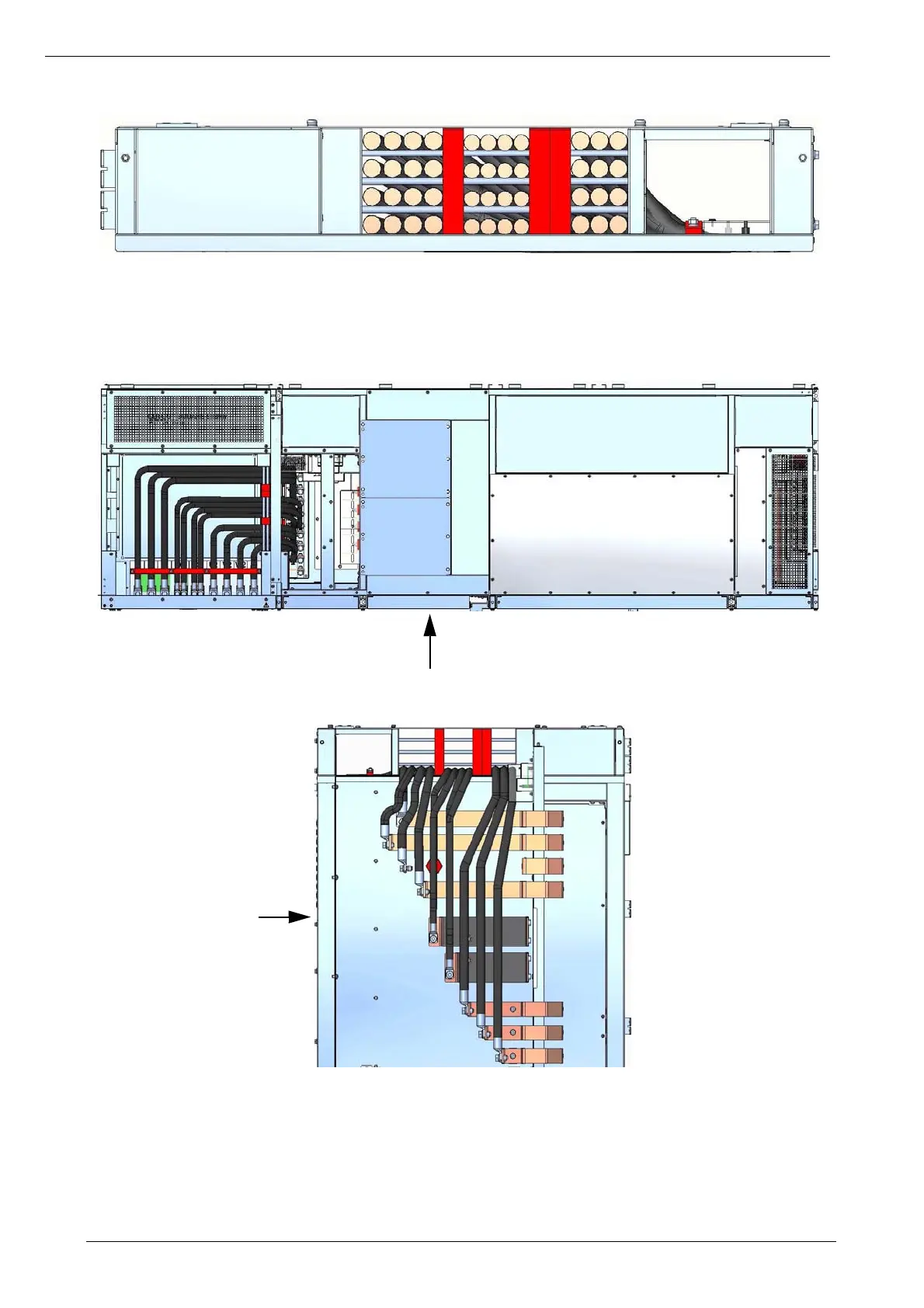

Figure 78 - I/O BOX UP TO FOUR CORES IN THE ROW - ELECTRICAL CONNECTIONS
3) Connections between I/O BOX and CORES - LEFT SIDE
Figure 79 - TOP VIEW
Figure 80 - I/O BOX - LEFT SIDE CONNECTION to the CORE
1st CORE
2nd CORE
3rd CORE
4th CORE
NW2 V2U2
C+
D- W V U
U
V
W
D-
C+ U2 V2
W2
N
FRONT
U
W
V
D-
C+
U2
W2
V2
N
FRONT
