19
Original Operating Instructions: K4 edition
Document version: E – 02/2020
Running the machine

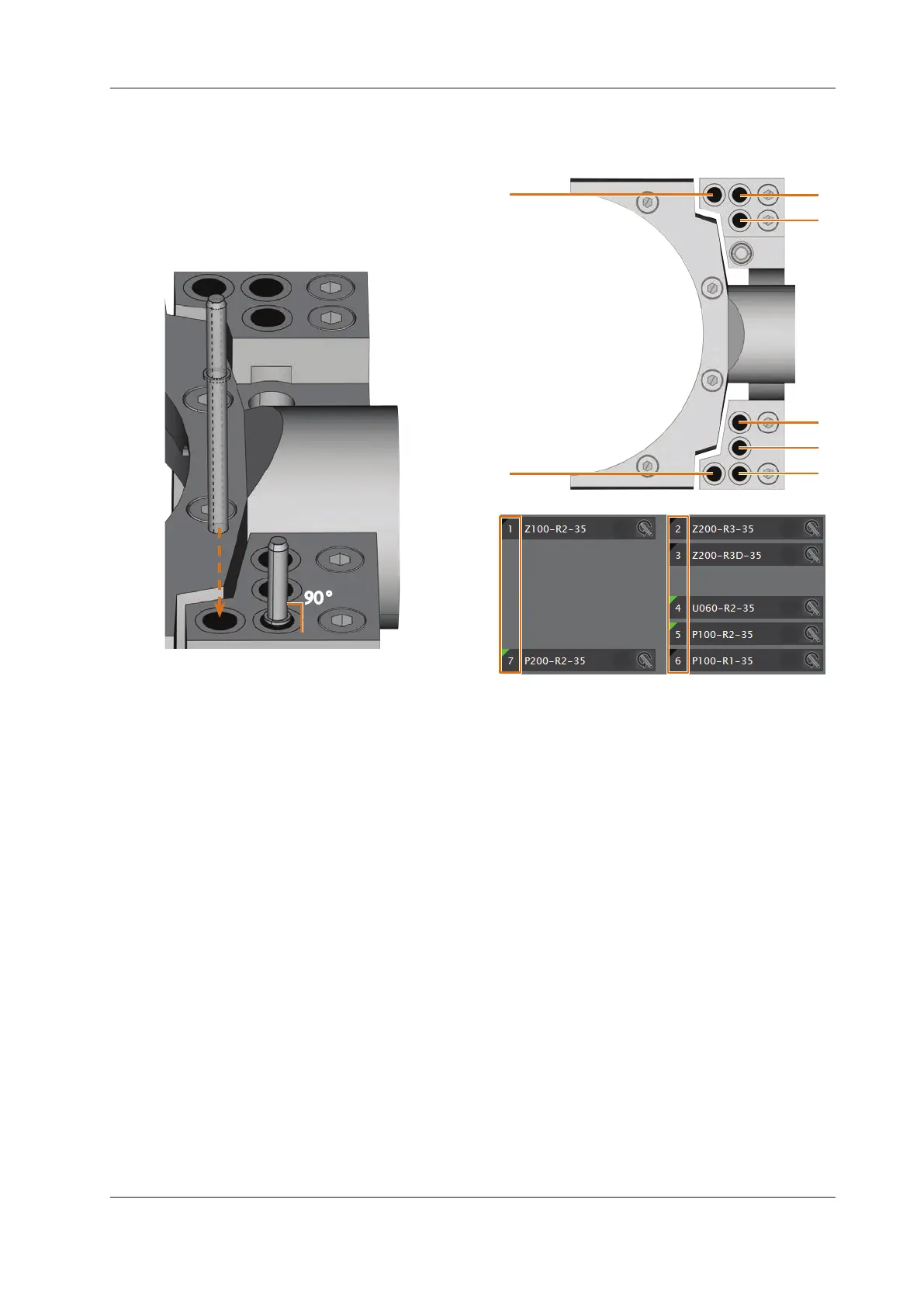

M4. Insert the tools into the tool positions of the tool mag-
azine:
Insert the tools straight into the tool positions and
push them in until the ring touches the rubber
(
Fig. 16).
90 °
The positions of the tools in the tool magazine must
match the tool positions in DentalCNC ( Fig. 17).
n
If the positions of the tools in the tool magazine do not
match the tool positions in DentalCNC, the machine
will use the wrong tool(s) during job execution and
the job result will become unusable.
1
2
3
5
7
6
4
