General Information
Configurations
MAP-200 Optical Switch mOSW-C1 Installation and User Guide Standard
June 2016 Document Number 22112369-120 R000 Page 21

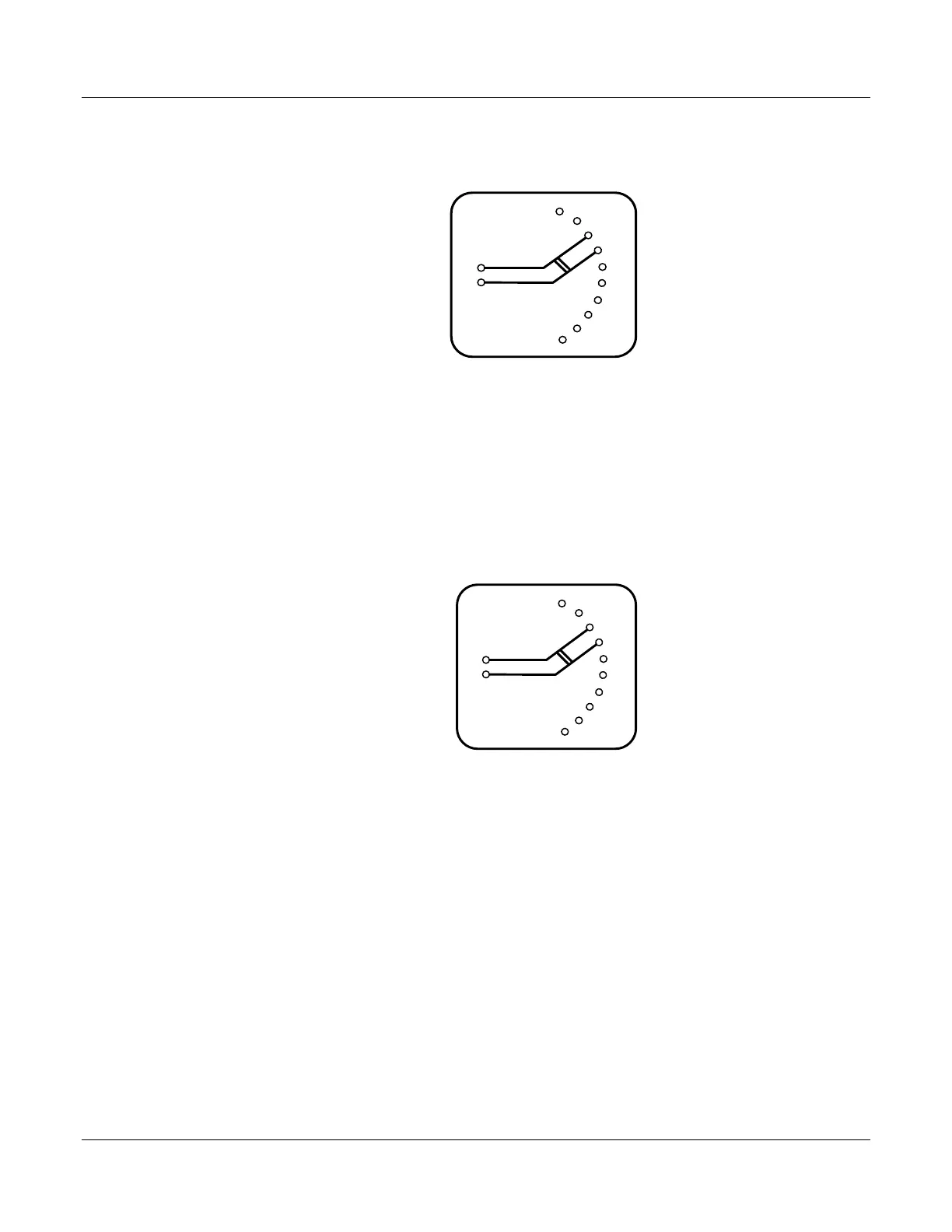

2DxN Configuration
0A
1B
1A
0B
2A
NB
.
.
A
2B
NA
B
Figure 5: 2DxN Configuration
The 2DxN configuration allows for mass reconfiguration of optical paths. It provides
simultaneous connections of a bank of inputs to outputs. “A” input connects to “A”
outputs only; “B” input connects to “B” outputs only.
2ExN Configuration
0
2
1
0
3
N
.
.
A
4
.
B
Figure 6: 2Ex2 Configuration
The 2ExN configuration aligns any input with any output while other inputs are
aligned to adjacent outputs.
