MAP-200 Optical Switch mOSW-C1 Installation and User Guide Page 30
June 2016 Document Number: 22112369-120 R000 Status: Standard
Chapter 6: The mOSW-C1
Graphical User Interface
(GUI)
Initial Screen

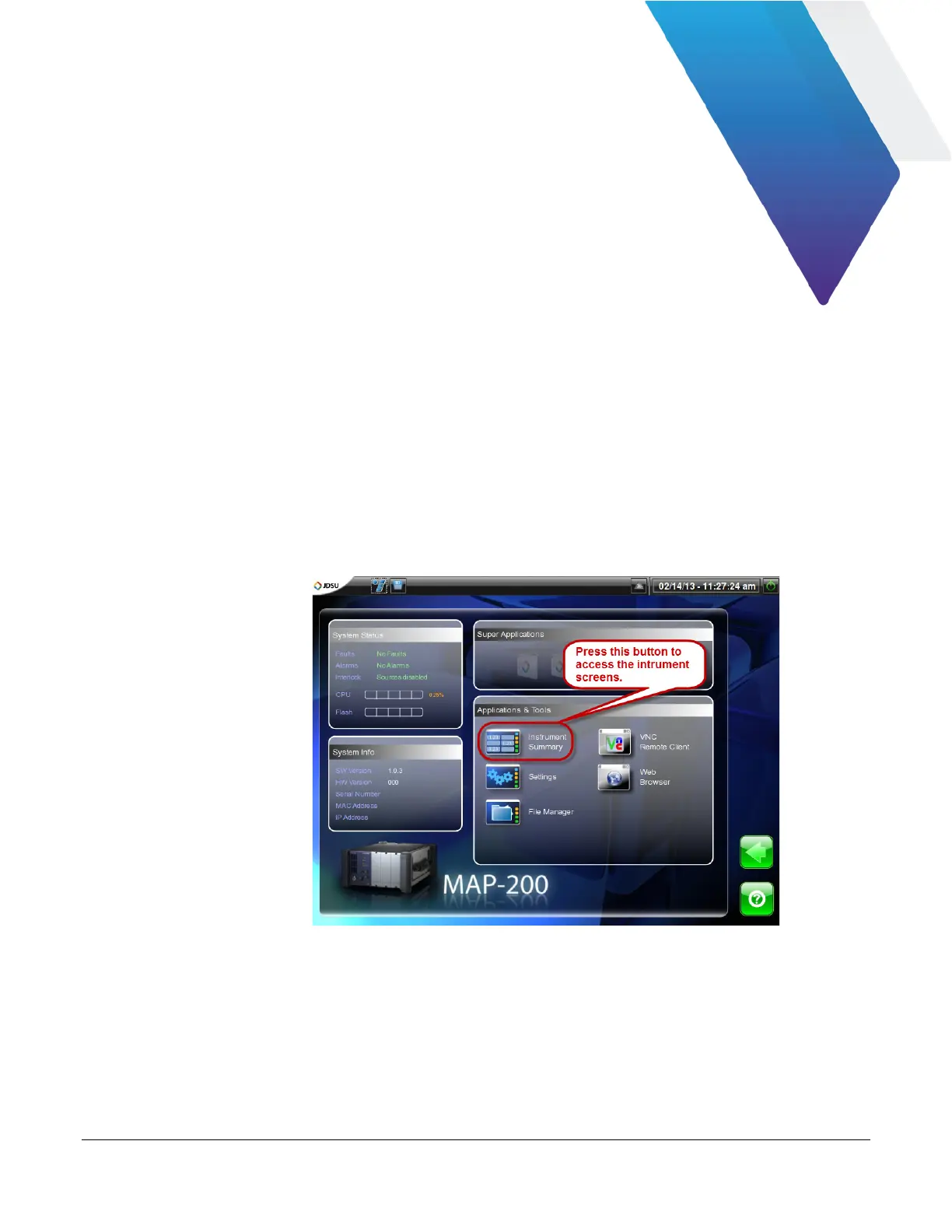

To access the controls for an mOSW-C1 cassette installed in the MAP-200, press or
click on “Instrument Summary” on the home screen of the MAP-200 application.
