The mOSW-C1 Graphical User Interface (GUI)
Simplified Views
MAP-200 Optical Switch mOSW-C1 Installation and User Guide Standard
June 2016 Document Number 22112369-120 R000 Page 37
Other Simplified views

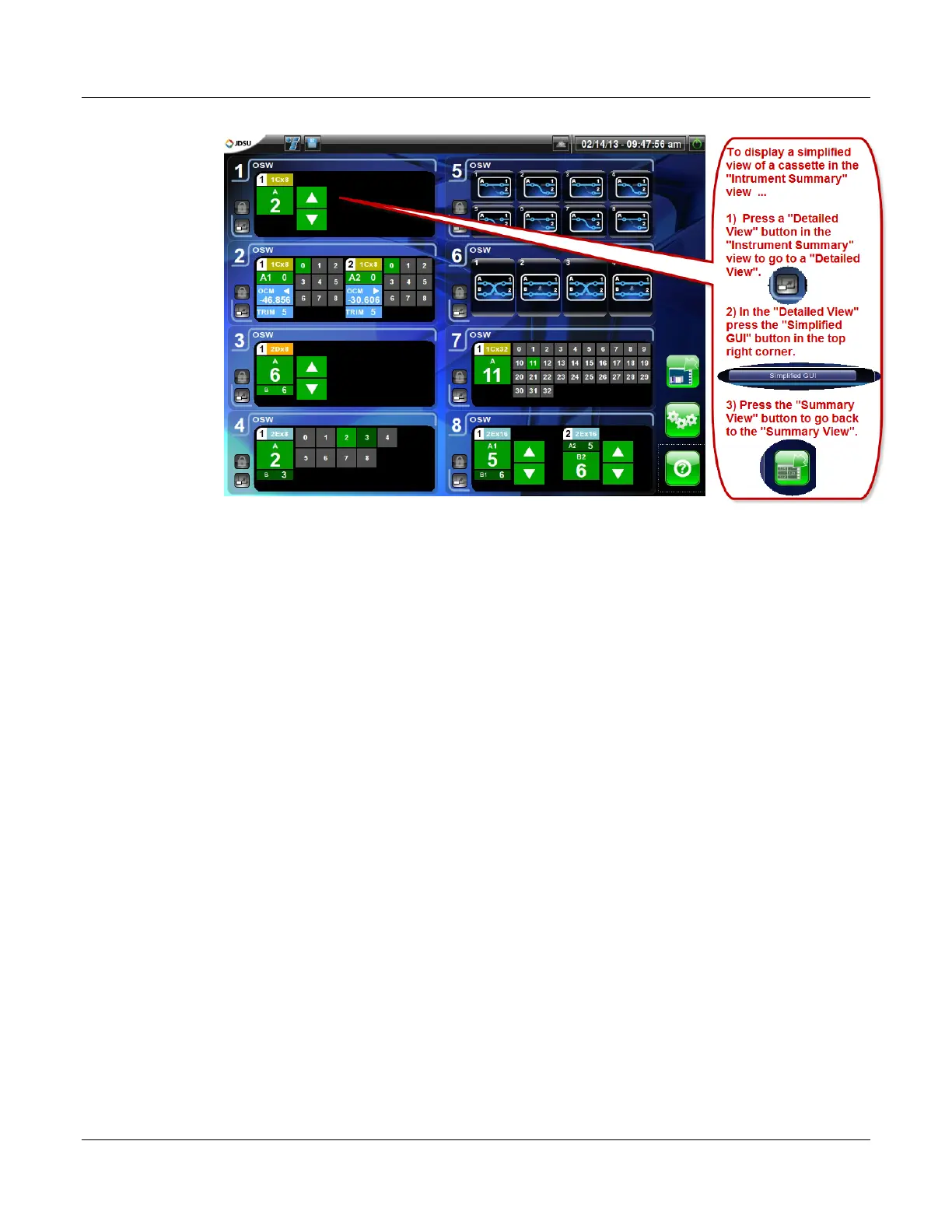

Simplified views are available for any detailed view with a “Simplfied GUI” button in
the upper right-hand corner. The graphic below shows the simplified view of the C-
Type switch.
