The mOSW-C1 Graphical User Interface (GUI)
D-Type GUI
MAP-200 Optical Switch mOSW-C1 Installation and User Guide Standard
June 2016 Document Number 22112369-120 R000 Page 34

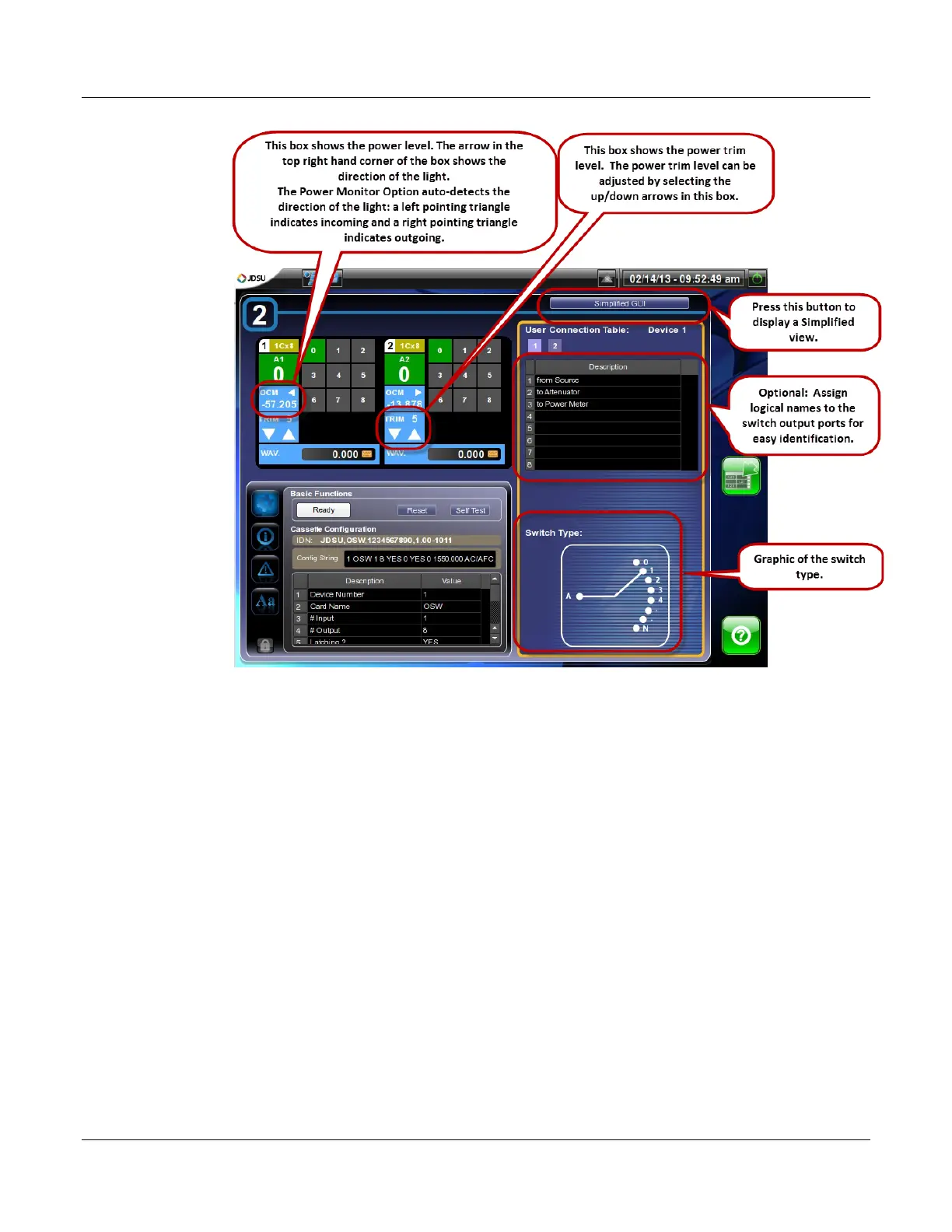

D-Type GUI
The D-type switch is a ganged input configuration of the mOSW-C1.
It operates like a 2x[1xN] with locked channel selection. Input A connects to A
outputs only and input B connects to B outputs only.
