The mOSW-C1 Graphical User Interface (GUI)
Instrument Summary
MAP-200 Optical Switch mOSW-C1 Installation and User Guide Standard
June 2016 Document Number 22112369-120 R000 Page 31
Instrument Summary
The Instrument Summary screen provides basic information for all of the intruments
installed in the MAP-200.
To access more detailed information for a particular cassette press or click on the
“Detailed” view icon: this will bring up a detailed view of the cassette.
Instrument Summary View
1x2 and 2x2 GUI

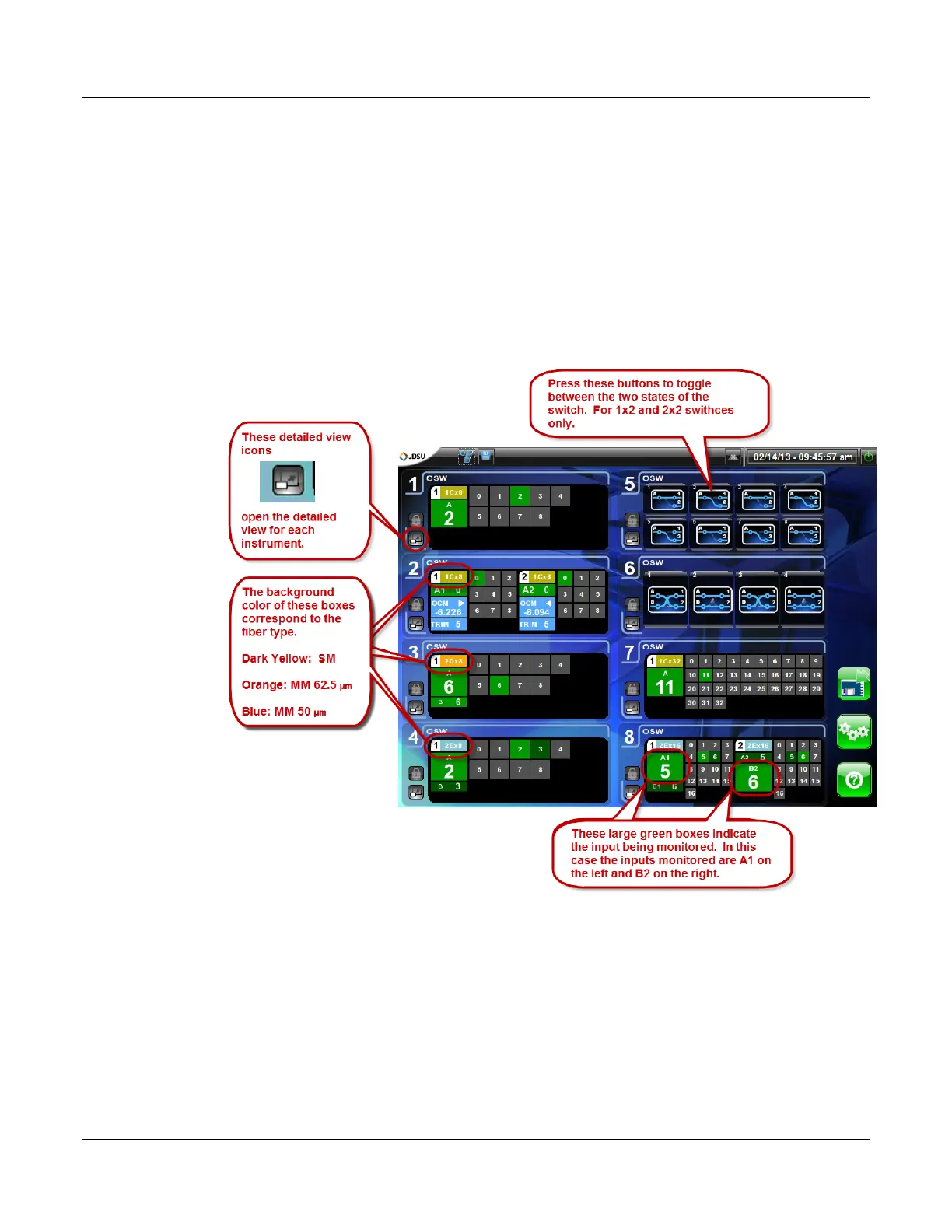

The screenshot below shows 8 independent 1x2 switches in different states.
