The mOSW-C1 Graphical User Interface (GUI)
E-Type GUI
MAP-200 Optical Switch mOSW-C1 Installation and User Guide Standard
June 2016 Document Number 22112369-120 R000 Page 35
E-Type GUI
An E-type switch aligns any input with any output while other inputs are aligned to

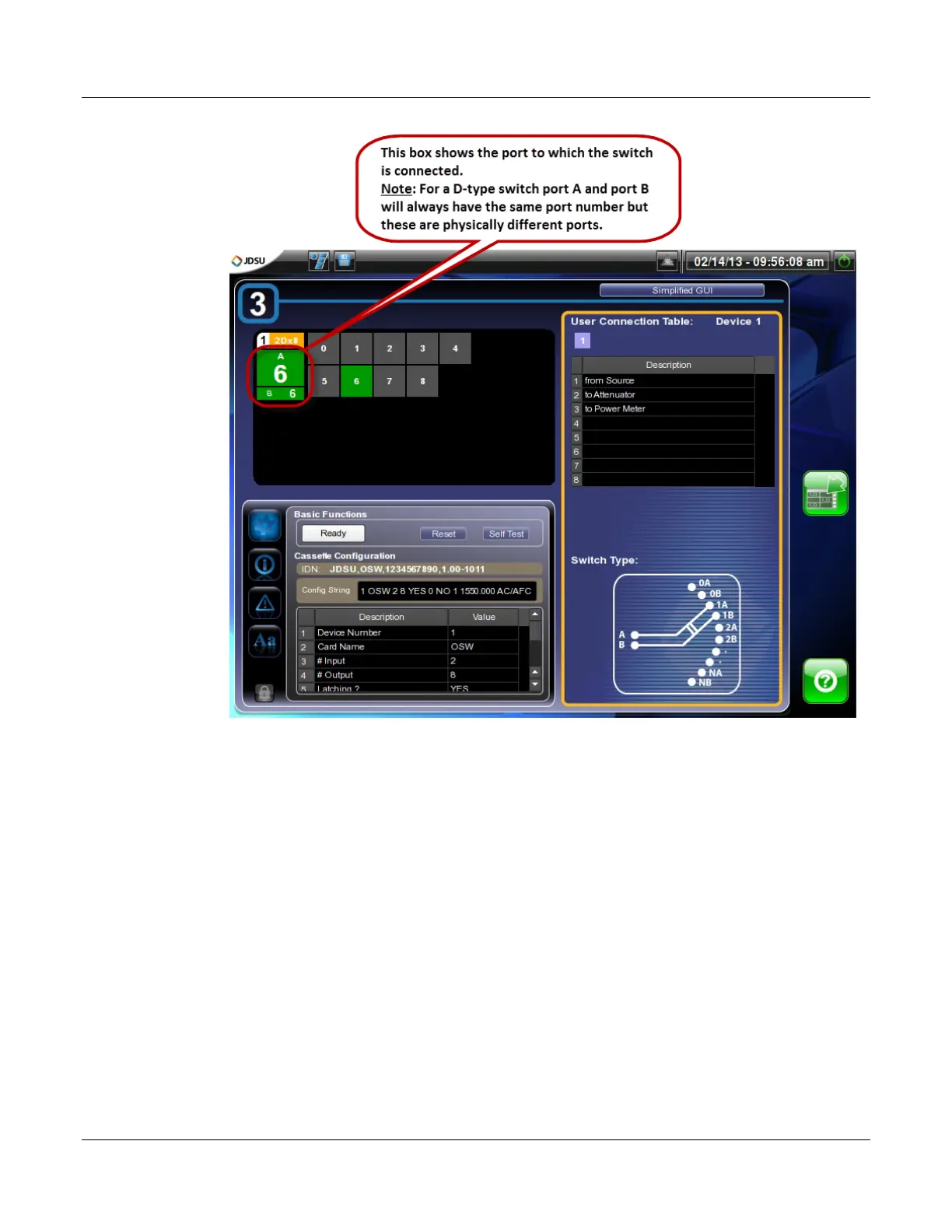

adjacent outputs. This screenshot highlights particular features of this view.
