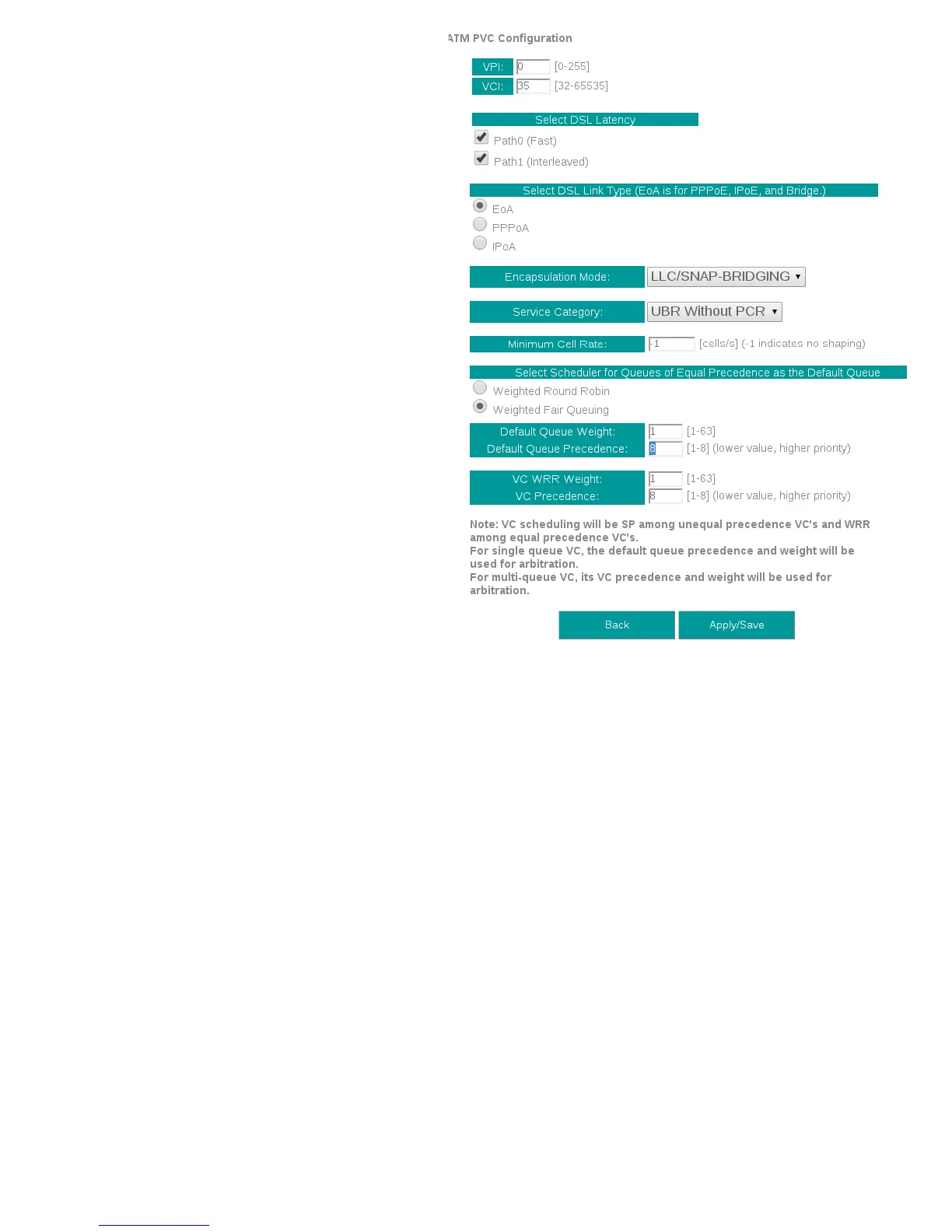

2.B Modify Parameters
Notes:
VPI/VCI
If you are using more than one vlan, create
one PVC. The VLANs will be added during
WAN Service configuration.
DSL Latency
If “Interleave” (PATH 1) is to be selected,
“Fast” (PATH 0) must also be selected
DSL Link Type
EoA (Ethernet over ATM)will be used for all
Ethernet based Bridge, PPP, and IP Services;
PPPoA and IPoA are exclusively ATM based
Encapsulation Mode
Default: LLC/Snap-Bridging
Service Category
Default: UBR without PCR
Minimum Cell Rate:
Default : -1
QoS Scheduler
Select WRR or WFQ
You may select Queue Weight and
Precedence for the ATM.
This will affect QoS Prioritization for upstream
traffic only.
2.C Select “Apply / Save”
VisionNet M504 / M505N R3 Page 19 of 62 User Manual Rev 0.1c
