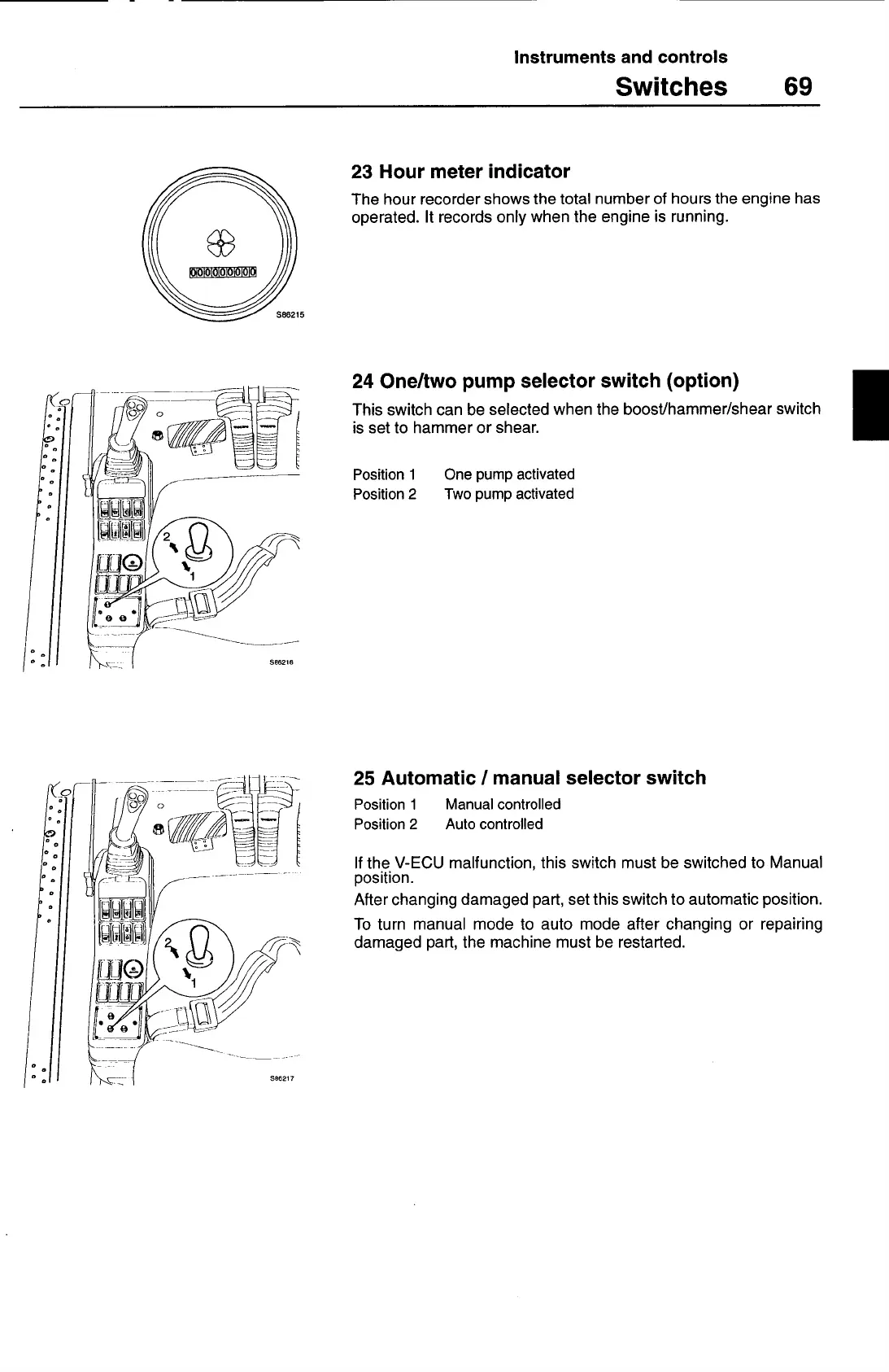

Instruments
and controls
Switches
69
23 Hour meter indicator
The hour recorder shows the total number of hours the engine has
operated. It records only when the engine is running.
24 One/two pump selector switch (option)
This switch can be selected when the boost/hammer/shear switch
is set to hammer or shear.
Position 1
One pump activated
Position 2
Two pump activated
25 Automatic
I
manual selector switch
Position 1
Manual controlled
Position 2
Auto controlled
If the V-ECU malfunction, this switch must be switched to Manual
position.
After changing damaged part, set this switch to automatic position.
To turn manual mode to auto mode after changing or repairing
damaged part, the machine must be restarted.
