Instruments and controls
46 Description of instrument panel
VOE 2134355130

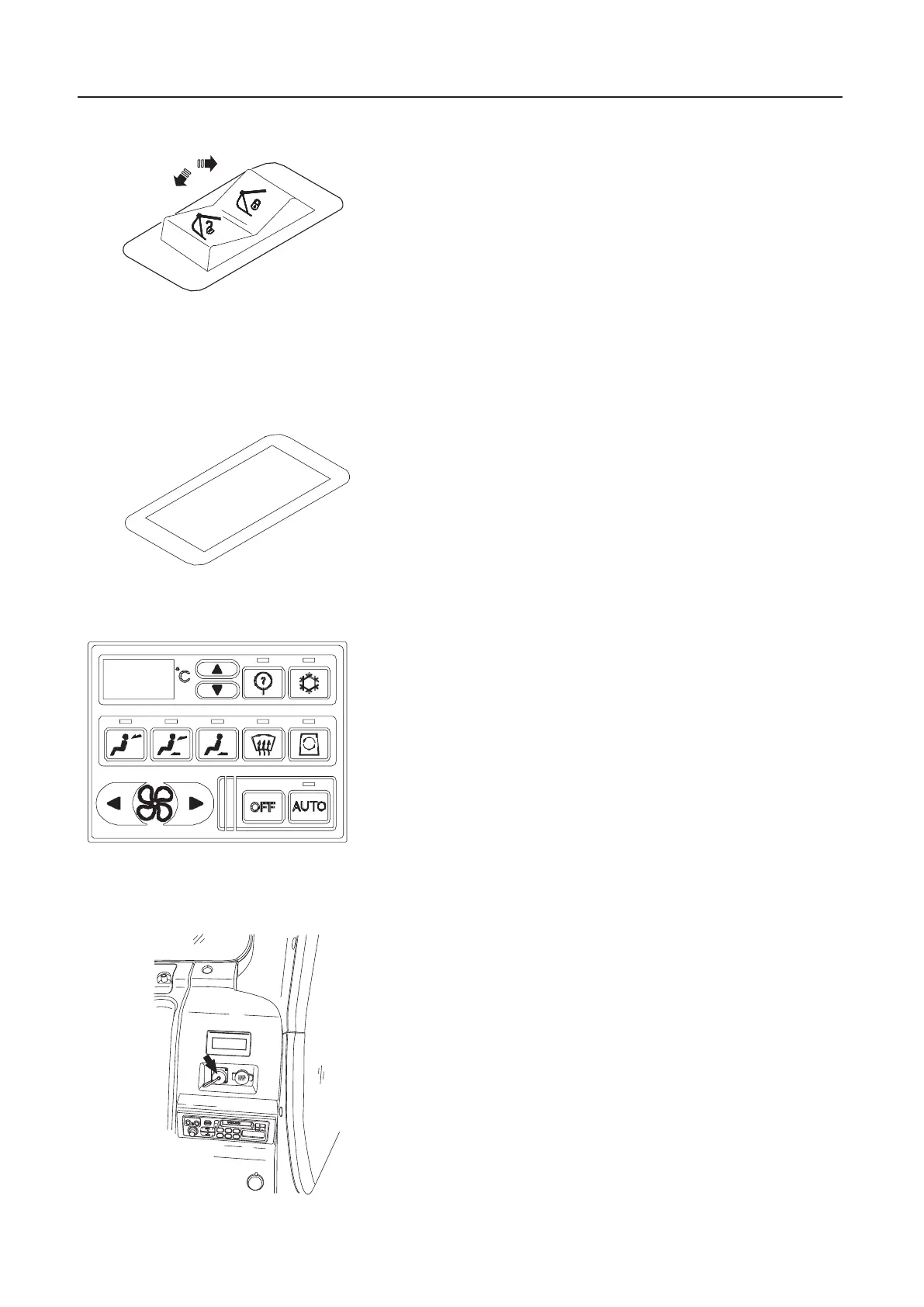

27 Quickfit switch (option)
IMPORTANT
This function is activate d by pressing the quickfit switch on
the left and right instrument panels simultaneously,
See Quickfit switch (option) on page 40.
Switch (A) in position 0 Quickfit closed
Switch (A) in position 1 Quickfit opend
Switch (A) in position 2 Quickfit neutral
When both switches are in position (1) simultaneously, the quickfit
is opened, the buzzer is activated, quickfit warning and central
warning lamp are ON.
After installing quickfit and when both switches are in position (0),
then the quickfit warning and central warning lamps are OFF.
28 Unassigned
29 Air conditioner/heater switch
This switch is used to activate air conditioner/heater.
Detailed contents: See Air conditioner/heater (option) on page
67.
30 Service socket
The service socket (VCADS Pro, SDU, MNTRIS) is positioned to
the left, above the radio.
Contact an authorized dealer workshop.
