When “1” lights, the gauge shows the air pressure in
the front brake circuit and when “2” lights, the air
pressure in the rear brake circuit is shown.

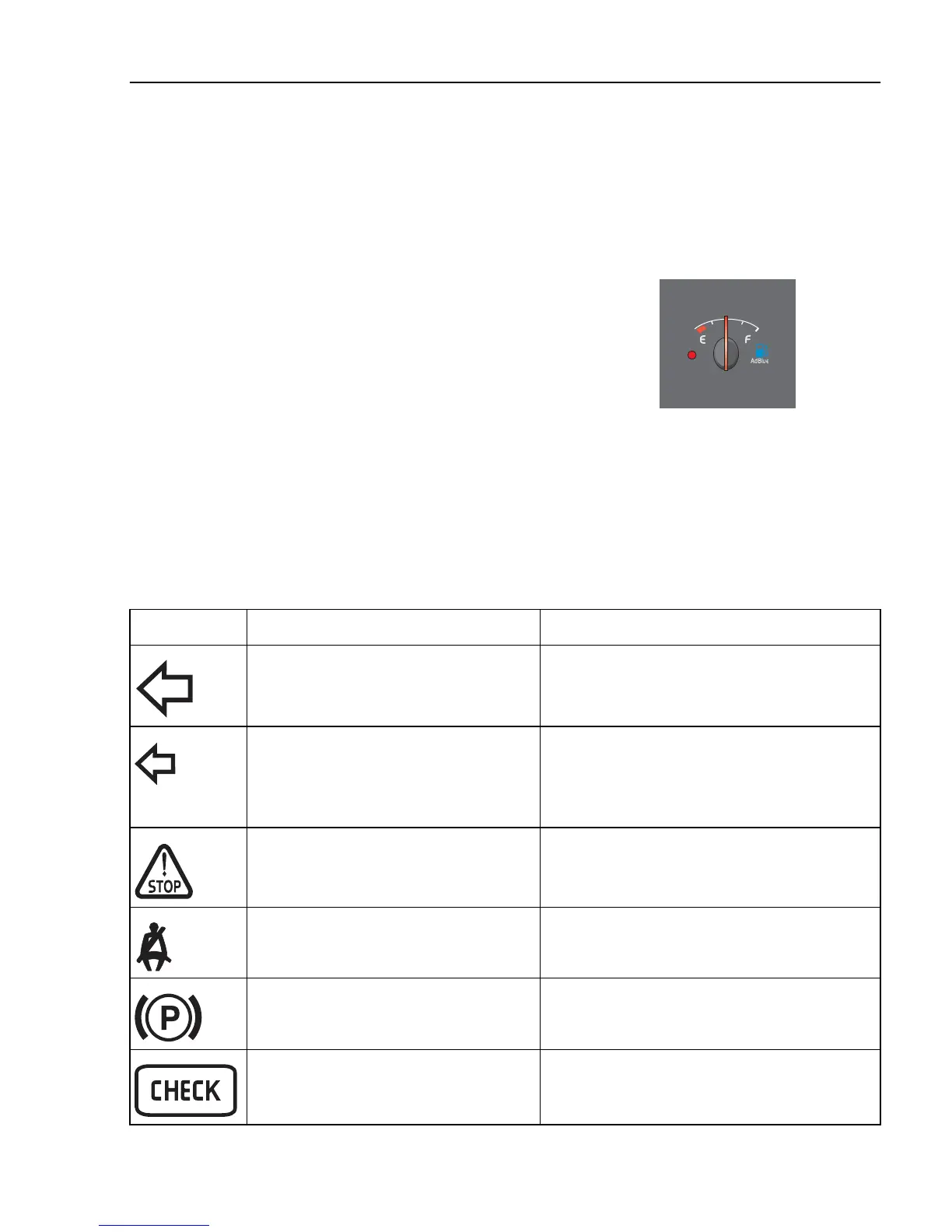

Level gauge for AdBlue
This gauge indicates the approximate amount of
AdBlue
in the tank. The red sector and the yellow
LED indicate when
AdBlue
should be filled.
J201136
Symbols
The symbols shown on the driver information display
are described in section describing the display.
Symbol Meaning Note
Left indicator on In the case of a fault the arrow flashes twice as
fast.
Left indicator on (trailer) In the case of a fault the arrow flashes twice as
fast.
Note! Fault indication will not occur if LEDs are
used for the trailer lighting.
Stop, there is a fault on the truck Lights up together with another symbol
or with a message on the display.
Seat belt reminder
Parking brake applied
Check Lights up together with some other symbol or
together with a message on the display.
Instruments and controls
19
