3-54 SHB 28Z3 EN – Edition 2.0 * 28z3s314.fm
Maintenance

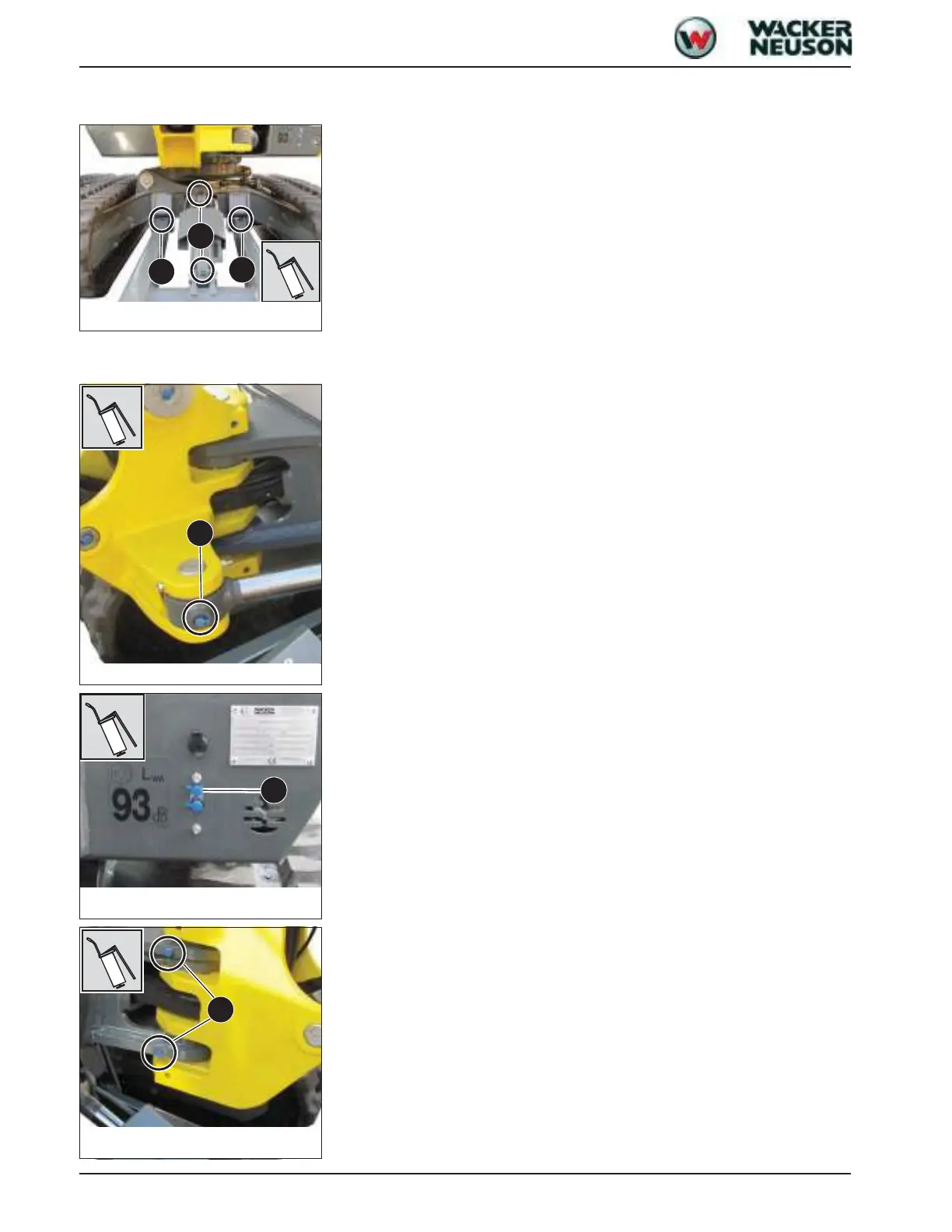

Lubrication points on the stabiliser blade and stabiliser blade ram
☞ Apply grease to lubrication points 5 on the stabiliser blade ram
☞ Apply grease to lubrication points 6 (on either side) on the stabiliser blade
Lubrication points on the swivelling console and slewing ram
☞ Apply grease to lubrication points 10 on the offset ram
☞ Apply grease to lubrication points 10 of the offset ram
☞ Apply grease to lubrication points 9 of the swivelling console
Fig. 66: Lubrication points on the stabiliser blade and ram
5
6
6
Fig. 67: Lubrication point on offset ram
10
Fig. 68: Lubrication point on offset ram
10
Fig. 69: Lubrication points on the swivelling console
9
