Wacker Neuson 28Z3 Service Manual

SHB 28Z3 EN – Edition 2.0 * 28z3s314.fm 3-55
Maintenance

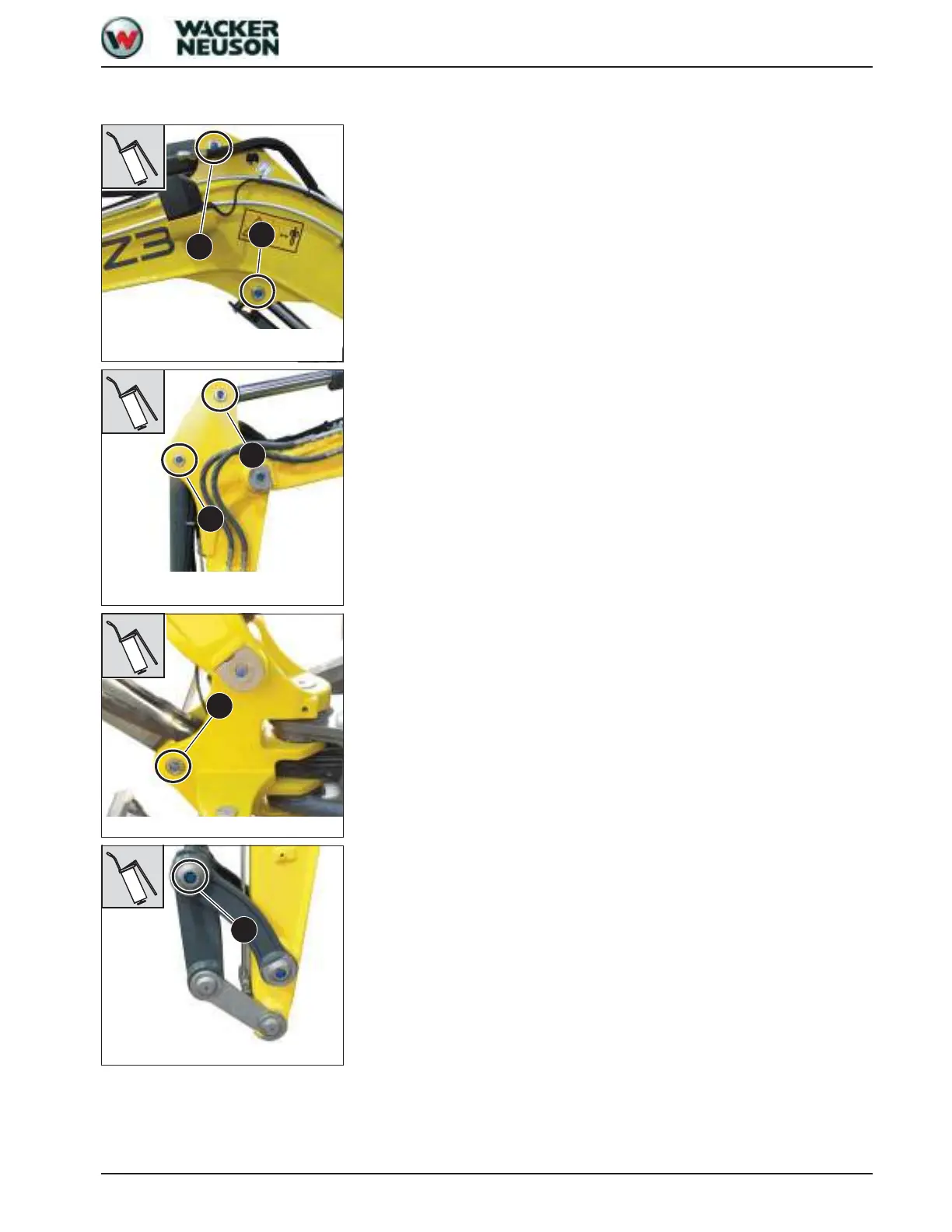

Lubrication points on the boom, bucket and stick rams
☞ Apply grease to lubrication points 2 on the stick ram
☞ Apply grease to lubrication points 3 on the boom ram
☞ Apply grease to lubrication points 2 on the stick ram
☞ Apply grease to lubrication points 1 on the bucket ram
☞ Apply grease to lubrication points 3 on the boom ram
☞ Apply grease to lubrication points 1 on the bucket ram
Fig. 70: Lubrication points on boom and stick rams
2
3
Fig. 71: Lubrication points on bucket and stick rams
2
1
Fig. 72: Lubrication points on the boom ram
3
Fig. 73: Lubrication points on the bucket ram
1
