Wacker Neuson 28Z3 Service Manual

8-14 SHB 28Z3 EN – Edition 2.0 * 28z3s810.fm
PowerTilt PTS06
8.10 Removing the piston tube body
☞ Check the dead centre marks of housing ring gear 1 and piston tube body 3.
☞ Carefully push the piston tube out of the housing until the gearing is released from the
ring gear of the housing.
Notice!
The piston tube is pulled out of the housing more easily with a plastic/rubber
hammer and a plastic drift. The outer gearing is then released from the teeth of the
ring gear in the housing bore.
Caution!
Remove the piston tube carefully!
☞ Avoid damage to the teeth.
1
3

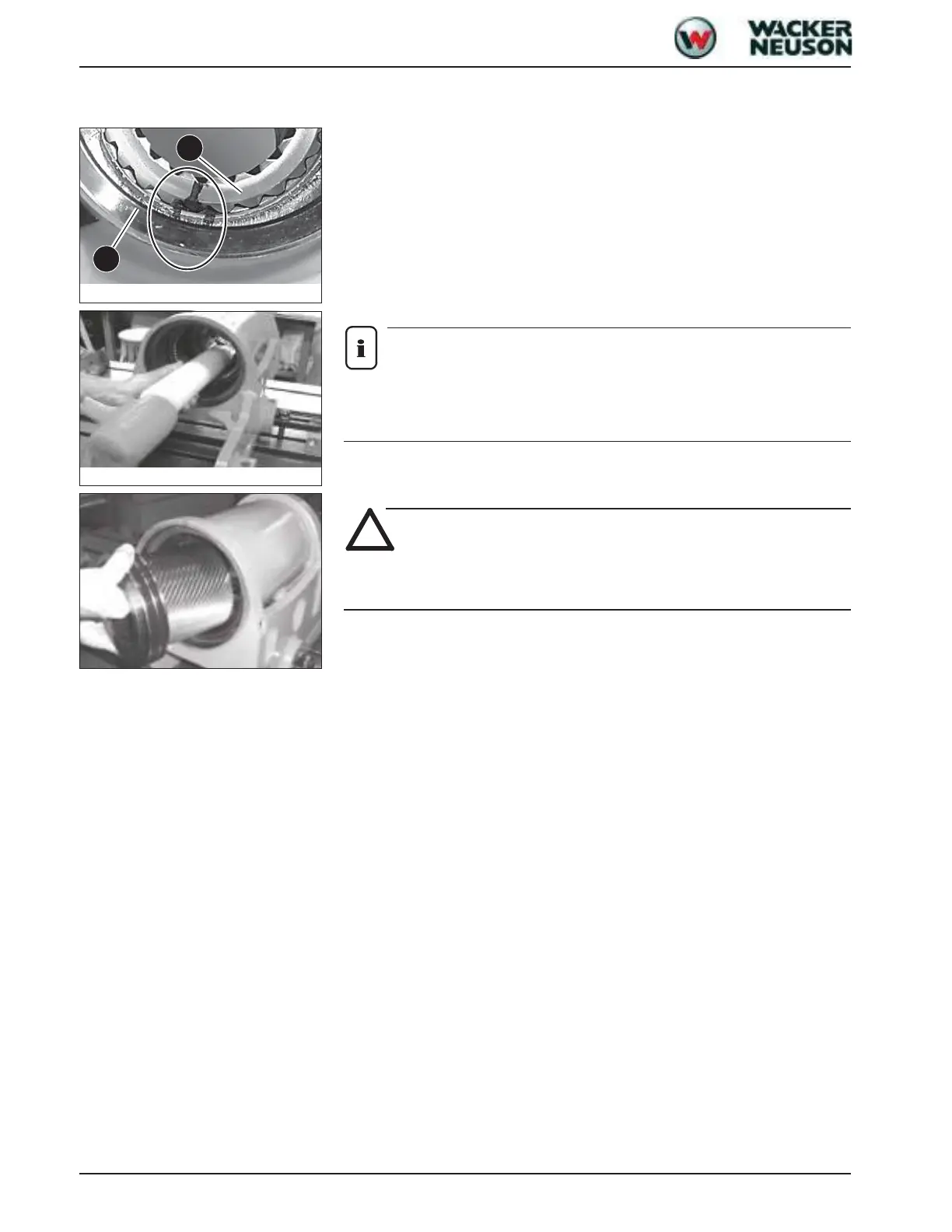

Fig. 20: Mark on housing ring gear
Fig. 21: Removing the piston tube with a hammer and drift
Fig. 22: Removing the piston tube
