Maintenance
Retightening the V-belt
☞ Stop the engine
☞ Fold the control lever base up
☞ Remove the ignition key and carry it with you
☞ Disconnect the battery
☞ Let the engine cool down
☞ Raise the upper front window
☞ Remove the lower front window
☞ Slacken fastening screws 1
☞ Remove the body-bound rivet 2 next to the right-hand control lever base
☞ Remove the side trim
☞ Slacken fastening screws 3
☞ Remove cover 4
• Take care not to bend the hose

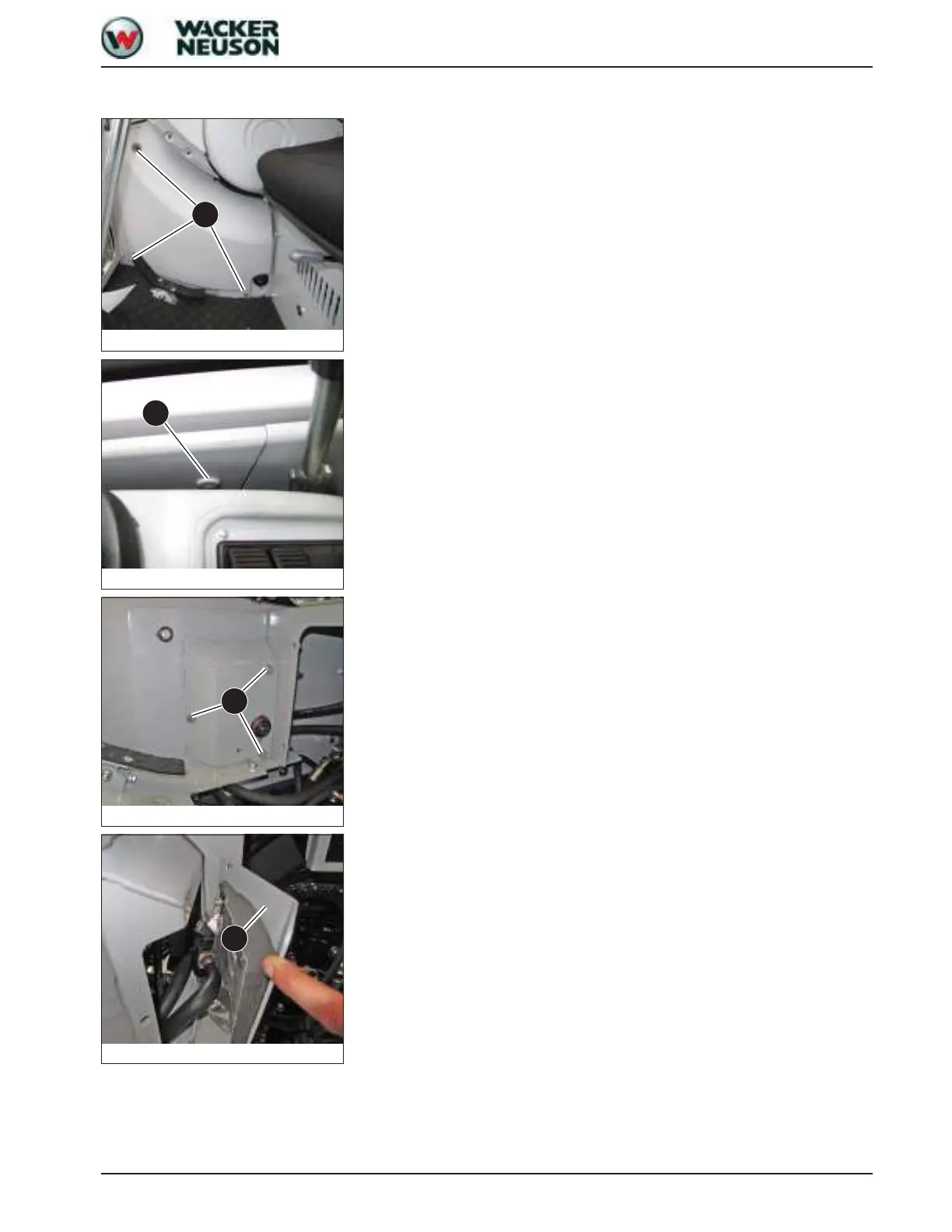

Fig. 29: Removing the covers
1
Fig. 30: Removing the body-bound rivet
2
Fig. 31: Slackening the fastening screws
3
Fig. 32: Removing the cover
4
