SHB 28Z3 EN – Edition 2.0 * 28z3s314.fm 3-43
Maintenance
Filling up hydraulic oil
Danger!
Removing the filler plug can cause oil to escape –
Danger of accidents!
☞ Open the breather filter carefully to slowly release the pressure inside the
tank.
Caution!
Do not fill up the hydraulic oil unless the engine is stopped. Otherwise,
hydraulic oil will overflow at the filler opening on the hydraulic tank.
• Park the machine on level ground
• Position the boom straight ahead.
• Lower the boom and the attachment to the ground.
• Extend the stabiliser blade ram. Lower the stabiliser blade to the ground
• Stop the engine
• Fold the control lever base up
• Remove the key and carry it with you
• Let the engine cool down
• Remove the tank cover
• Slowly open cap C of the hydraulic tank
• Fill up hydraulic oil
• Check the hydraulic oil level on sight glass B
• Fill up if necessary and check again
• Close cap C of the hydraulic tank hand tight again
• Install the tank cover

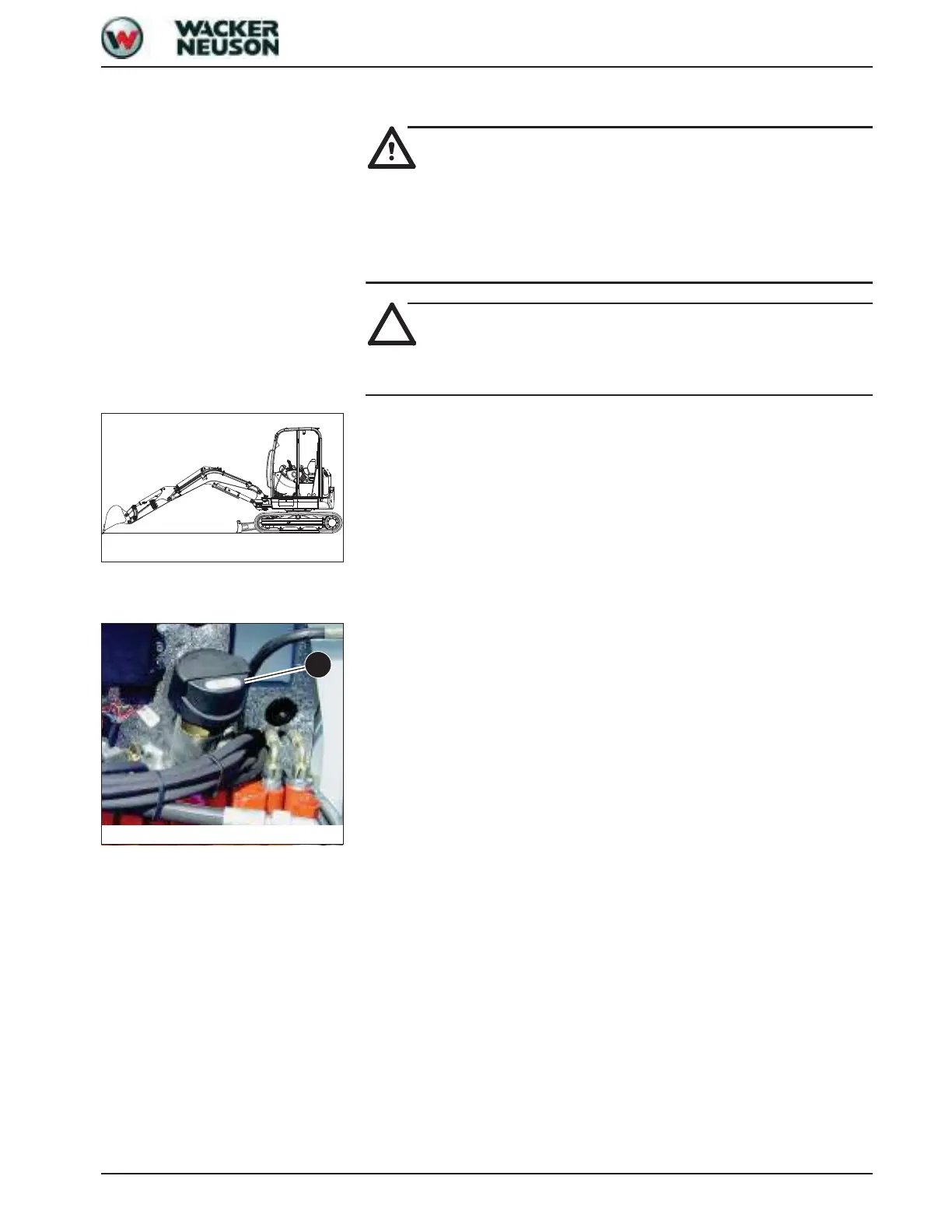

Fig. 49: Parking the machine
Fig. 50: Hydraulic tank cap
C
