SHB 28Z3 EN – Edition 2.0 * 28z3s314.fm 3-57
Maintenance
Lubrication point on ball bearing race of live ring
Danger!
Do not rotate the machine during lubrication!
Danger of severe crushing that can cause death or severe injury!
☞ – see chapter Parking the machine on page 3-52
☞ Stop and park the machine.
☞ Apply grease to lubrication points 11 with one stroke of the grease gun.
☞ Remove ejected grease.
☞ Turn the machine 90° at a time.
☞ Stop and park the machine.
☞ Apply grease to each of lubrication points 11 with one stroke of the grease gun.
☞ Remove ejected grease.
☞ Turn the machine 360° a few times.
Lubrication point of live ring teeth
Danger!
Do not rotate the machine during lubrication!
Danger of severe crushing that can cause death or severe injury!
☞ – see chapter Parking the machine on page 3-52
Caution!
Lubrication can be carried out over a pit only.

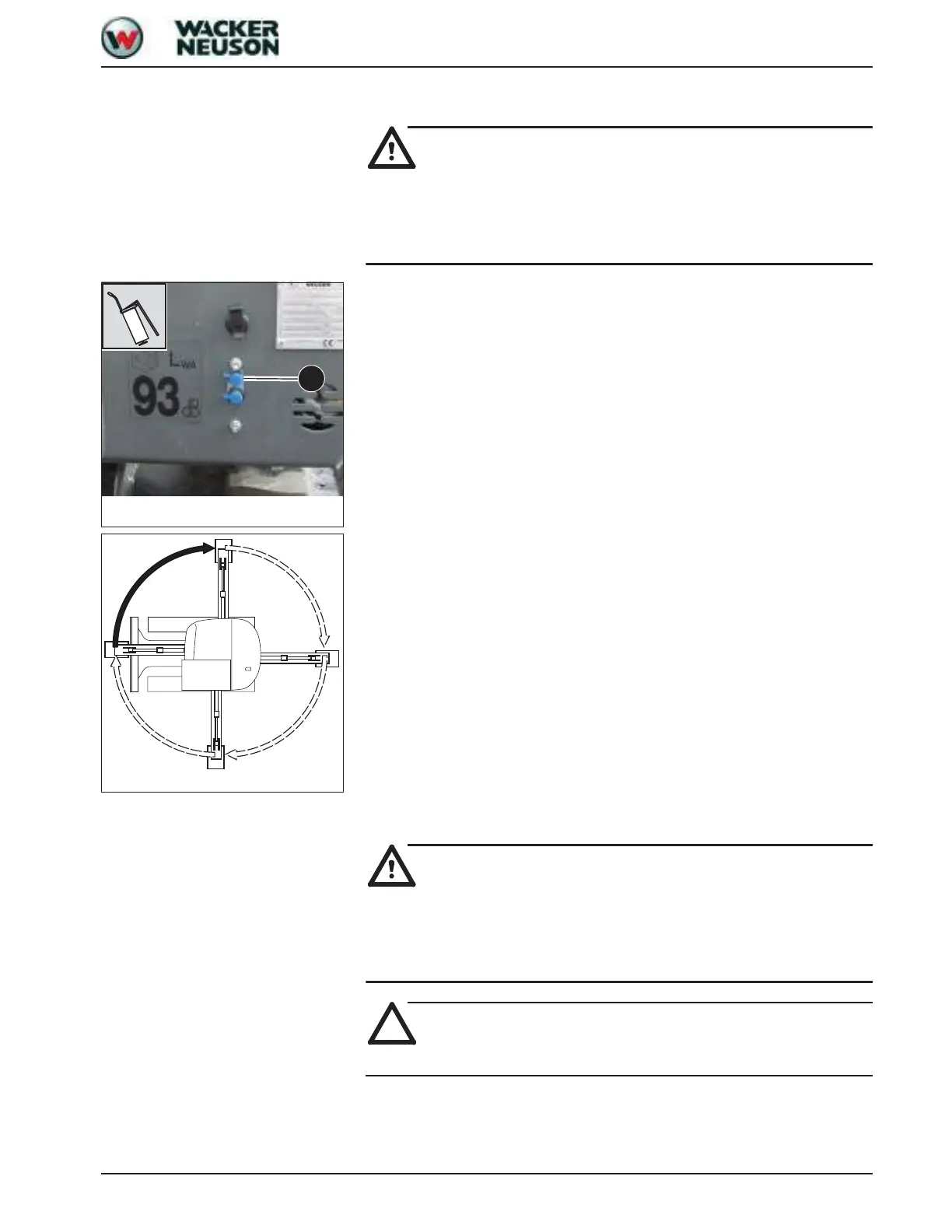

Fig. 79: Lubrication point on ball bearing race of live ring
11
Fig. 80: Turn the machine 90° at a time
