SHB 28Z3 EN – Edition 2.0 * 28z3s810.fm 8-29
PowerTilt PTS06
8.21 Securing the PowerTilt swivel device on the machine
☞ Lower the bucket to about 50 – 75 mm (2 – 3”) above the PowerTilt swivel device.
☞ Align the joint rods with the PowerTilt swivel device and insert the pivot pins.
☞ Slowly move the PowerTilt swivel device with the bucket and boom rams to a safe
height.
☞ Retract the bucket ram until the bucket and the PowerTilt swivel device can be
connected with the pins. If necessary turn the pins and fit the required securing parts.
8.22 Fitting a bucket or equipment onto the PowerTilt swivel device
Notice!
Fit a bucket or equipment onto the PowerTilt swivel device only when the hydraulic
circuit is installed and functions correctly.
☞ Fit the bucket mount onto the bucket or equipment.
☞ Pick up the bucket pin with the PowerTilt hook.
Caution!
Align the hook correctly!
☞ Prevent damage to the hook.
☞ Attach and secure the second pin.
☞ After fitting the bucket for the first time, adjust the set screw(s) at the back of the hook.
☞ Slacken the lock nut and turn the screw until it touches the pin.
☞ Secure the screw by tightening the locknut.
Notice!
The mounting pins can be aligned more easily by adjusting correctly when the
bucket is replaced.

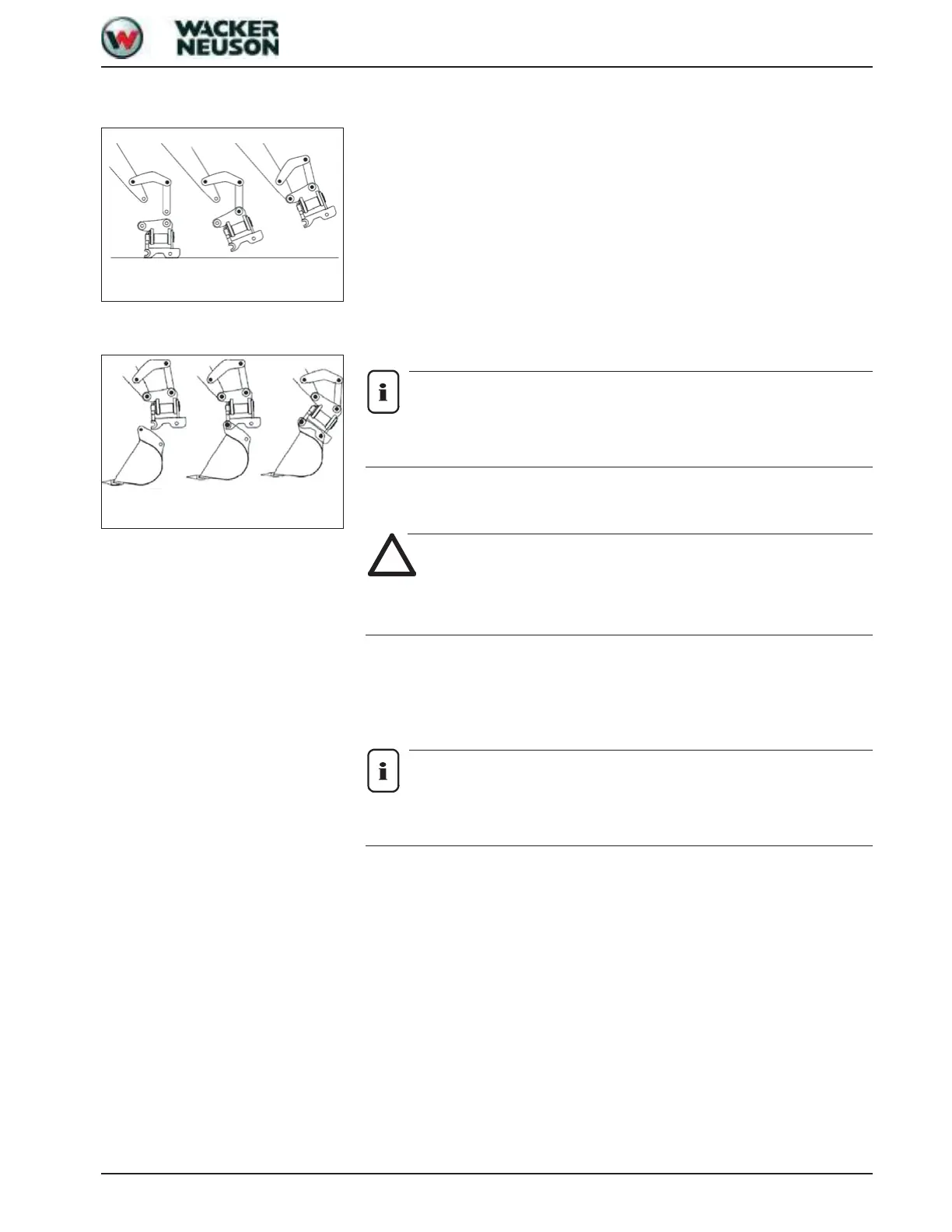

Fig. 80: PowerTilt installation
Fig. 81: Bucket or equipment installation
