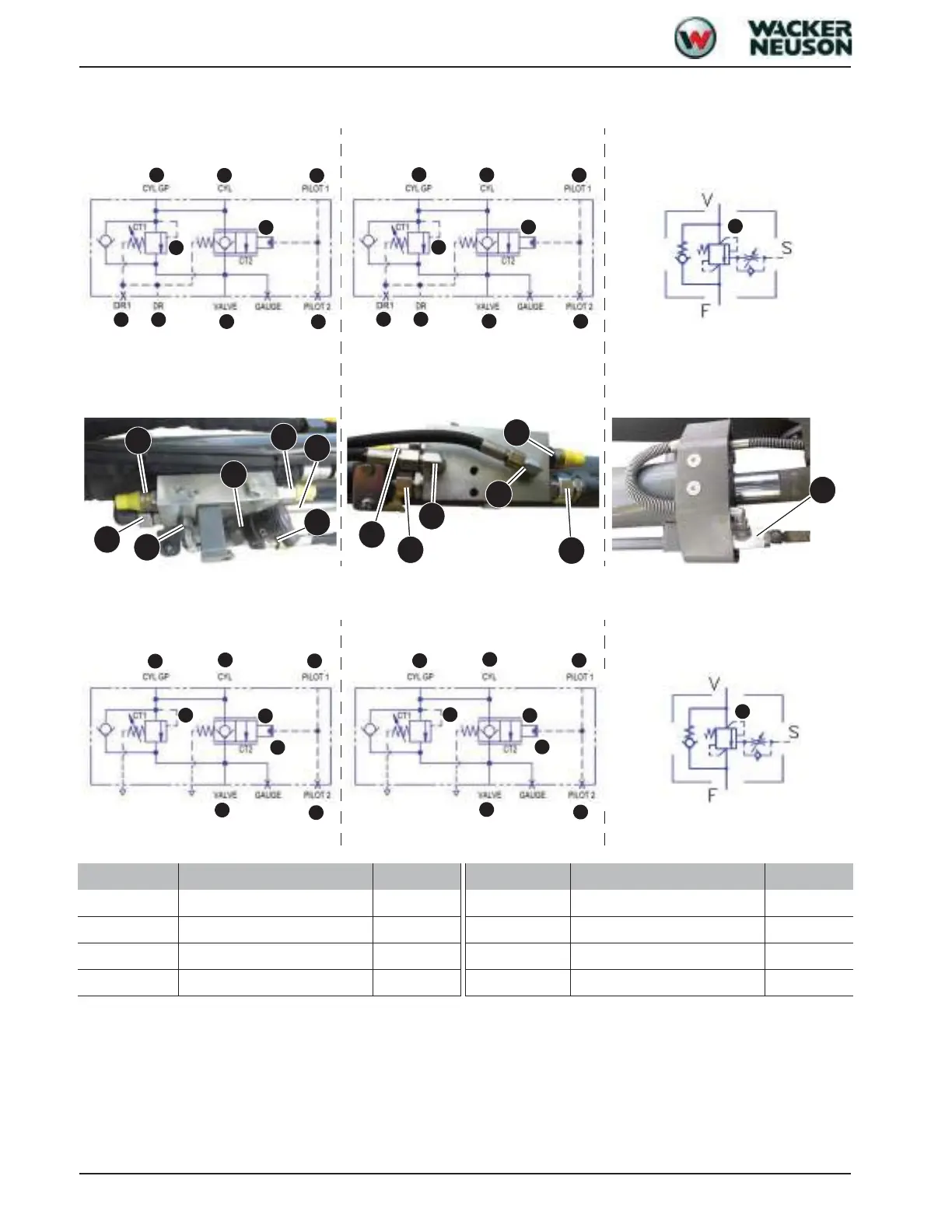

Wacker Neuson 28Z3 Service Manual

7-16 SHB 28Z3 EN – Edition 2.0 * 28z3s710.fm
Options
Diagram (serial nos. AG02444 to AG04827)
Diagram (up to serial no. AG02443)
Boom
Stick
1
2
6
3
5
4
3
7
2
5
1
Stabiliser blade
8
1
2
3
4
5
6
5
3
6
1
2
3
4
5
6
5
3
6
6
7
8
1
2
3
4
5
6
Boom
Stick
Stabiliser blade
6
3
1
2
3
4
5
6
6
3
8
Pos. Designation Port Pos. Designation Port
1
Safety valve
CT1 5
Tank line
DR
2
Directional valve
CT2 6
Raise/lower boom
V
3
Pilot control port
PILOT 7
Extend/retract stick
V
4
Pressure switch
GP 8
Non-return valve
