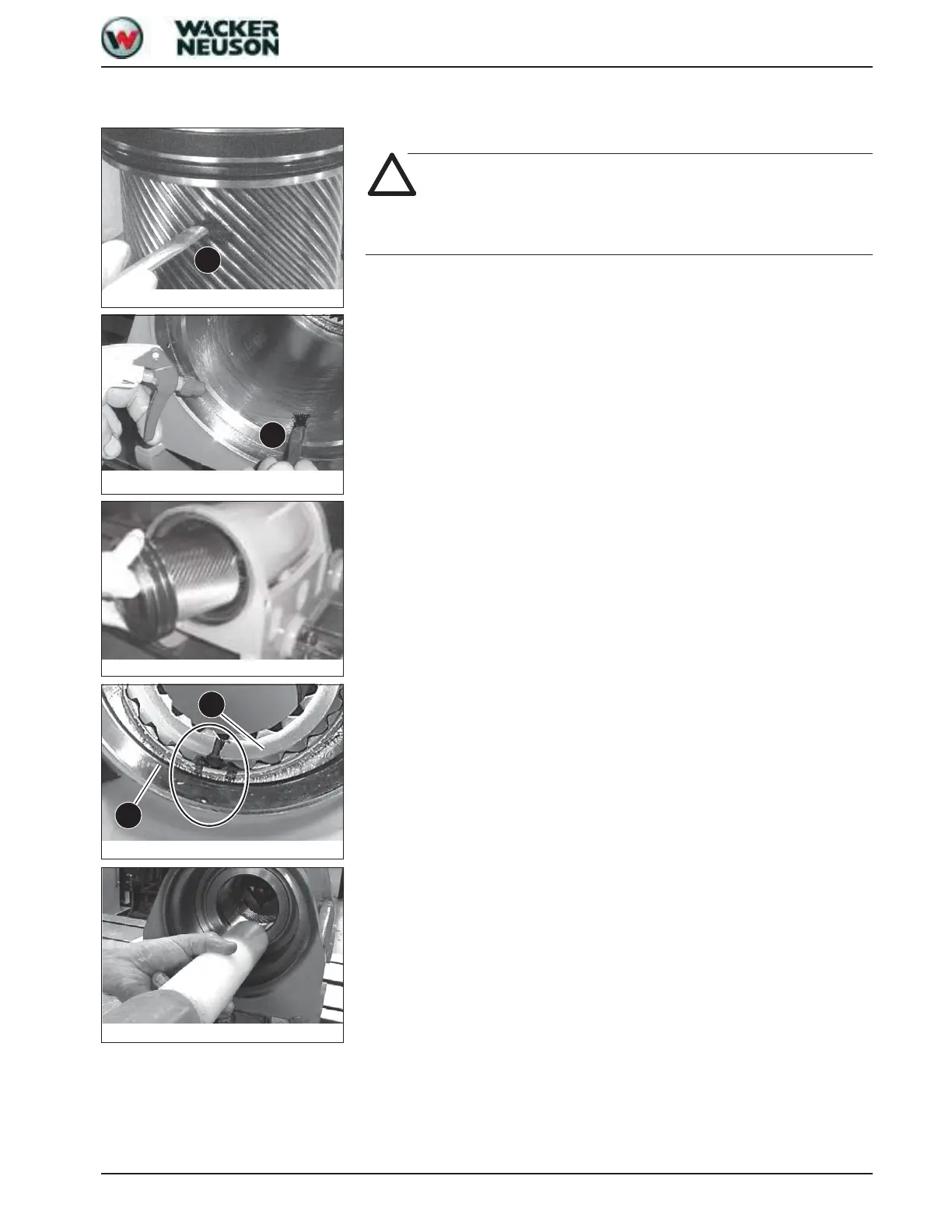

8.15 Installing the piston tube
☞ Apply a high-grade hydraulic oil to the piston and the housing bore with brush V.
Caution!
If this is not observed:
☞ Damage to seal
☞ Carefully push the piston tube into the housing until it makes contact with the ring gear.
☞ Turn the piston body until the dead centre marks of the piston and the housing are
aligned.
☞ With a plastic/rubber hammer and plastic drift, put the teeth of the piston in the ring
gear.
Fig. 46: Hydraulic oil on piston tube
V
Fig. 47: Hydraulic oil on the housing bore
V
Fig. 48: Fitting the piston tube
1
3
Fig. 49: Pay attention to the marks
Fig. 50: Fitting the piston tube
