SHB 28Z3 EN – Edition 2.0 * 28z3s314.fm 3-49
Maintenance
3.17 Travelling drive
Danger!
Immediately after stopping the engine, the engine's components and the oil
are very hot. This can cause burns.
If the inside of the drive gear is under pressure, the oil or the plug can be
squeezed out.
Danger of injury and scalding!
☞ Wait until the engine has cooled down before taking up work.
☞ Slowly open the plug to release the pressure.
Checking the oil level and filling up oil
☞ Stop the machine on firm, level and horizontal ground
☞ Place the machine so that filler plug A is at the top
☞ Stop the engine
☞ Let the engine cool down
☞ Fold the control lever base up
☞ Unscrew screws A and B (LEVEL) with a suitable tool
☞ A small quantity of oil must flow out of opening B (LEVEL)
➥ If the oil does not flow out of opening B (LEVEL), fill up oil:
☞ Fill in oil through opening A,
➥ until a small quantity of oil flows out of opening B (LEVEL)
☞ Screw screws A and B (LEVEL) back in again
☞ Move the machine a few metres
☞ Check the oil level again
➥ If the oil level is not correct:
☞ Repeat the procedure
Draining oil
☞ Park the machine on level ground
☞ Place the machine so that drain plug C (DRAIN) is at the bottom
☞ Stop the engine
☞ Let the engine cool down
☞ Fold the control lever base up
☞ Remove the ignition key and carry it with you
☞ Unscrew screws B (LEVEL) and C (DRAIN) with a suitable tool
➥ The oil now flows out of opening C (DRAIN)
☞ Use a suitable container to collect the oil as it drains
Collect the oil with a suitable container and dispose of it in an environmentally
friendly manner.

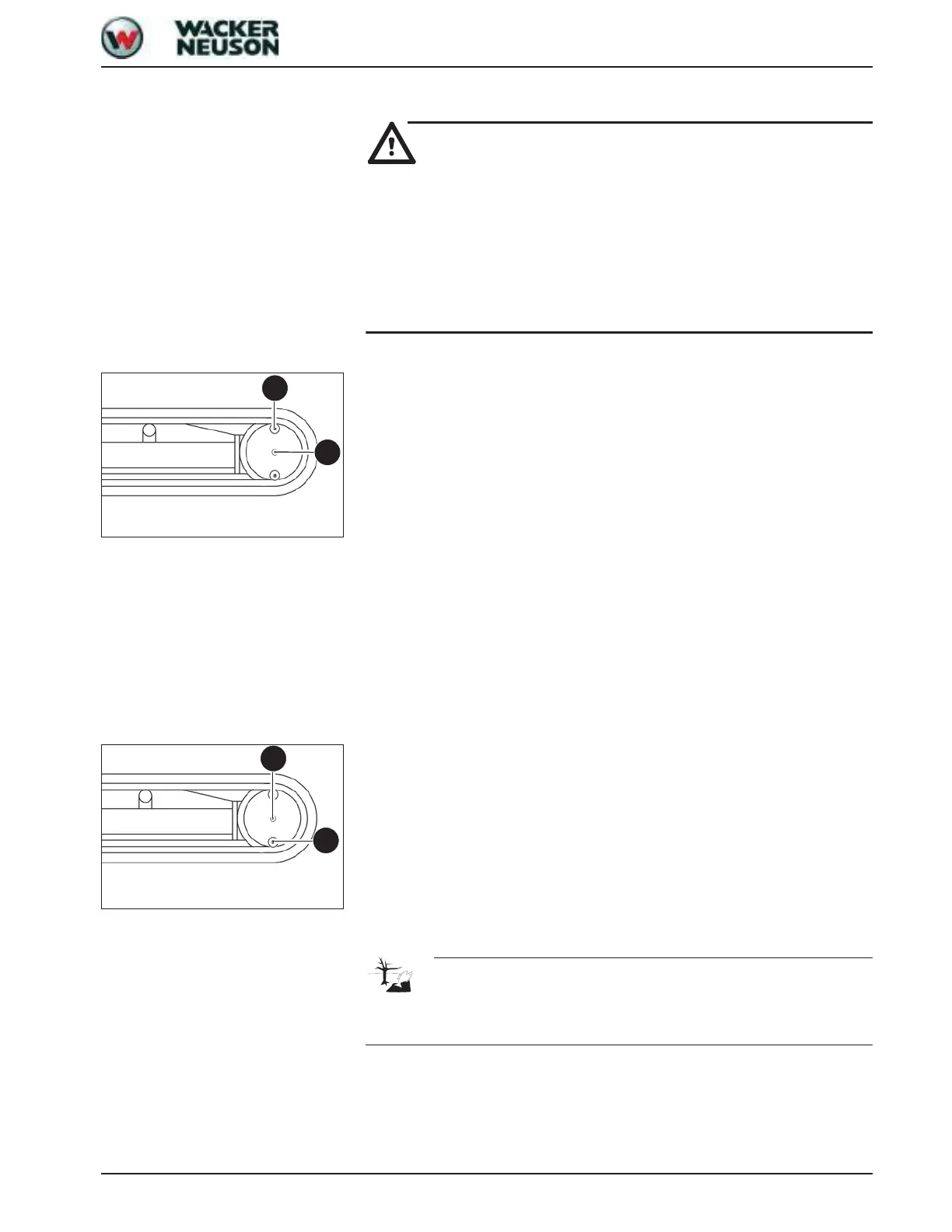

Fig. 57: Checking the oil level
A
B
