SHB 28Z3 EN – Edition 2.0 * 28z3s510.fm
5-23

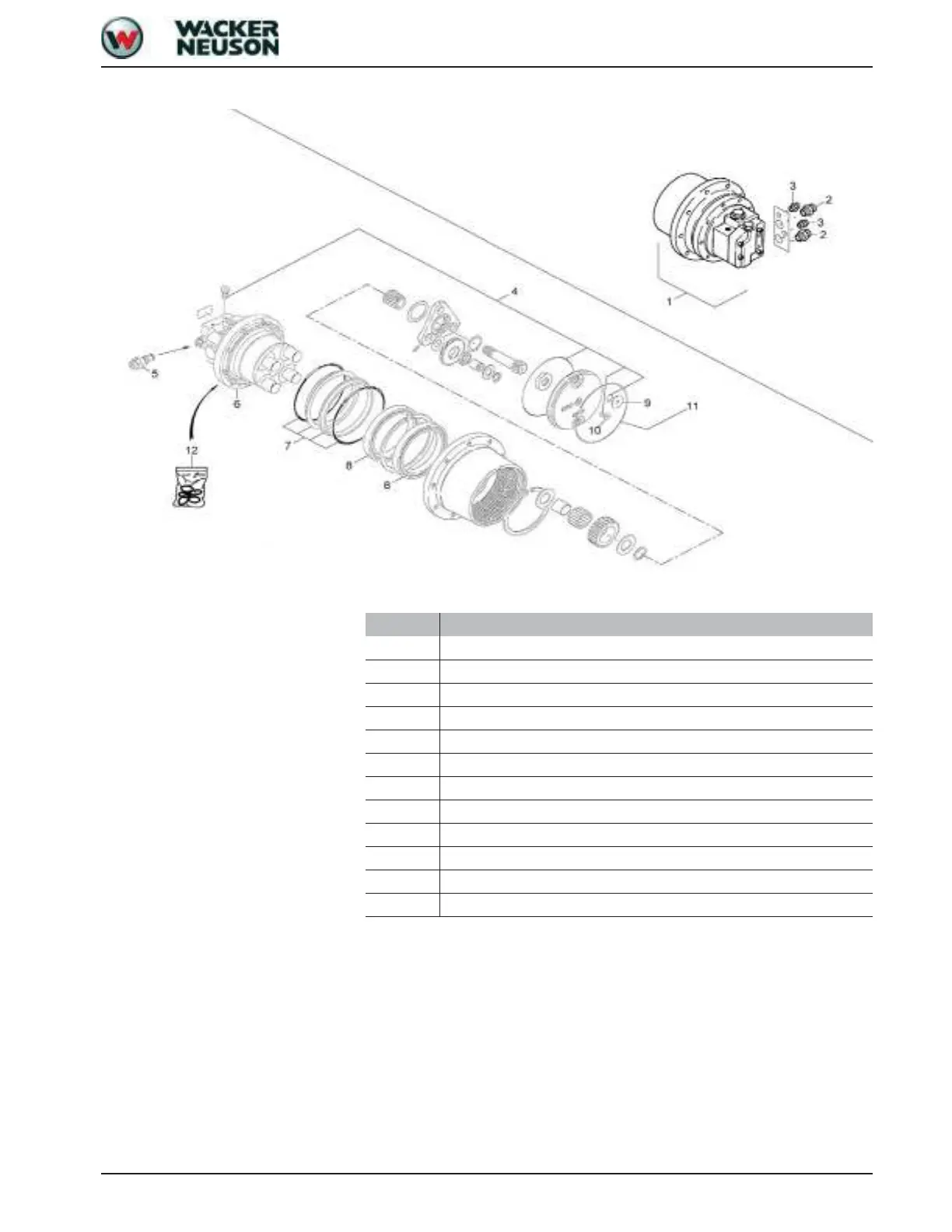

Hydraulic system
Pos.
Designation
1
Travelling drive
2
Screw connection
3
Screw connection
4
O-ring set
5
Brake cartridge
6
Hydraulic motor
7
Lifetime seal
8
Bearing
9
Plug
10
Plug
11
Snap ring
12
Hydraulic motor sealing kit
