Wacker Neuson 28Z3 Service Manual

1-6 SHB 28Z3 EN – Edition 2.0 * 28z3s110.fm
Operation
Engine number
The type label (arrow) is located on the valve cover (engine).
Hydraulic pump number
The type label is located on the hydraulic pump housing.
Main valve block number
The type label (arrow) is located on the lower side of the main valve block.
Travelling drive number
The type label (arrow) is located on the travelling drive.
Swivel unit number
The type label (arrow) is located on top of the gear motor.

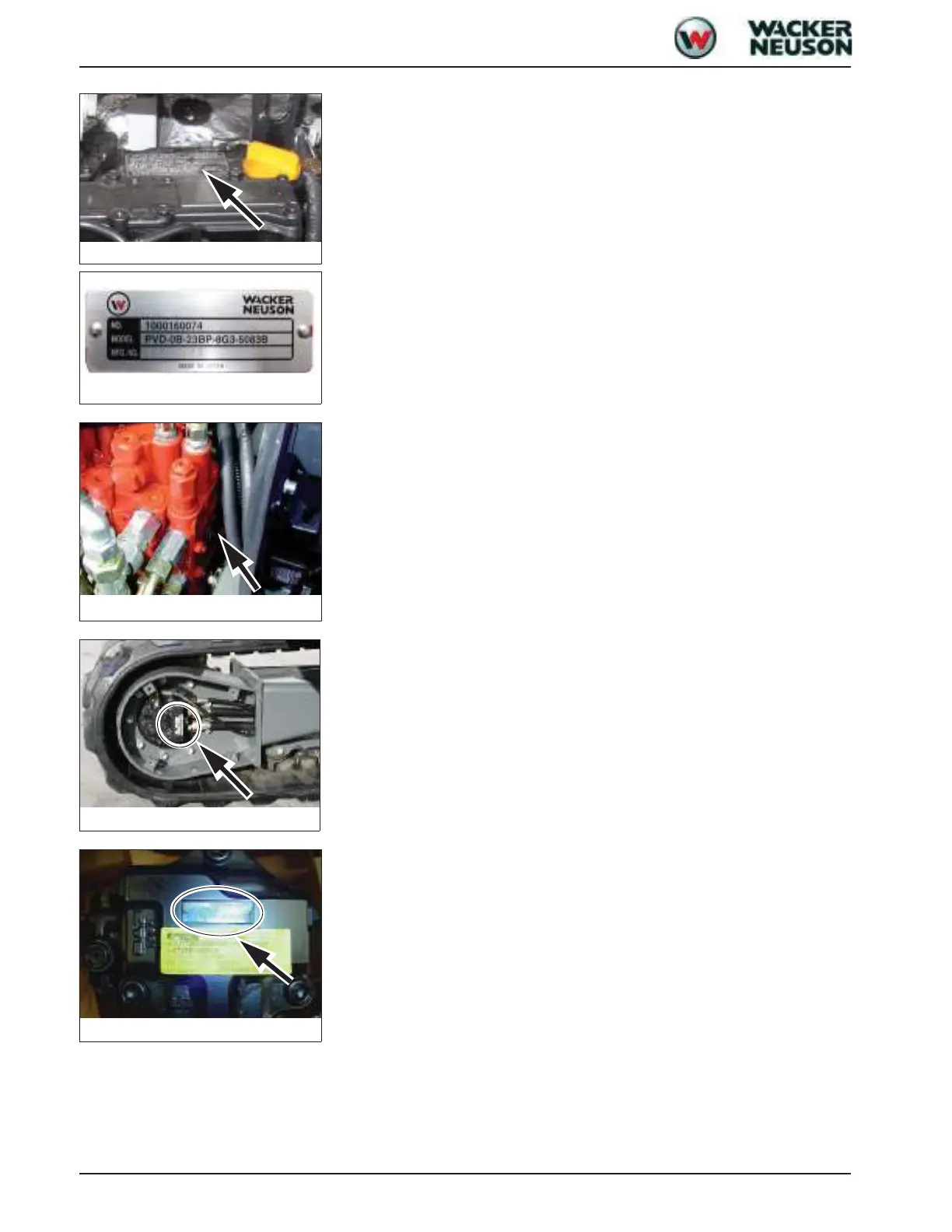

Fig. 4: Diesel engine number
Fig. 5: Hydraulic pump type label
Fig. 6: Main valve block type label
Fig. 7: Travelling drive type label
Fig. 8: Swivel unit type label
